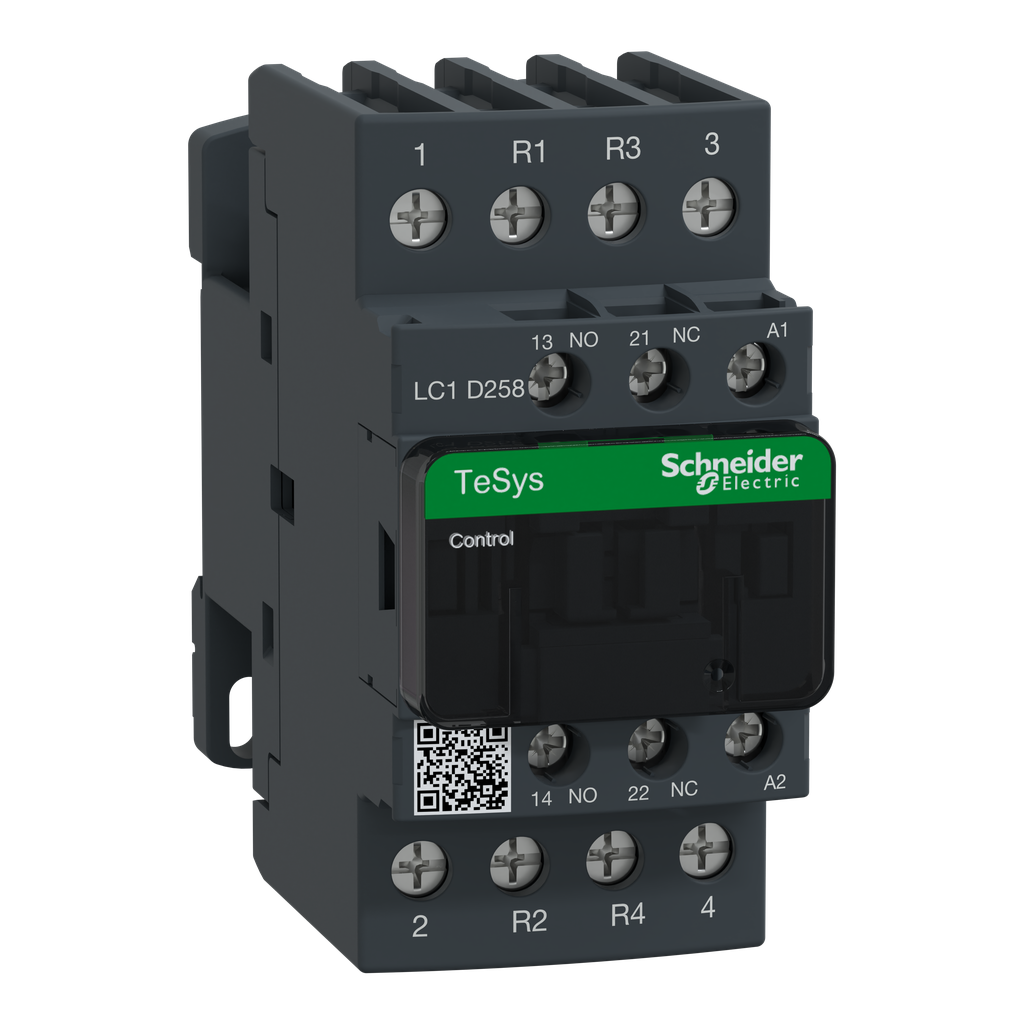

Schneider Electric LC1D258M7 SQUARED IEC contactor, Te 220 VAC 50/60 Hz coil

Product Description

Schneider Electric LC1D258M7 is a TeSys D IEC contactor designed for integration into control systems. This product creates motor starters suitable for various applications, rated for inductive motor use up to one hundred fifty full-load amps and resistive loads up to two hundred amps. The contactor features four poles and can be mounted on a DIN rail or directly on panels, making it versatile for installation. It includes two normally open and two normally closed power contacts, rated for forty amps.

• 220 VAC coil for high compatibility
• Includes built-in auxiliary contact
• Certified to multiple international standards

Product Highlights

This 4.13 inches tall, 1.77 inches wide, and 3.90 inches deep contactor weighs 0.94 lbs. It meets UL, CSA, IEC, CCC, EAC, and Marine standards, ensuring reliable operation in various environments. Moreover, it adheres to RoHS and REACh requirements as a Green Premium product.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D258M7

Technical Specifications

• Operating Voltage: 300 Volt
• Coil Voltage: 220 V AC 50/60 Hz
• Rated Current: 40 A at resistive load
• Application: Motor starters, resistive load
• Height: 4.13 inches
• Width: 1.77 inches
• Depth: 3.90 inches
• Weight: 0.94 lbs
