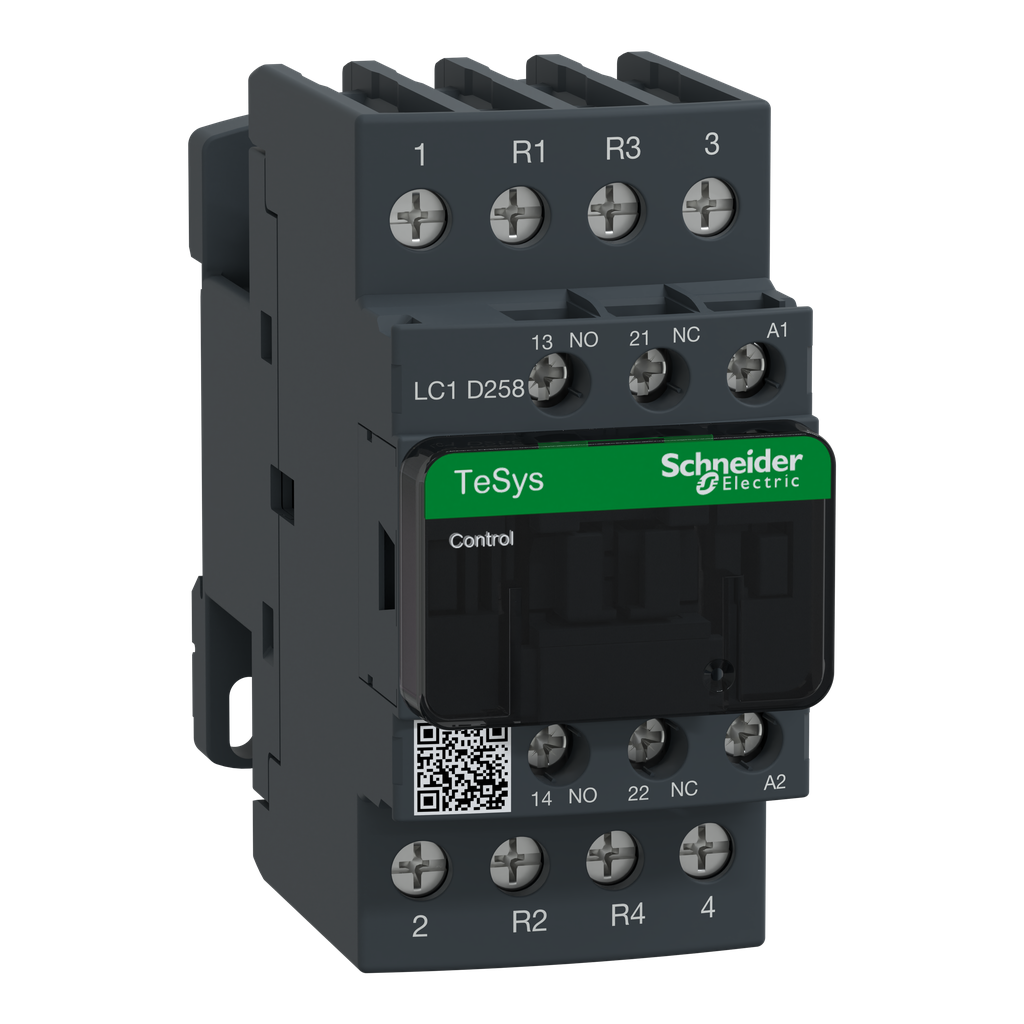

Schneider Electric LC1D258G7 600 VAC 25 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric's LC1D258G7 is a robust 600 Volt AC contactor. It is designed for motor control applications, including starting and stopping motors. The contactor can handle full loads of up to twenty-five amperes, making it ideal for various industrial uses.

• 120 VAC 50/60 Hz coil voltage allows for versatile applications.
• Four-pole design with two normally open and two normally closed contacts.
• Mountable on DIN rail or directly on a panel.

Product Highlights

This contactor is made for integration into various control systems and is suitable for creating motor starters for a wide range of applications. It features a durable construction that meets various safety and environmental standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D258G7

Technical Specifications

• Voltage: 120 VAC
• Current Rating: 25A inductive / 40A resistive
• Dimensions: 4.13 inches tall, 1.77 inches wide, 3.90 inches deep
• Weight: 0.94 lbs
• Certification: UL, CSA, IEC, CCC, EAC
• RoHS Compliant: Yes
• Operating Temperature: -40 to 70 degrees C
