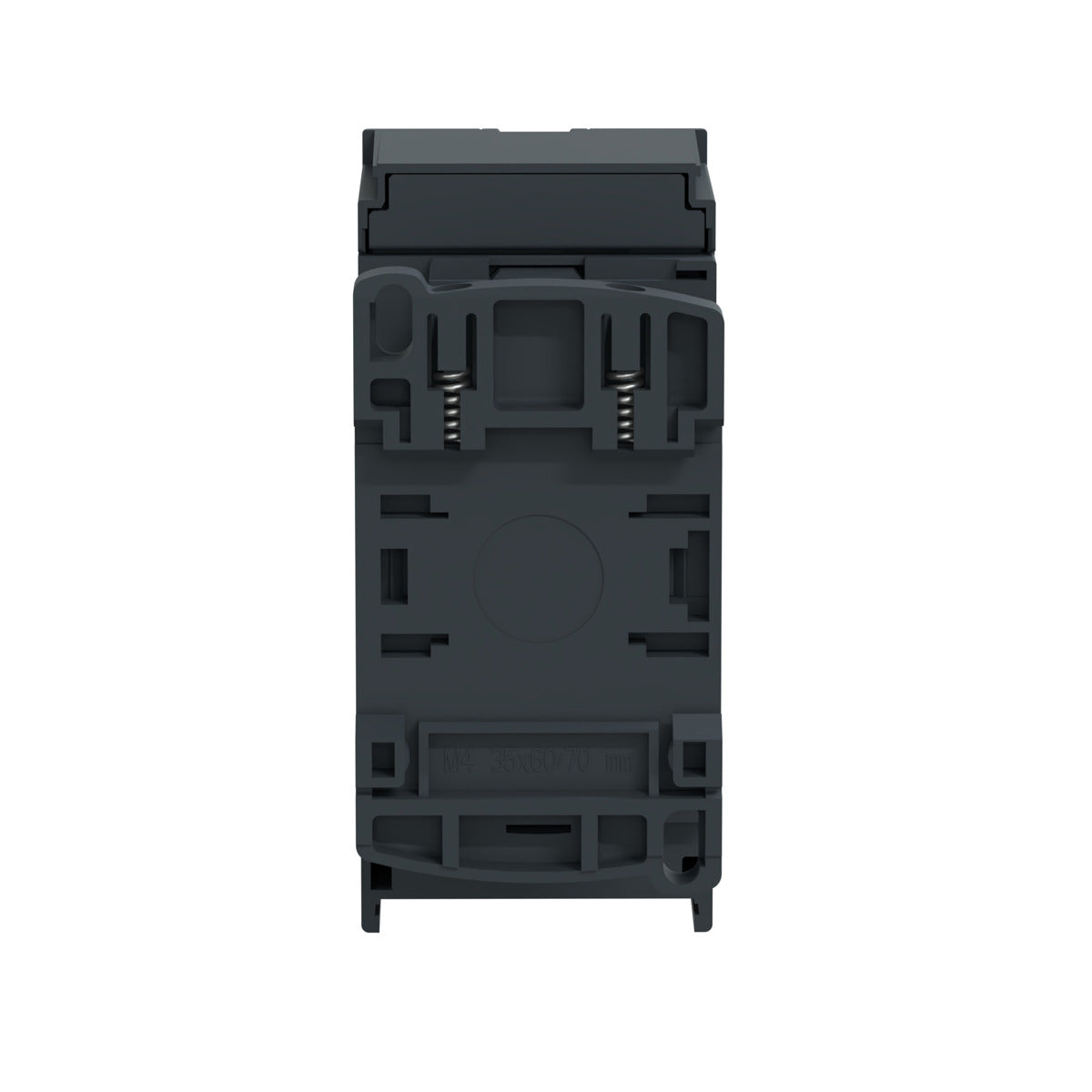

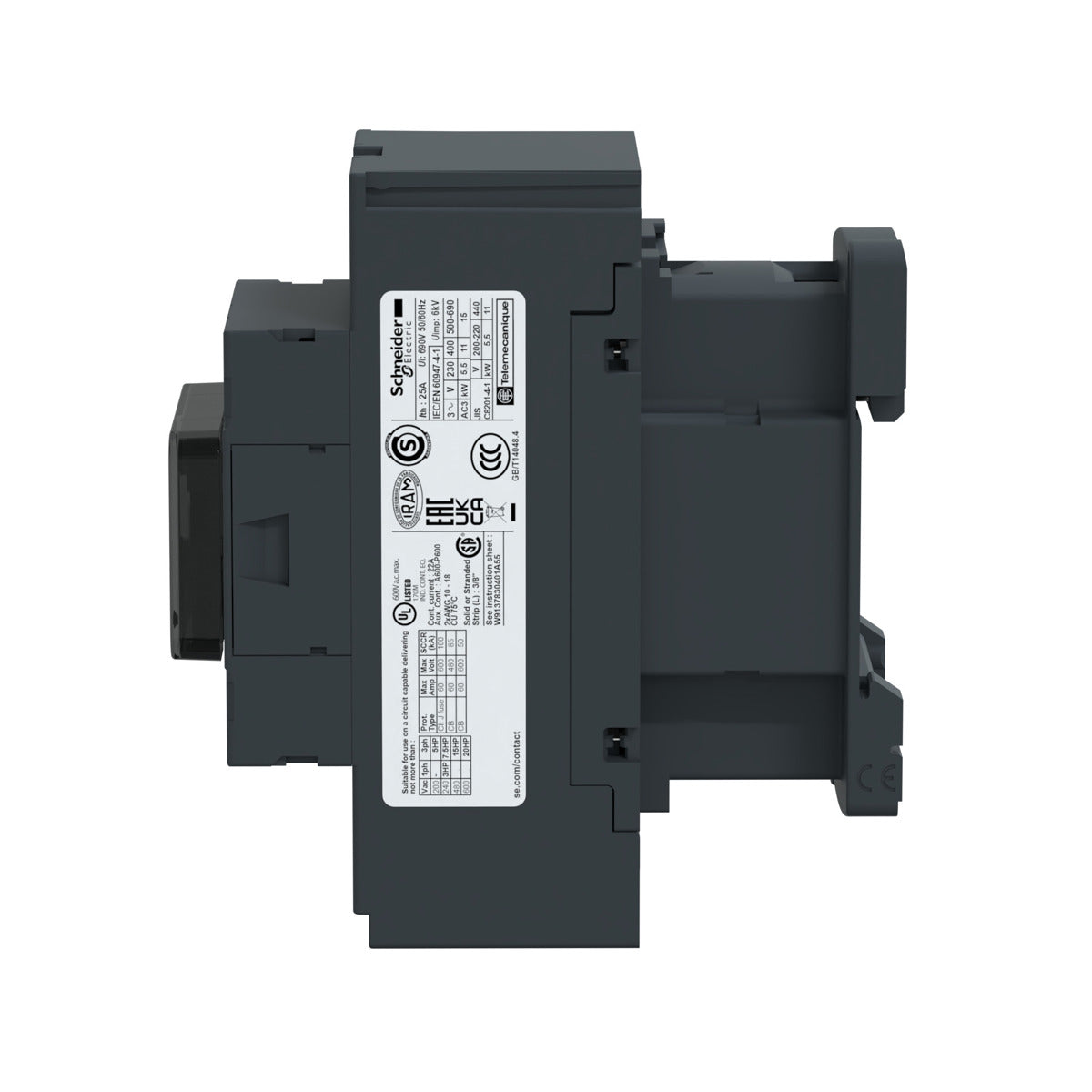

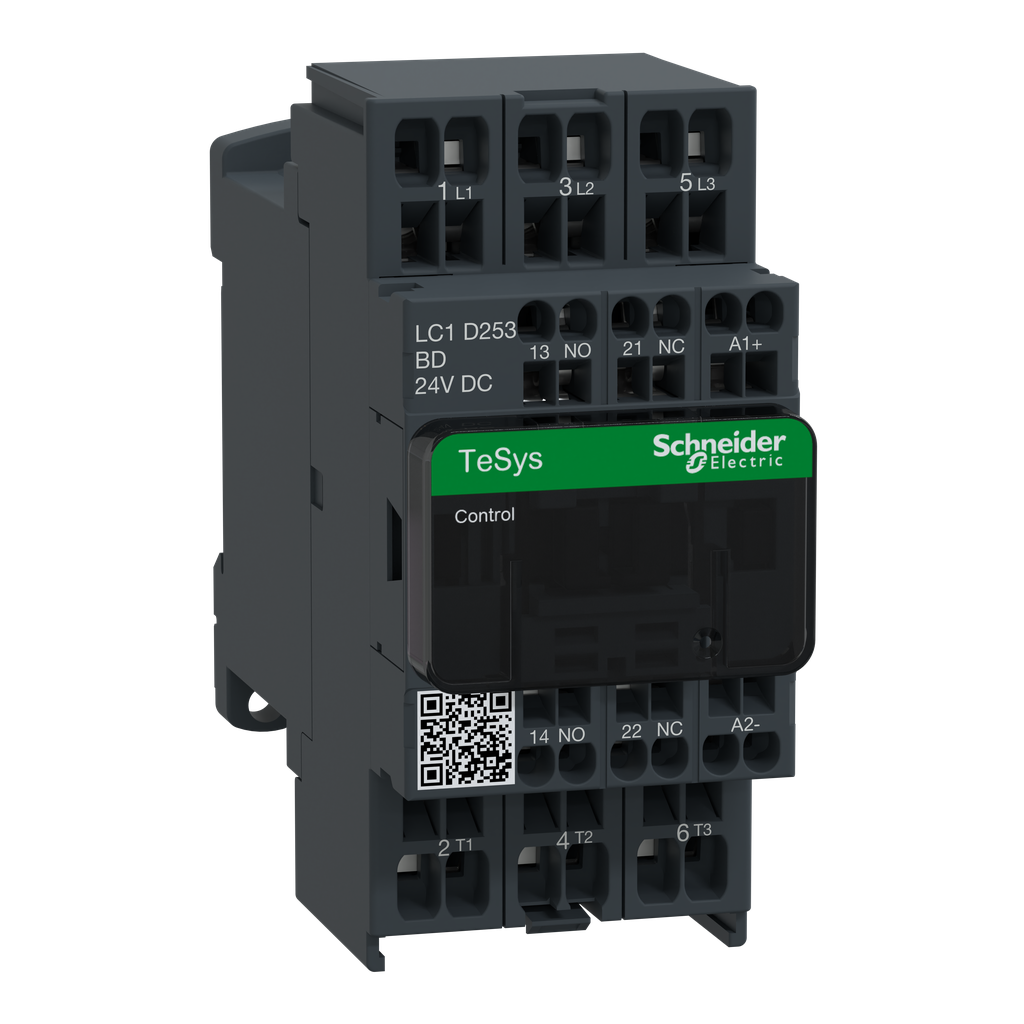

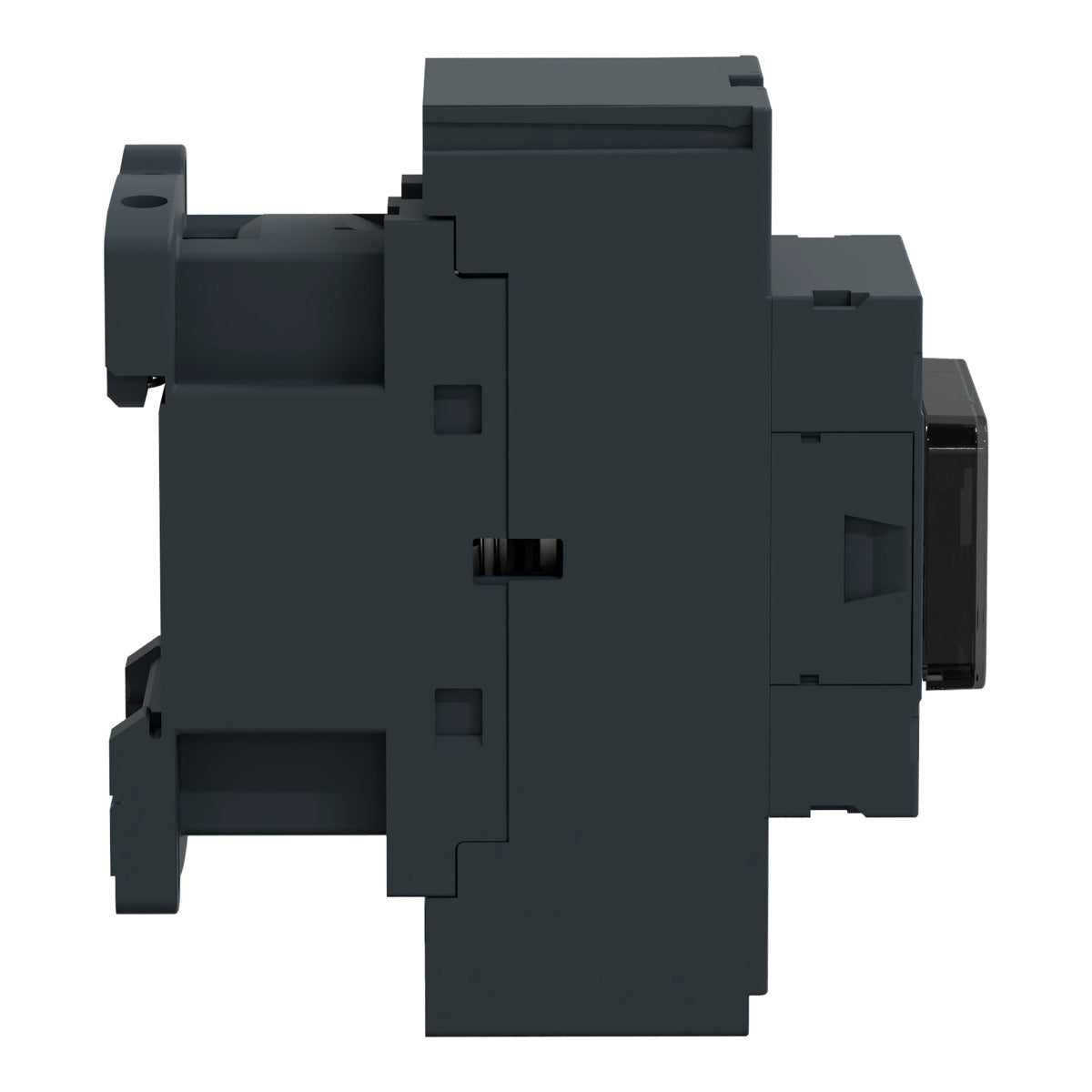

Schneider Electric LC1D253BD Square D 600 VAC 25 Amp 3-Pole Contactor

Product Description

The Schneider Electric LC1D253BD is a 600 VAC, 25 Amp, 3-Pole, full voltage non-reversing IEC contactor. Designed for integration into control systems, this device is suitable for creating motor starters in a variety of applications. This contactor supports both inductive and resistive loads, accommodating up to 150 full-load amps and 200 amps respectively. It can be easily mounted on a DIN rail or directly to a panel.

• Rated for 7.5HP at 200 to 208VAC
• Includes one normally open and one normally closed auxiliary contact
• Coil voltage rated at 24 VDC with transient suppressor

Product Highlights

The LC1D253BD features spring terminals for load and auxiliary connections, ensuring secure and reliable performance. Its compact design allows for efficient use of space in control panels.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: LC1D253BD
• Voltage Rating: 600 VAC
• Amperage Rating: 25 Amps
• Coil Voltage: 24 VDC
• Dimensions: 3.90 inches tall, 1.77 inches wide, 3.98 inches deep
• Weight: 1.17 lbs
• Country of Origin: Indonesia
• Warranty: 18 months
• Operating Temperature: -40 to 70 degrees C
• Certifications: UL, CSA, IEC, CCC, EAC, Marine
