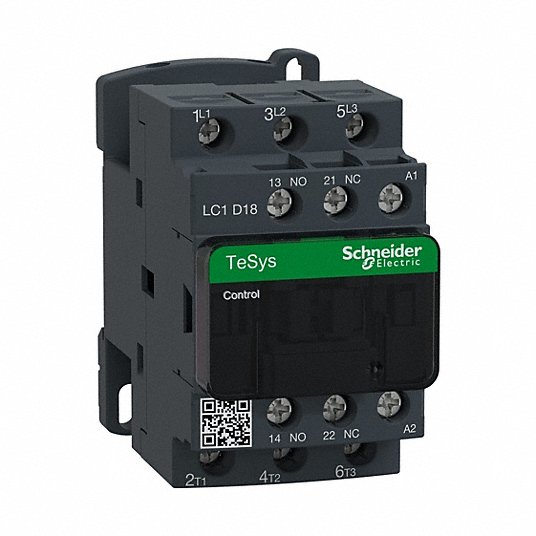

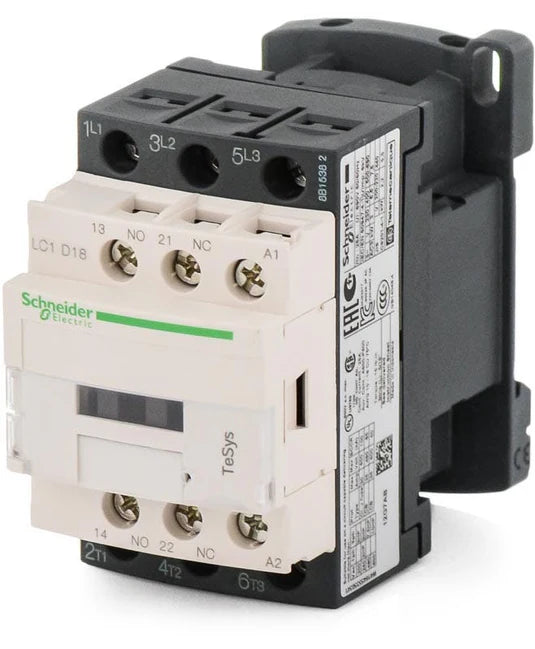

SCHNEIDER ELECTRIC LC1D18G7 IEC Magnetic Contactor Non-Reversing 3 Poles 18 A 120V AC Coil

Product Description

The SCHNEIDER ELECTRIC LC1D18G7 is a non-reversing IEC contactor designed to connect and disconnect power to motors and high-current equipment. This durable contactor has three poles and operates at a full load current of eighteen amps, with a coil voltage of one hundred twenty volts AC. It features auxiliary contacts including one normally open and one normally closed contact.

• Connects and disconnects power to motors
• Suitable for high-current equipment and machinery
• Can be paired with overload relays for motor load starters

Product Highlights

This contactor supports continuous operation and safety in electrical systems.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: LC1D18G7

Technical Specifications

• Series: TeSys Deca
• Contactor Style: IEC
• Number of Poles: 3
• Auxiliary Contacts Included: 1NO/1NC
• Full Load Current: 18 A
• Coil Voltage: 120V AC
• Maximum Voltage Rating: 690V AC
• Overall Height: 3.03 inches
• Overall Width: 1.77 inches
• Overall Depth: 3.39 inches
• Mechanical Operating Durability: 15,000,000
• Electrical Operating Durability: 1,000,000
• Minimum Operating Temperature: -40 °F
• Maximum Operating Temperature: 140 °F
