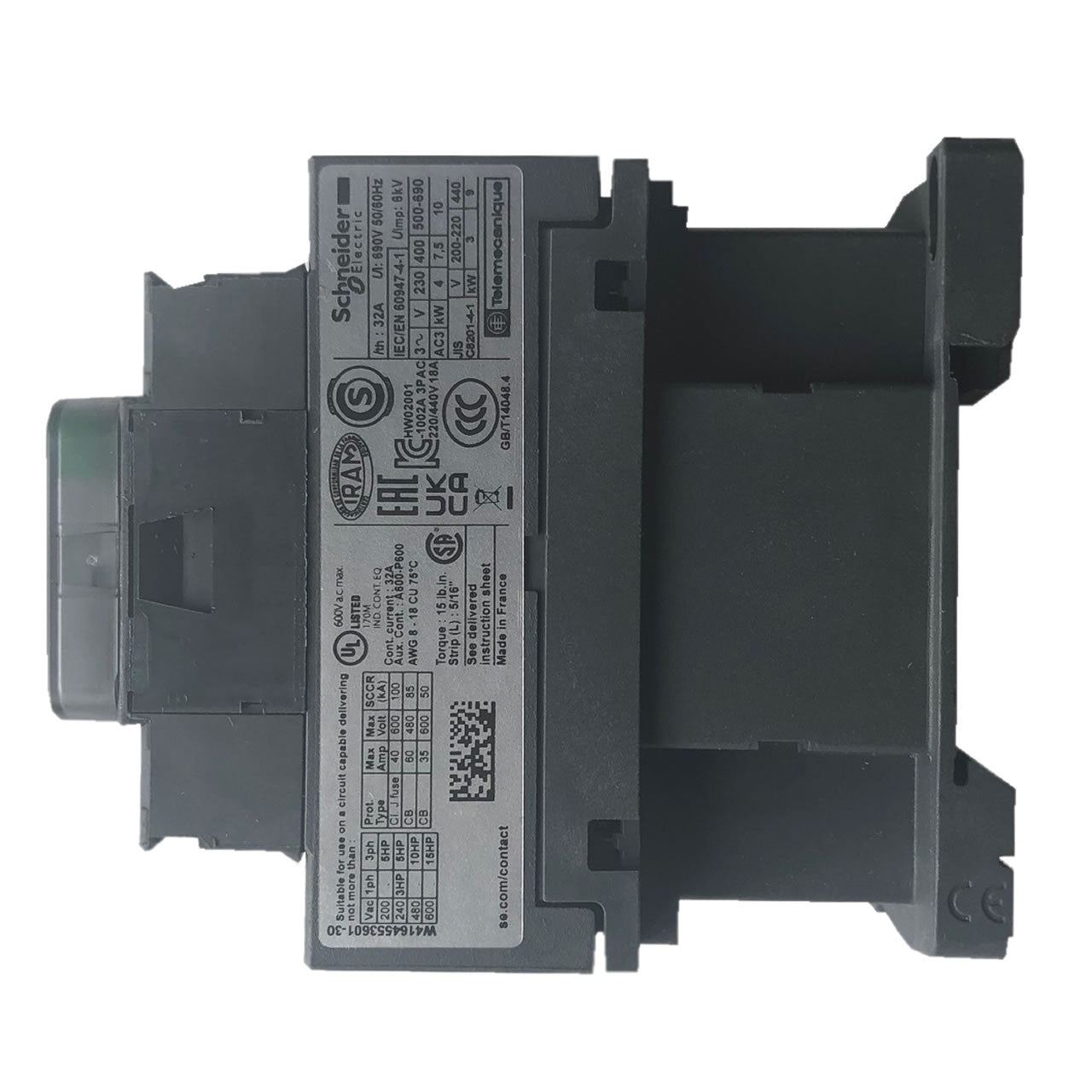

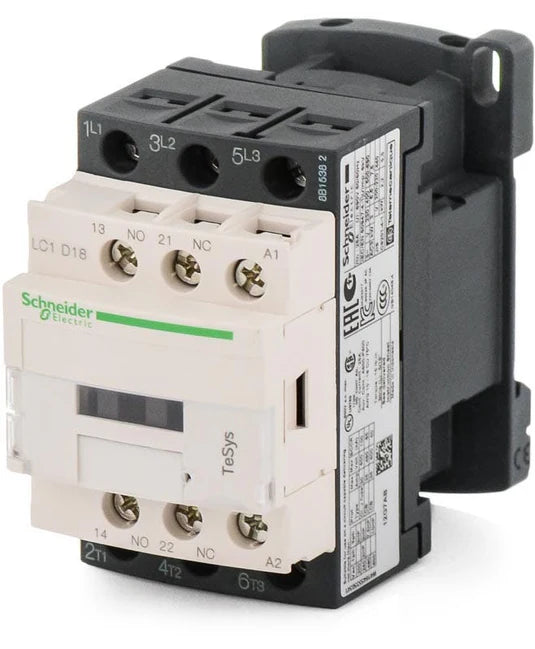

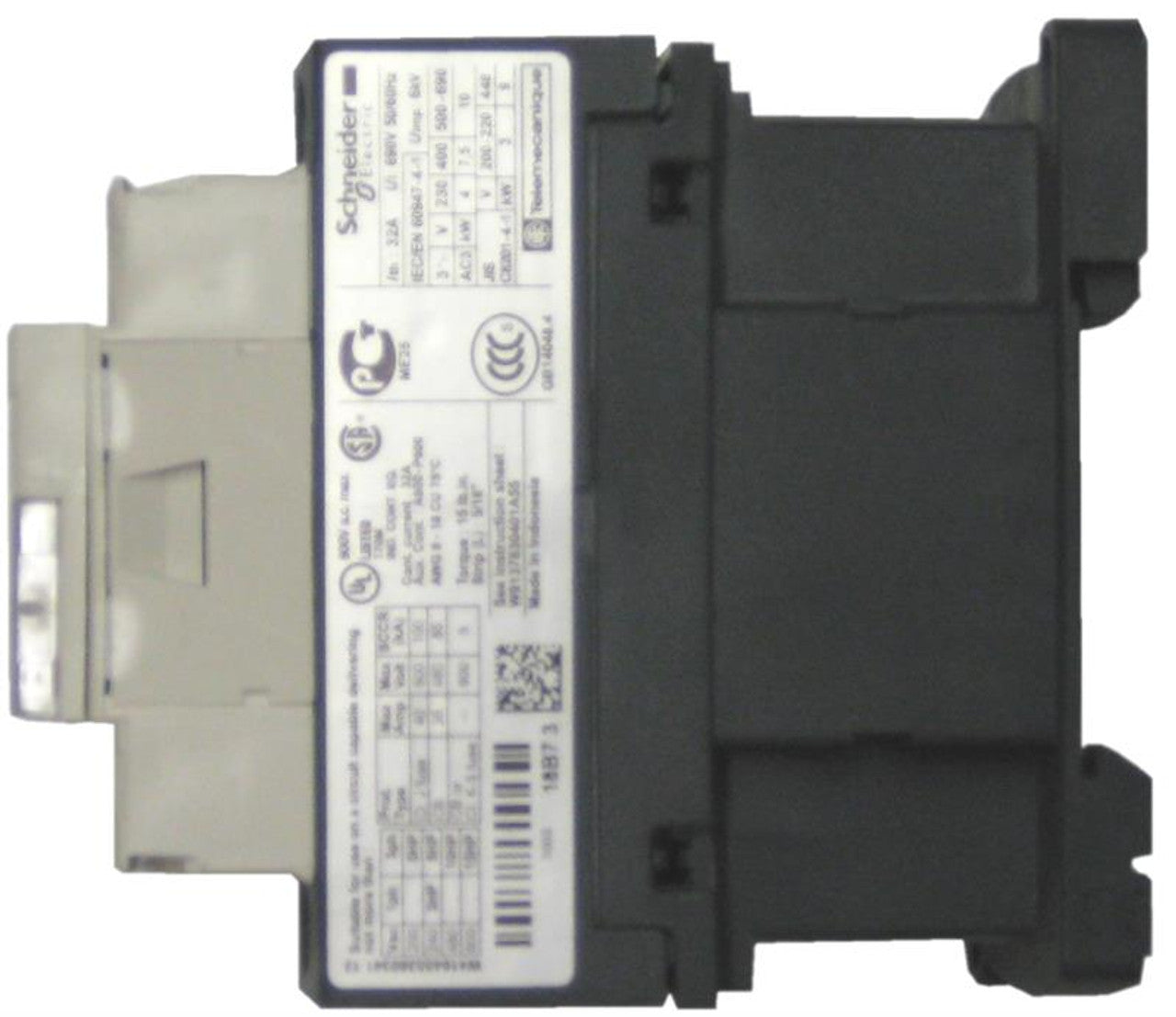

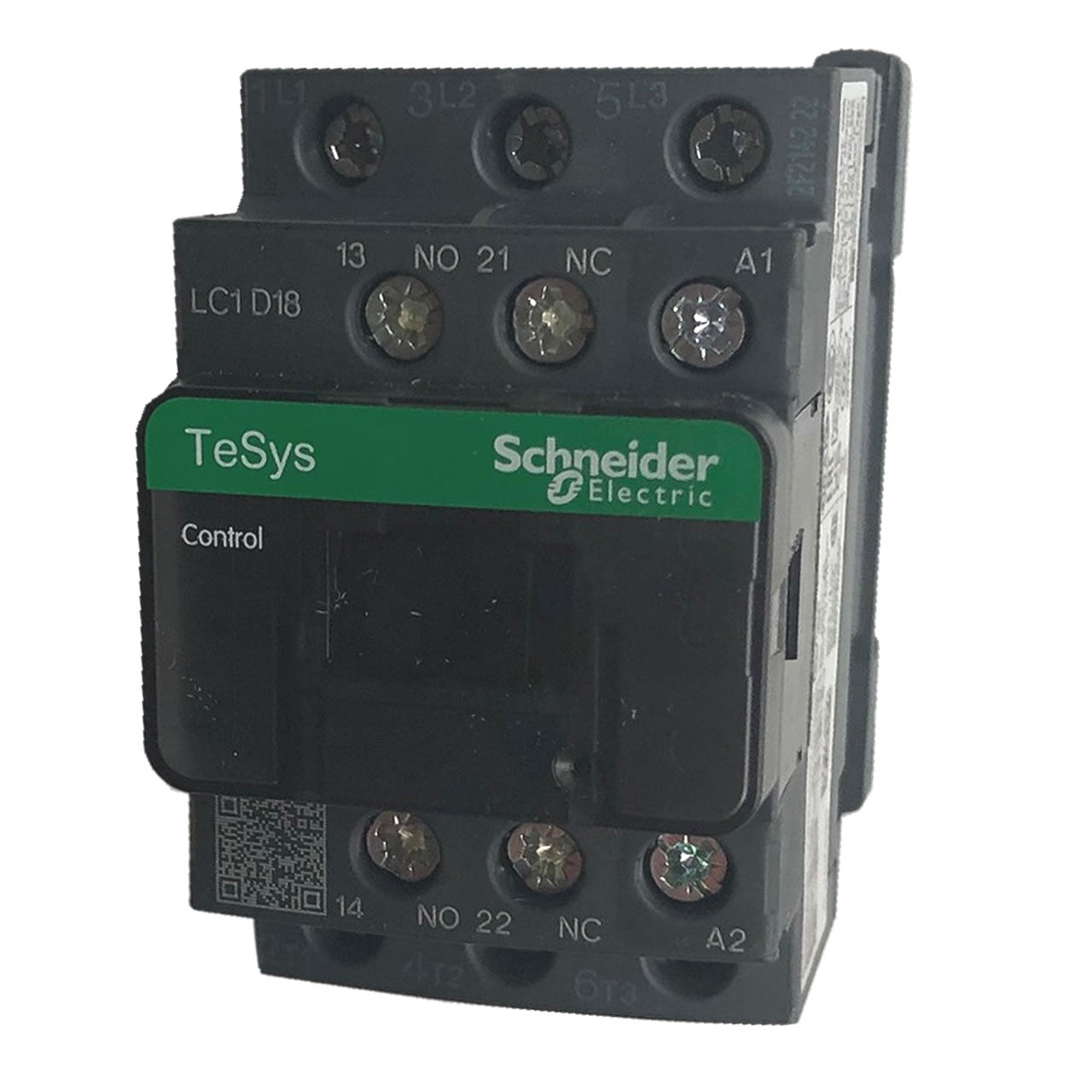

Schneider Electric LC1D18F7 3 Pole Contactor 18 AMP 110 Volt AC

Product Description

The Schneider Electric LC1D18F7 is a 3 pole contactor designed for reliability in various electrical applications. It supports a maximum rating of eighteen amps for AC-3 and thirty-two amps for AC-1, making it suitable for controlling motors and resistive loads.

• Coil voltage of 110 volts AC, compatible with standard industrial applications.
• Includes 1 normally open and 1 normally closed auxiliary contact for added functionality.
• Mounts directly onto a standard thirty-five millimeter DIN rail for easy installation.

Product Highlights

This contactor is crafted to handle inductive motor applications effectively. It provides essential overload protection for motors rated up to one hundred horsepower at four hundred eighty volts.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D18F7

Technical Specifications

• AMP Rating: 18 AMP AC-3, 32 AMP AC-1
• Coil Voltage: 110 volt AC
• Horsepower: 5 H.P. @ 230 volt, 10 H.P. @ 460 volt
• Auxiliary Contacts: 1 normally open (NO) & 1 normally closed (NC)
• Terminals: Screw
• AC Coil Voltage: 110V 50/60Hz
• Max. Inductive Amps (AC3): 18A
• Max. Resistive Amps (AC1): 32A
• Rated Voltage: 690V AC
• Dimensions: 3.03 inches tall, 1.77 inches wide, 3.39 inches deep
• No. of Poles: 3
• IP Rating: IP20 front face IEC 60529
• Contactor Type: Non-Reversing
