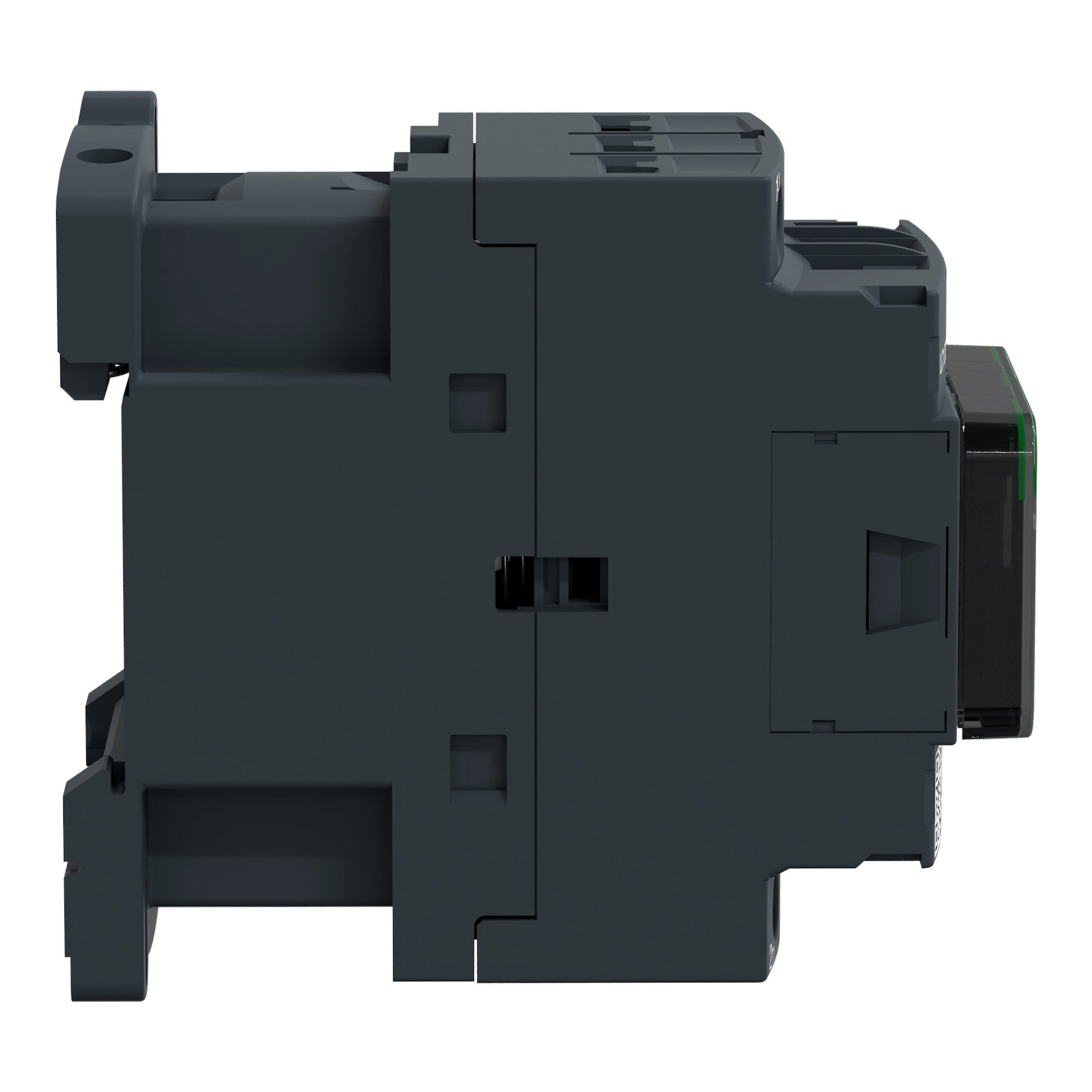

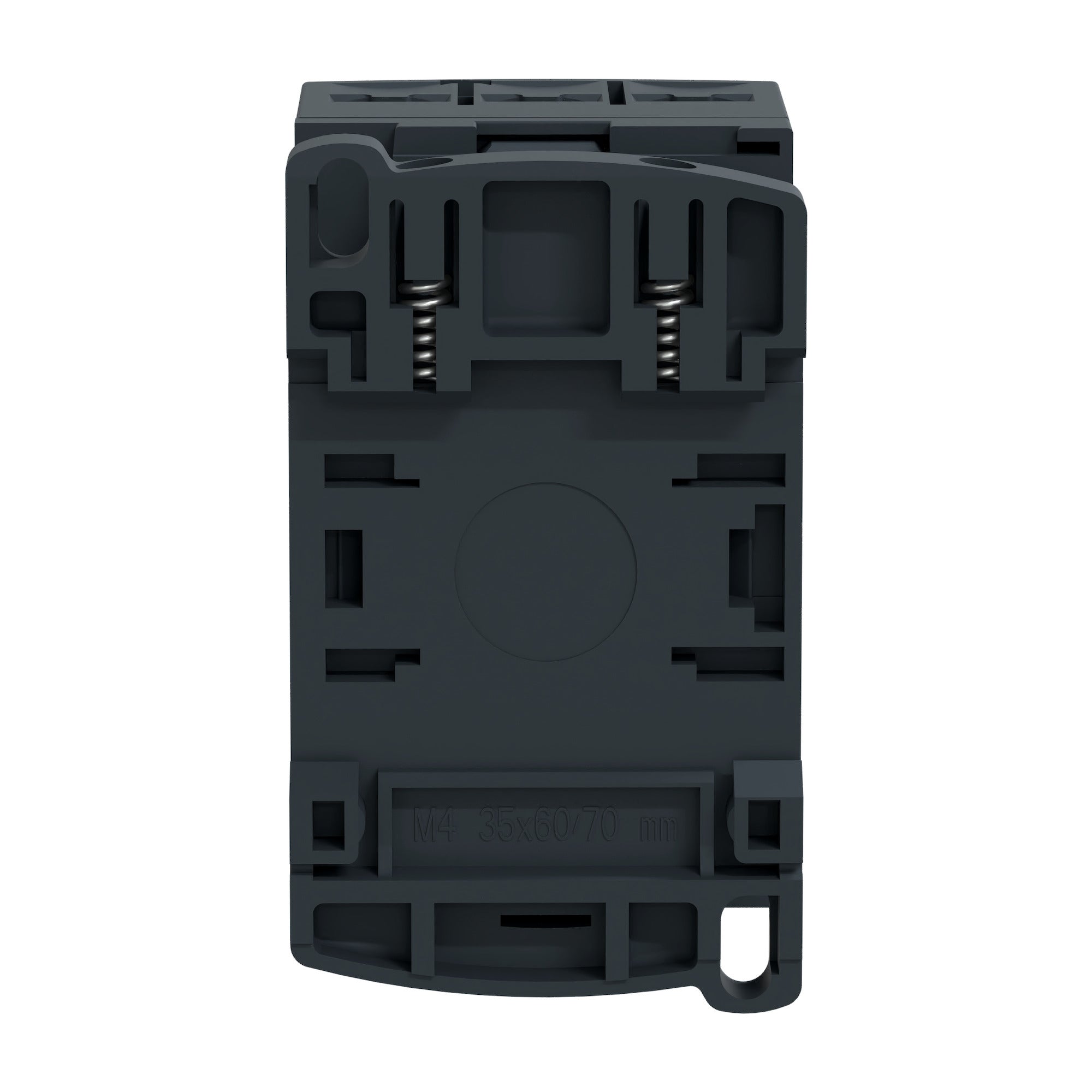

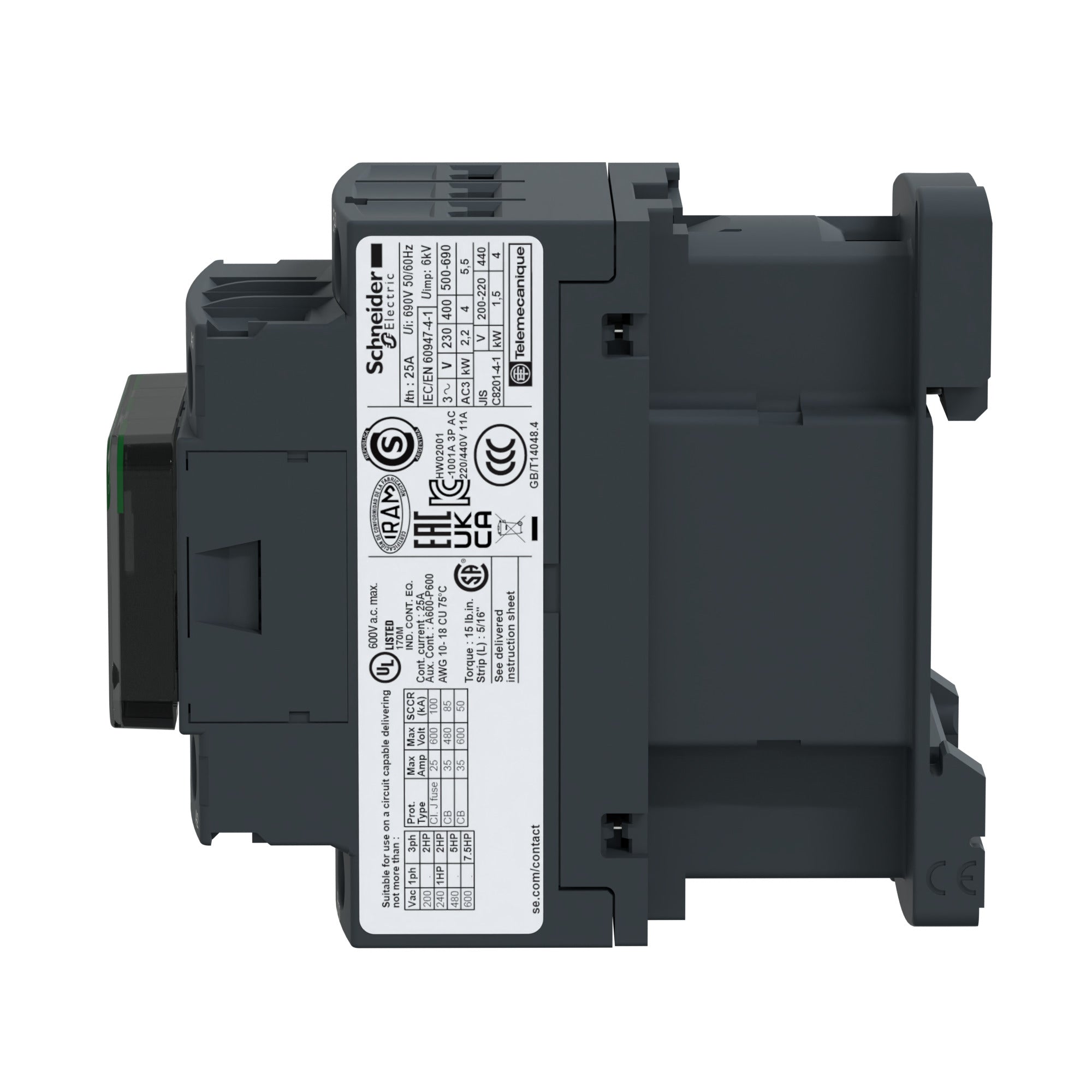

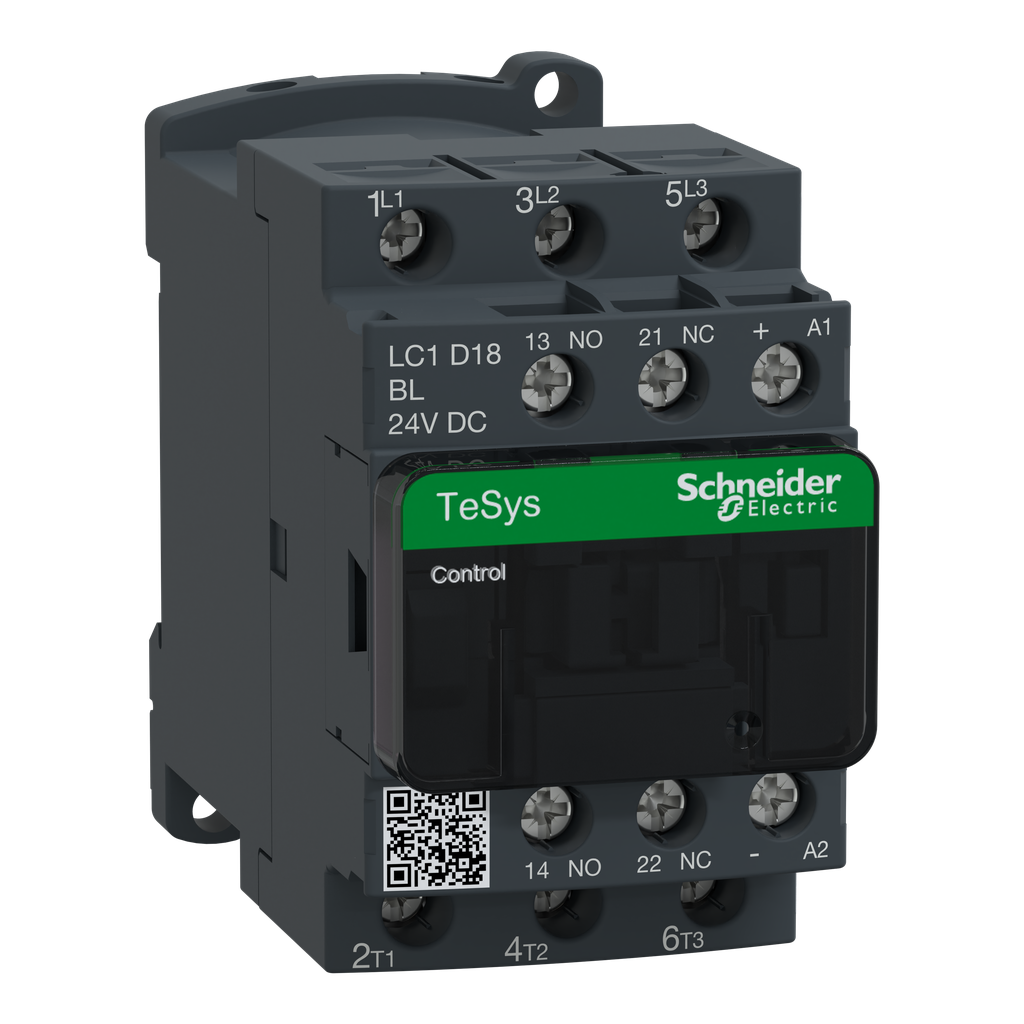

Schneider Electric LC1D18BL Square D 600 VAC 18 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D18BL is a 600 VAC contactor rated for 18 amps. It is designed for motor control applications, making it suitable for inductive loads and resistive loads. This contactor works with various types of control systems and can be mounted on DIN rails or panels.

• Rated for 5HP at 200-208VAC and 10HP at 480VAC.
• Features one normally open and one normally closed auxiliary contact.
• Coil voltage of 24 VDC with transient suppressor module.

Product Highlights

This contactor supports both horsepower and kilowatt ratings for international use. Its low consumption coil helps reduce energy use and ensure high efficiency.

Product Information

Standard Information

• Catalog Number: LC1D18BL
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 600 VAC
• Weight: 1.08 lbs
• Height: 3.03 inches
• Width: 1.77 inches
• Depth: 3.74 inches
• Coil Voltage: 24 VDC
• Certifications: UL, CSA, IEC, CCC, EAC
• Operating Temperature: -40°C to 70°C
