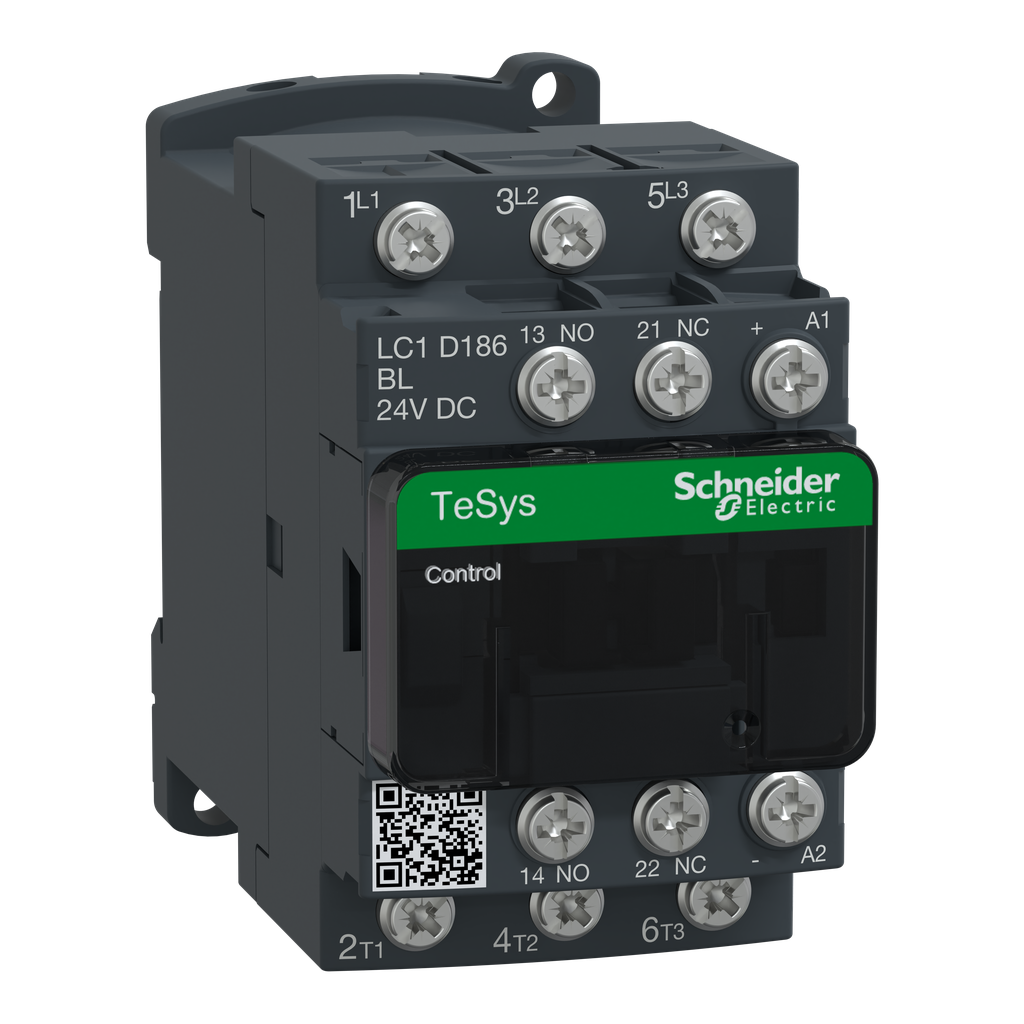

Schneider Electric LC1D186BL SQUARED IEC contactor, Te 18A

Product Description

Schneider Electric LC1D186BL is a TeSys D IEC contactor designed for motor control applications. This 18A inductive contactor is compatible with a variety of control systems and can be utilized to create motor starters for numerous applications. The device supports inductive loads up to 150 full-load amps and resistive loads of 200 amps.

• Compatible with DIN rail and direct panel installation.
• Features one normally open and one normally closed auxiliary contact.
• Low consumption 24 VDC coil included for efficient operation.

Product Highlights

This contactor provides mounting versatility and includes built-in transient suppressor capabilities. It meets multiple international standards for safety and performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D186BL

Technical Specifications

• Contact Type: 3 pole
• Voltage Rating: Up to 600VAC for three-phase
• Current Rating: 18A
• Dimensions: 3.03 inches tall, 1.77 inches wide, 3.74 inches deep
• Weight: 1.08 lbs
• Coil Voltage: 24V DC
• Certifications: UL, CSA, IEC, CCC
• Country of Origin: Indonesia
