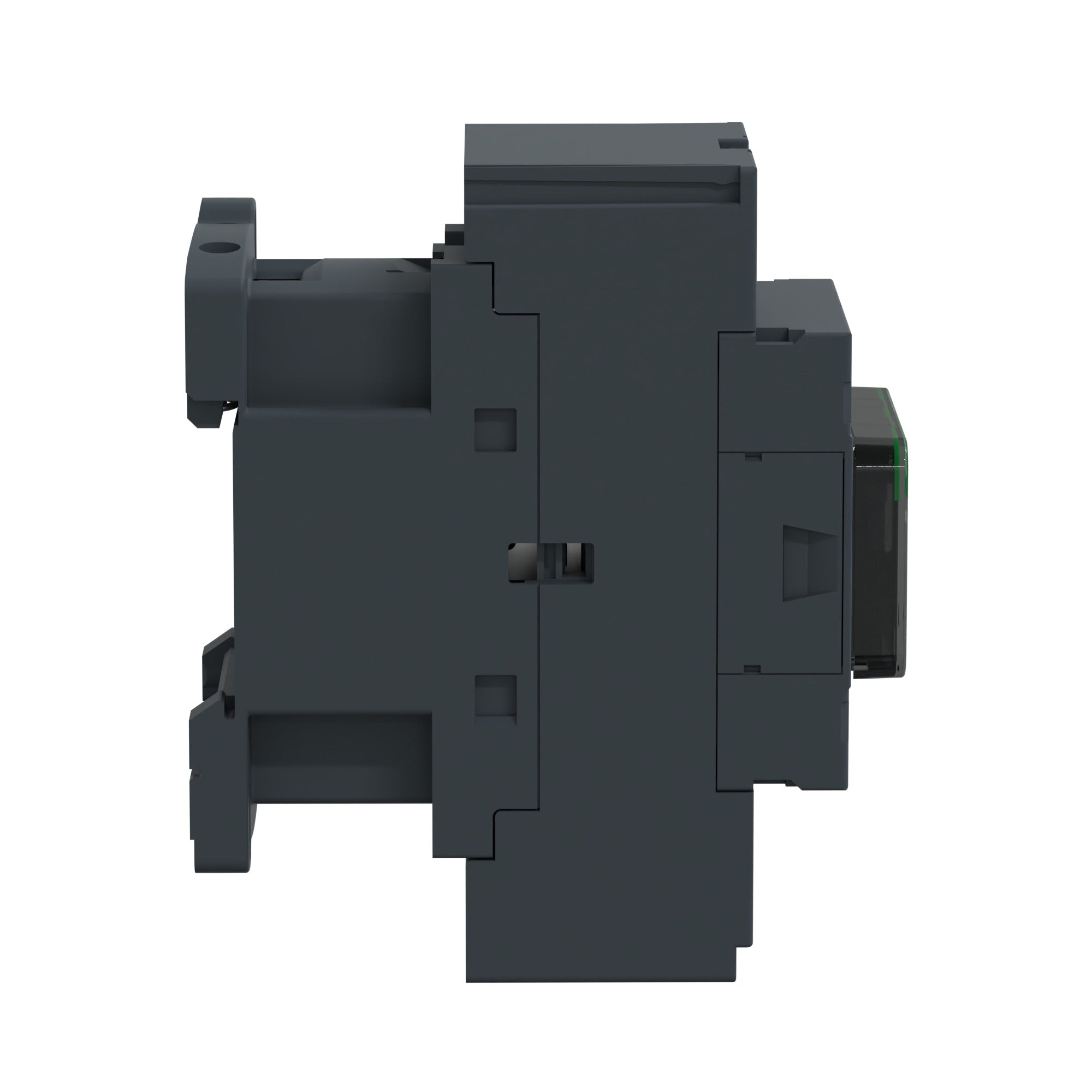

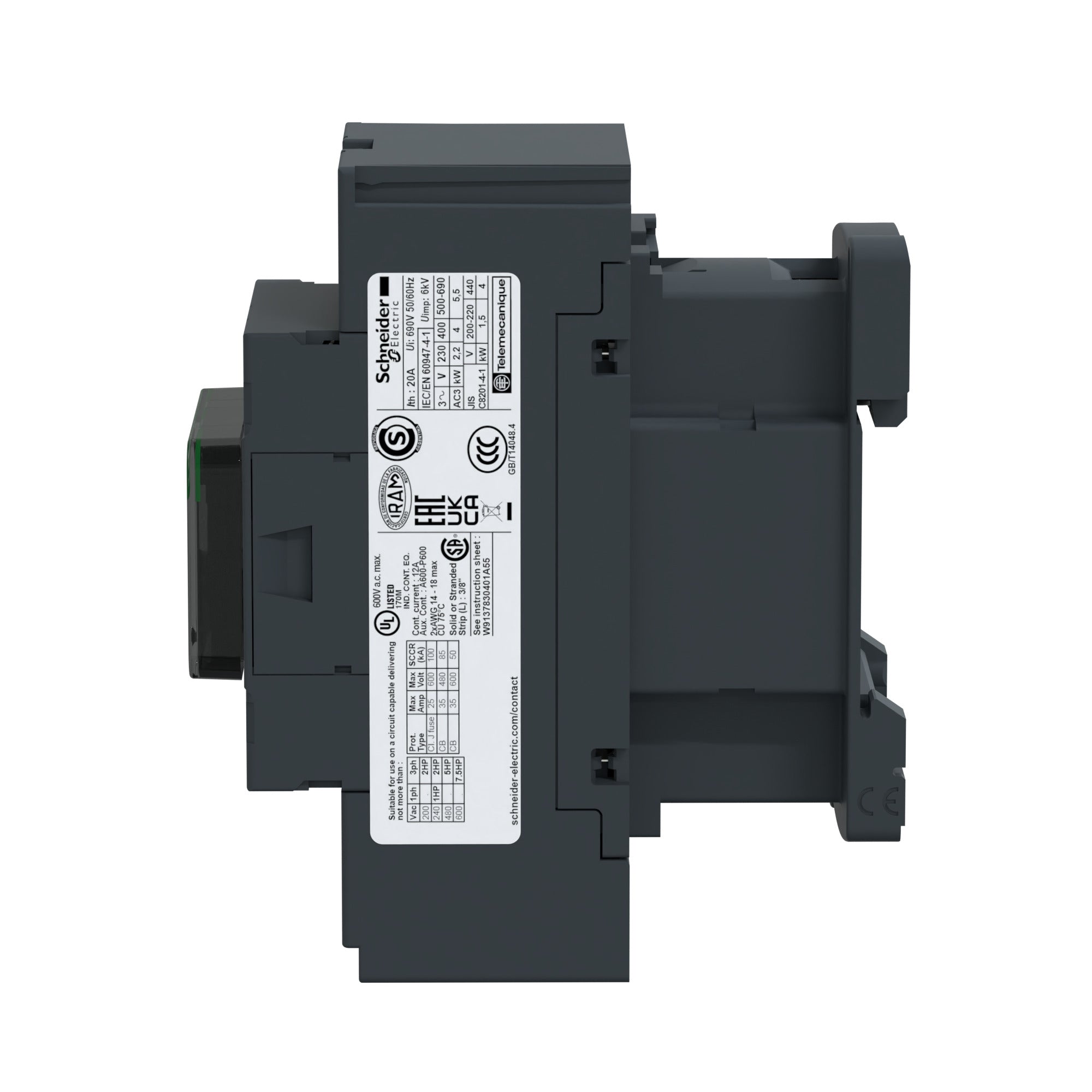

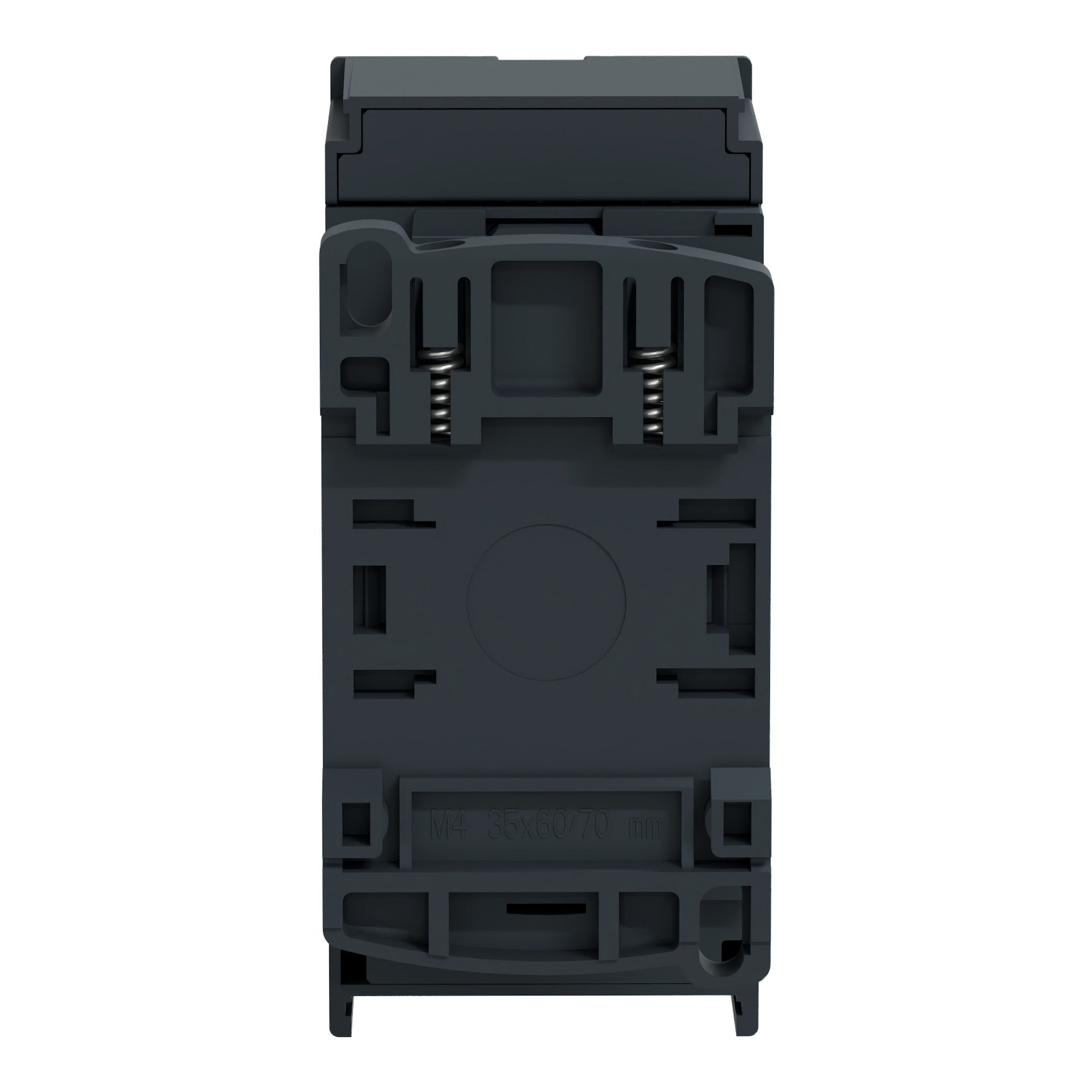

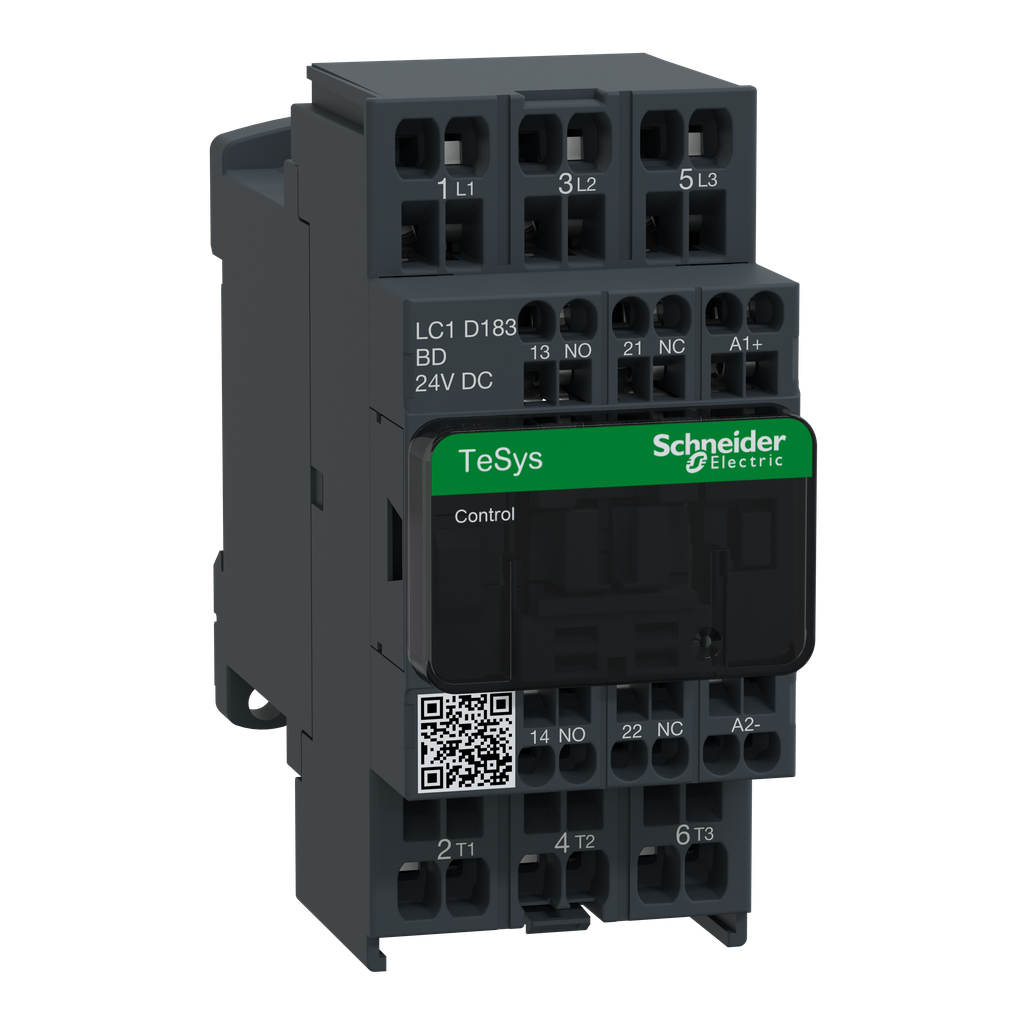

Schneider Electric LC1D183BD 600 VAC 18 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D183BD is a 600 Volt AC, 18 Amp, 3-Pole, 1 Normally Open and 1 Normally Closed auxiliary contact, designed for control systems. This contactor integrates easily into motor starters for various applications. It is suitable for inductive motor loads up to 150 full-load amps and resistive loads up to 200 amps. This contactor can be mounted on a DIN rail or directly on a panel. It is rated for 5HP at 200-208VAC, 10HP at 480VAC, and 15HP at 600VAC in three-phase systems. In single-phase systems, it can handle 1HP at 115VAC and 3HP at 240VAC.

• Rated for 24 VDC coil with transient suppressor module
• Includes built-in auxiliary contacts for added functionality
• Compatible with various accessories for versatile applications

Product Highlights

Designed for multiple motor control and resistive loads, this IEC contactor meets various international standards and certifications.

Product Information

Standard Information

• Catalog Number: LC1D183BD
• Brand: Schneider Electric

Technical Specifications

• Voltage: 600 VAC
• Current Rating: 18 Amp
• Dimensions: 3.9 inches tall, 1.77 inches wide, 3.98 inches deep
• Weight: 1.08 lbs
• Coil Voltage: 24 V DC
• Operating Cycles: 3600 cyc/h at 140°F (60°C)
• Certifications: UL, CSA, IEC, CCC, EAC
• Country of Origin: Indonesia
