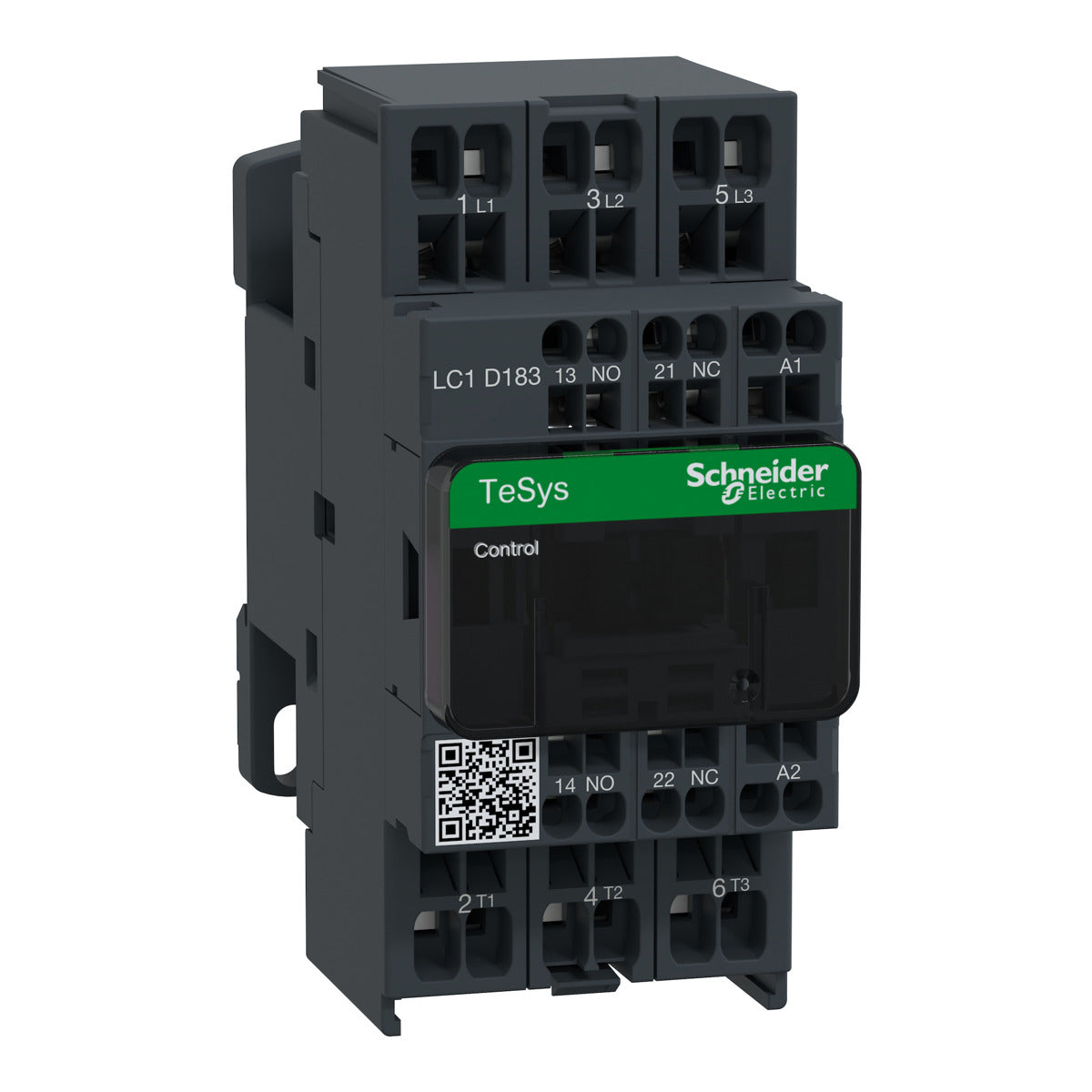

Schneider Electric LC1D183B7 IEC Contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VAC 50/60Hz coil, open style

Product Description

The Schneider Electric LC1D183B7 is an IEC contactor designed for motor control and resistive loads. This unit supports multiple voltage requirements and can handle inductive loads up to 18A and 10HP at four hundred eighty volts in a three-phase configuration. It can be mounted on DIN rail or directly to a panel, making it versatile for various installations.

• Rated for 5HP at 200 to 208VAC and 10HP at 480VAC.
• Standard features include one normally open and one normally closed auxiliary contact.
• Supplied with a 24VAC coil for efficient operation at 50/60Hz.

Product Highlights

This contactor integrates seamlessly into control systems and is backed by Schneider Electric's reputation for reliability. It is certified to multiple standards, ensuring quality and compatibility with diverse applications.

Product Information

Standard Information

• Catalog Number: LC1D183B7
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 24 V AC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Operating Cycles: 25 to 400 Hz
• Mounting: Rail Plate
• Dimensions: 3.90 inches tall, 1.77 inches wide, 3.39 inches deep
• Weight: 0.73 lbs
• Country of Origin: United States
• Warranty: 18 months contractual warranty
