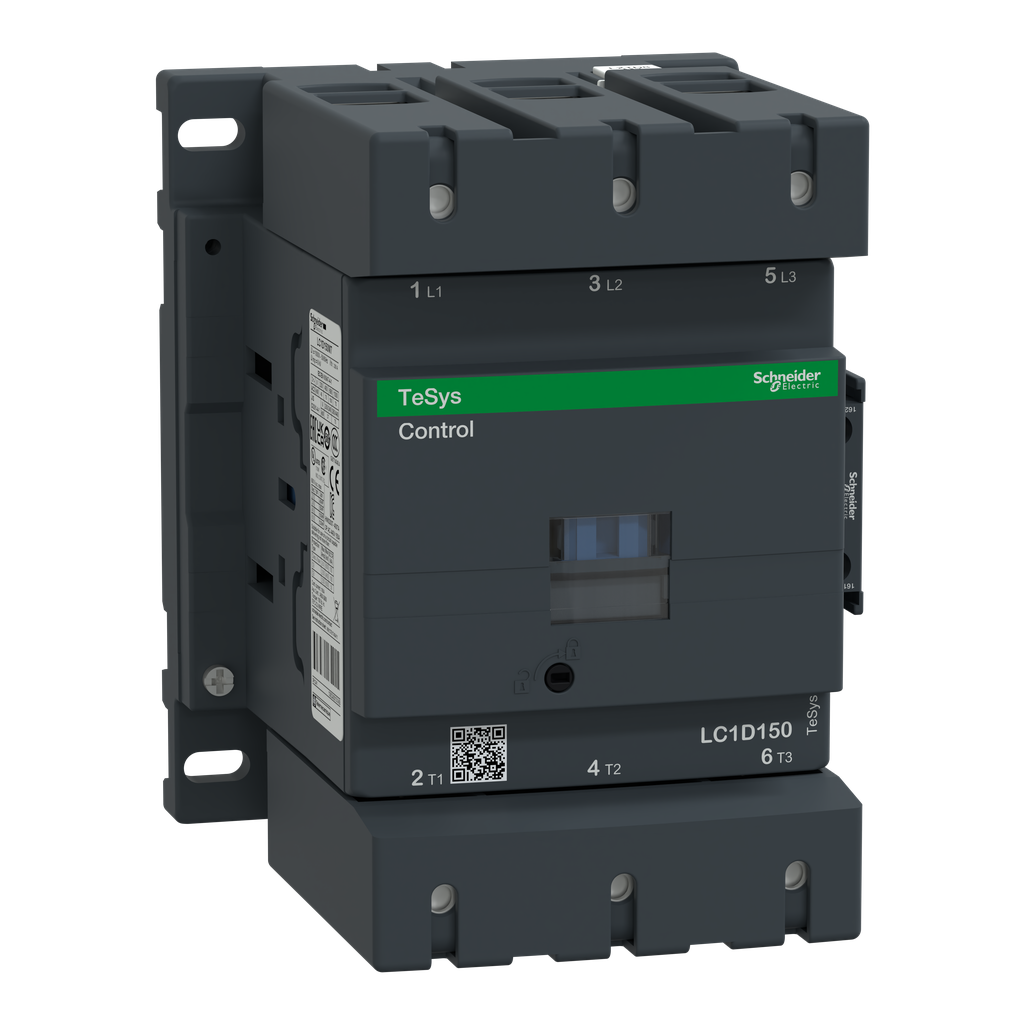

Schneider Electric LC1D150LE7 IEC contactor, 150A, 3 Phase, 100HP at 480VAC

Product Description

Schneider Electric LC1D150LE7 is an IEC contactor designed for motor control applications. This contactor operates at 150 amps with inductive loads and supports resistive loads up to 200 amps. It functions within various applications, offering versatility for different control systems. The LC1D150LE7 contactor can be mounted on a DIN rail or directly onto a panel, making it suitable for various installation needs.

• Rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC, and 125HP at 600VAC.
• Built-in auxiliary contacts, one normally open and one normally closed.
• Meets UL, CSA, IEC, and RoHS/REACh standards, ensuring compliance with regulatory requirements.

Product Highlights

This contactor features a 208VAC 50/60 Hz coil, suitable for industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Voltage: 1000 Volt
• Wattage: 24 Watt AC-1 - 13.5 Watt AC-3
• Height: 6.22 inches
• Width: 4.72 inches
• Depth: 5.35 inches
• Weight: 5.51 lbs
• Coil Voltage: 208 V AC 50/60 Hz
• Warranty: 18 months
