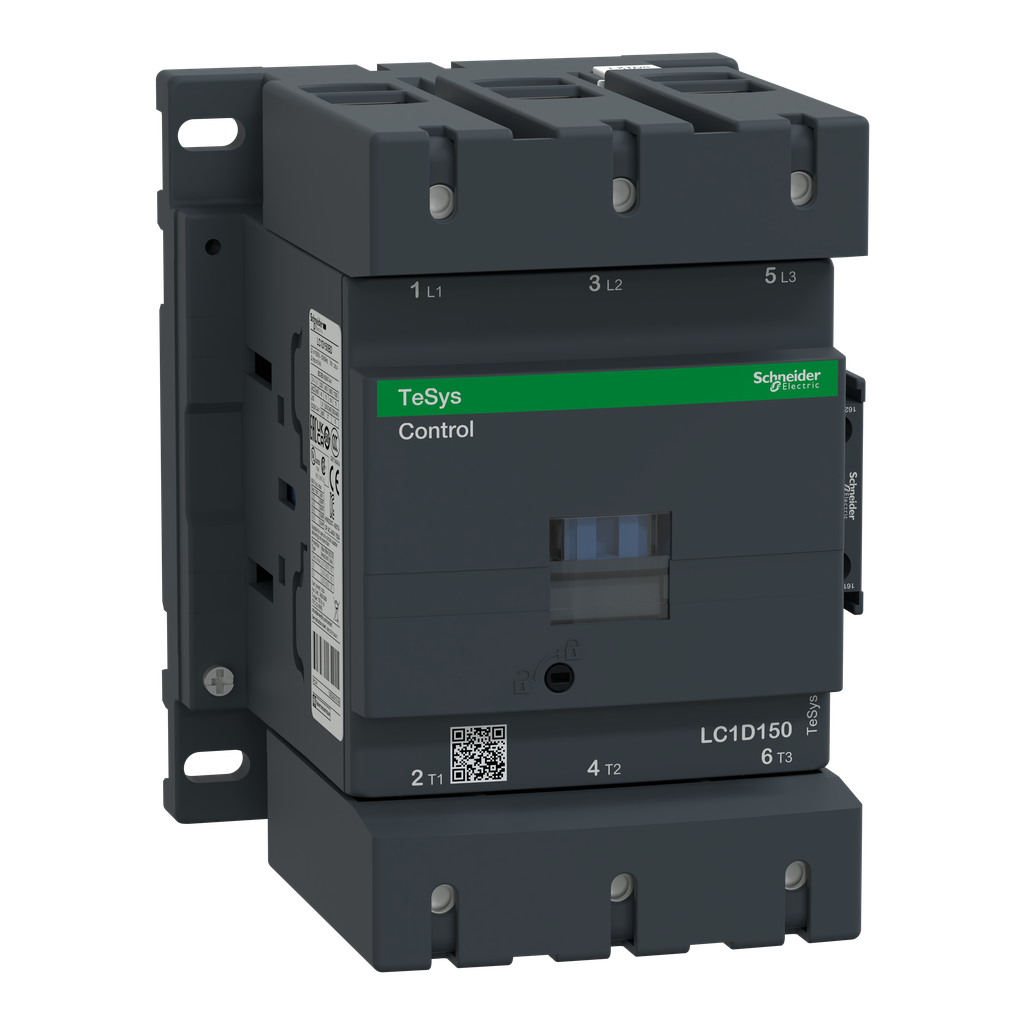

Schneider Electric LC1D150BD TeSys Deca IEC Contactor 150A 100HP (150 Amps 100 Horsepower at 480VAC)

Product Description

Discover the LC1D150BD, a TeSys Deca IEC contactor by Schneider Electric. This non-reversing contactor is designed to handle impressive power tasks with a 150A capacity and up to 100 Horsepower at 480VAC in three-phase systems. Essential for industrial automation, it ensures reliable operation with a built-in 24VDC coil and transient suppressor.

• Robust capability for inductive and resistive loads reaching up to 150 full-load amps and 200 amps, respectively.
• Integrates one normally open and one normally closed auxiliary contact, enhancing its functionality.
• Offers flexible installation methods, including DIN rail and direct panel mounting.

Product Highlights

This contactor supports a variety of motor applications in demanding environments and meets global standards including UL, CSA, IEC, CCC, EAC, and Marine certifications. Additionally, it complies with RoHS/REACh.

Technical Specifications

• Height: 6.22 inches
• Width: 4.72 inches
• Depth: 5.35 inches
• Weight: 5.51 lbs
• Coil Voltage: 24 V DC
• Connection Types: Screw clamp terminals for control and power circuits
• Contact Configuration: 1 NO + 1 NC; 3 NO
