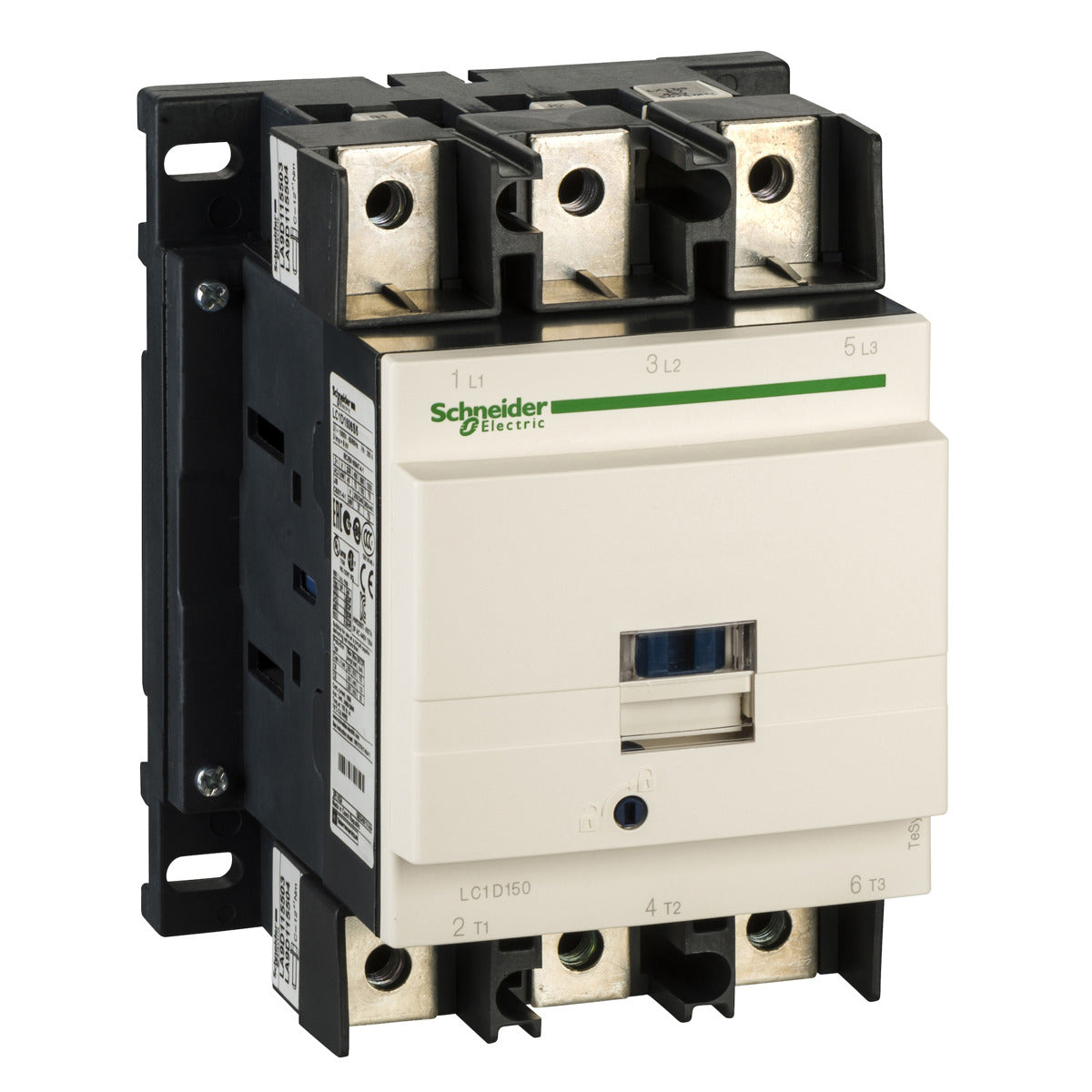

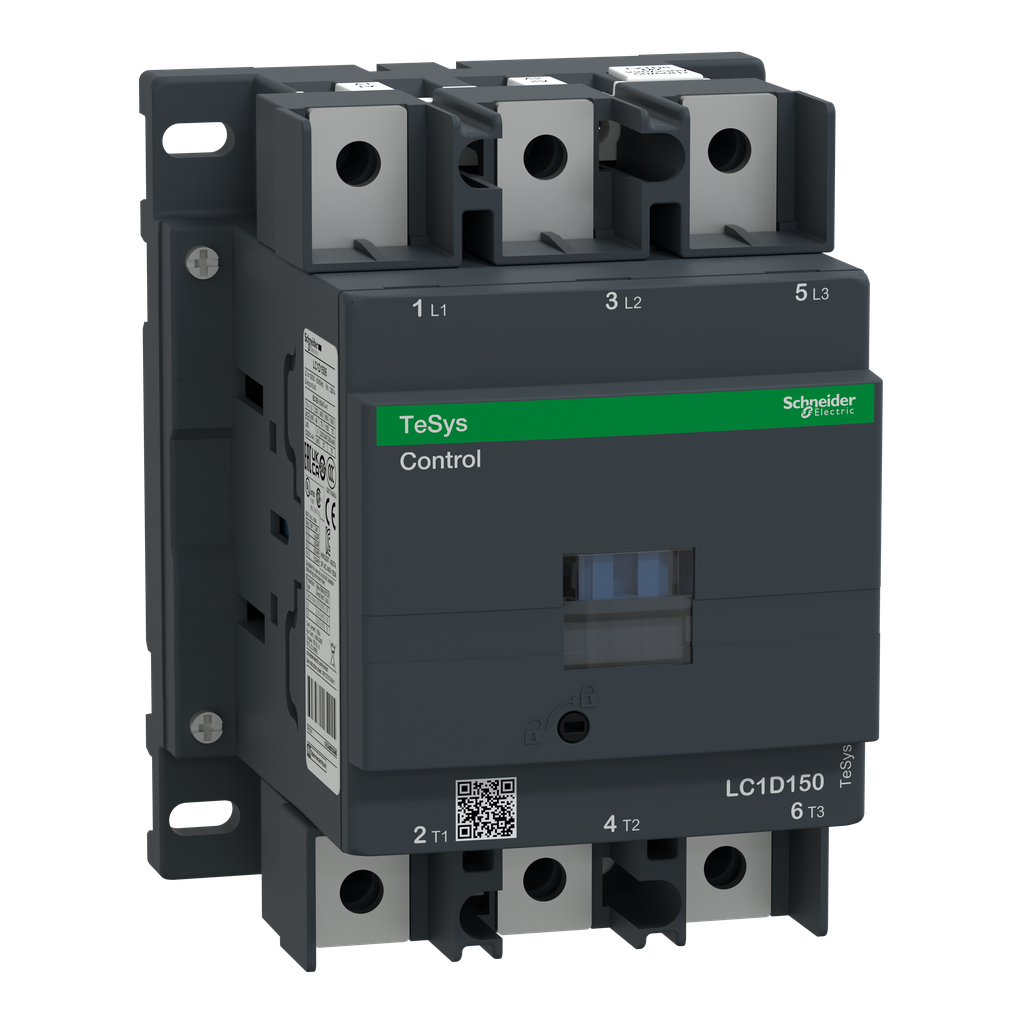

Schneider Electric LC1D1506F7 IEC Contactor, 150A, 3 Pole, 110VAC Coil

Product Description

Schneider Electric and MPN LC1D1506F7 offer an IEC contactor designed for control systems. This unit is suitable for creating motor starters in various applications. It supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. The contactor can be mounted on DIN rail or directly on a panel.

• Rated for 40HP at 200 to 208VAC.
• Supplied with a 110 VAC 50/60 Hz coil.
• Includes one normally open and one normally closed auxiliary contact.

Product Highlights

This product is ideal for motor control and resistive loads, with multiple mounting options and compatibility with various accessories.

Product Information

Standard Information

• Catalog Number: LC1D1506F7
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 5.51 lbs
• Dimensions: 6.22 inches (H) x 4.72 inches (W) x 5.35 inches (D)
• Coil Voltage: 110 V AC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC, 3 NO
• Mounting Type: Rail Plate
• Voltage Rating: 1000 Volt
• Applications: Motor control, resistive load
