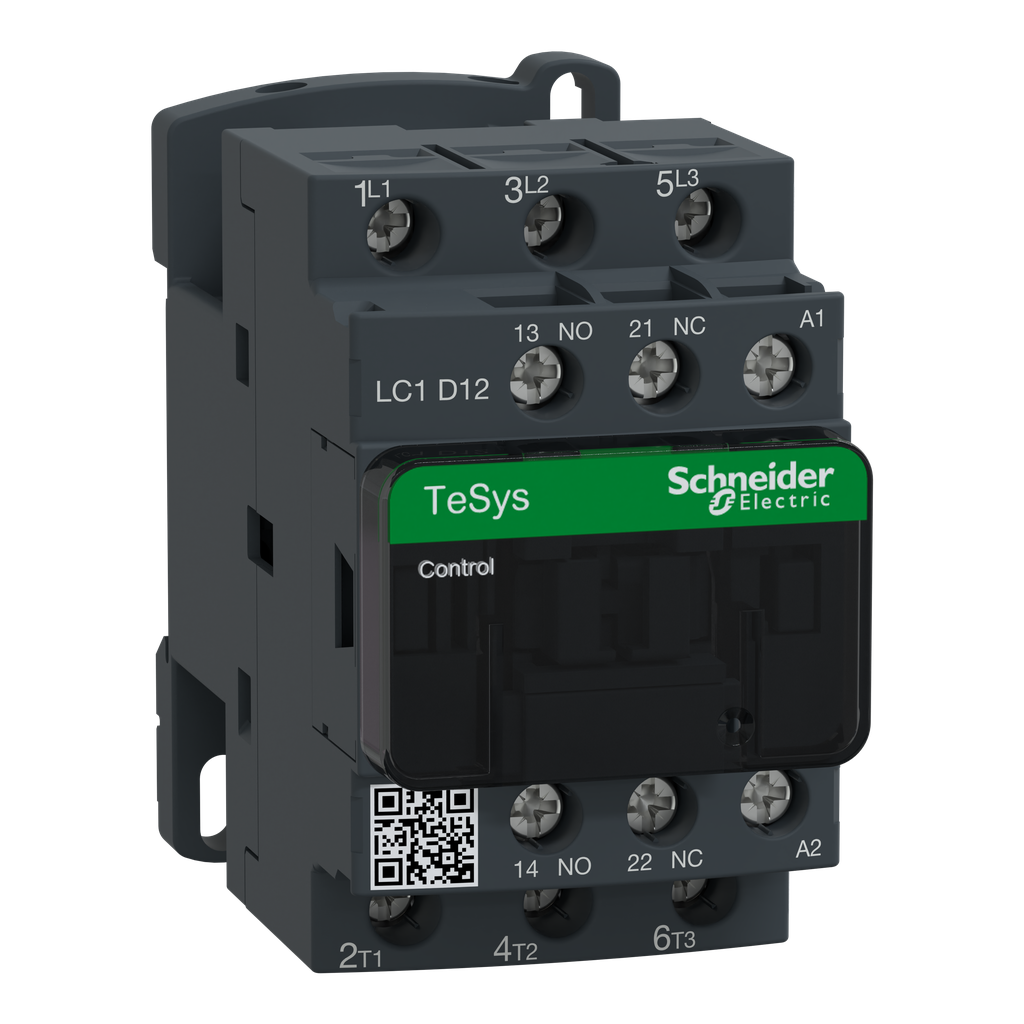

Schneider Electric LC1D12T7 Square D 600 VAC 12 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric brings you the LC1D12T7, a compact and reliable IEC contactor. It operates at 600 VAC and supports inductive loads of up to 12 Amps. This contactor integrates seamlessly into control systems, making it ideal for various motor starter applications. It is suitable for mounting on DIN rails or directly to panels.

• Rated for 3HP at 200-208 VAC, 3HP at 240 VAC
• Includes one normally open and one normally closed built-in auxiliary contact
• Meets UL, CSA, IEC, CCC, EAC, and Marine standards

Product Highlights

The LC1D12T7 is designed for effective motor control in industrial settings. It can handle resistive loads and inductive motor applications with ease.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D12T7

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 12 Amps
• Contact Configuration: 1 NO + 1 NC
• Type: 3-Pole
• Height: 3.03 inches
• Width: 1.77 inches
• Depth: 3.39 inches
• Weight: 0.72 lbs
