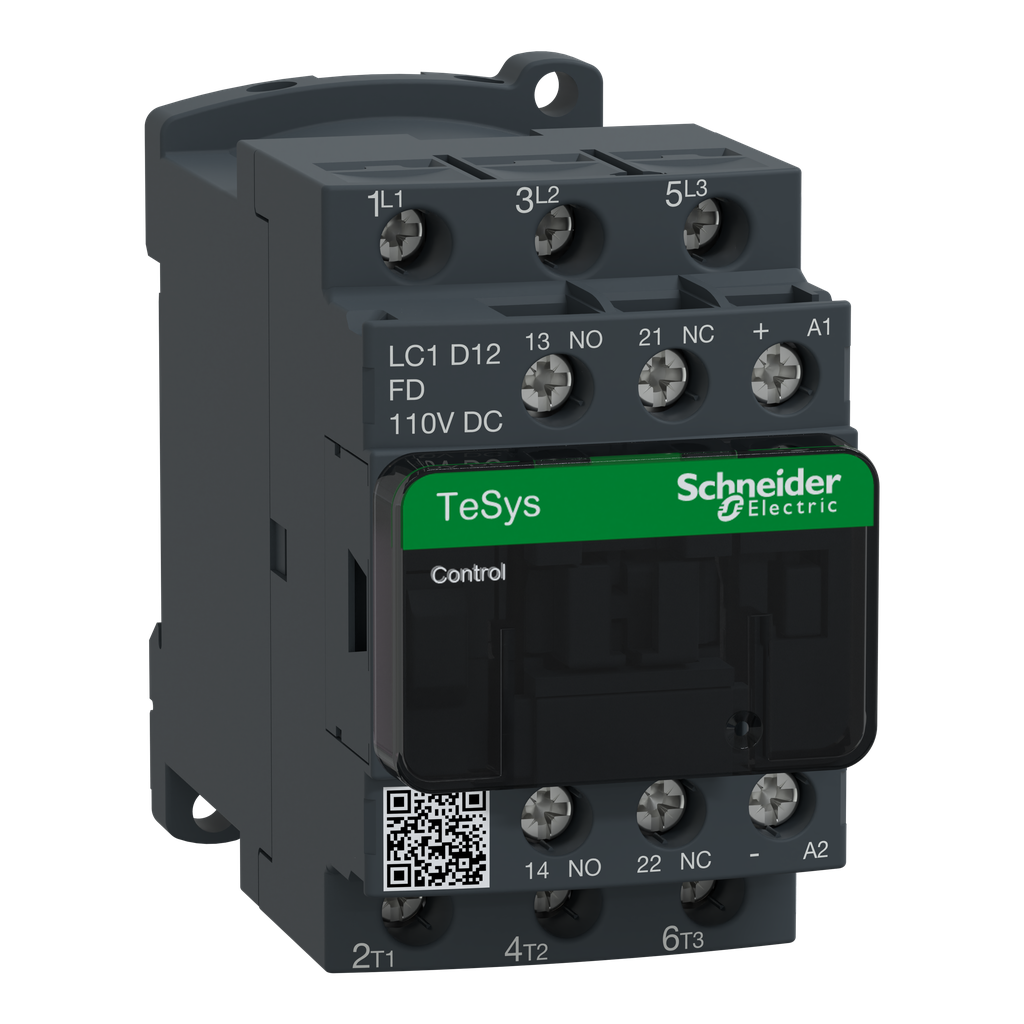

Schneider Electric LC1D12FD Square D 600 VAC 12 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D12FD is a 600 volt alternating current contactor for motor control. It has a rating of twelve amperes and features three poles with one normally open and one normally closed auxiliary contact. This contactor can be integrated into various control systems for motor starters in diverse applications.

• Rated for three horsepower at 200 to 208 volts AC.

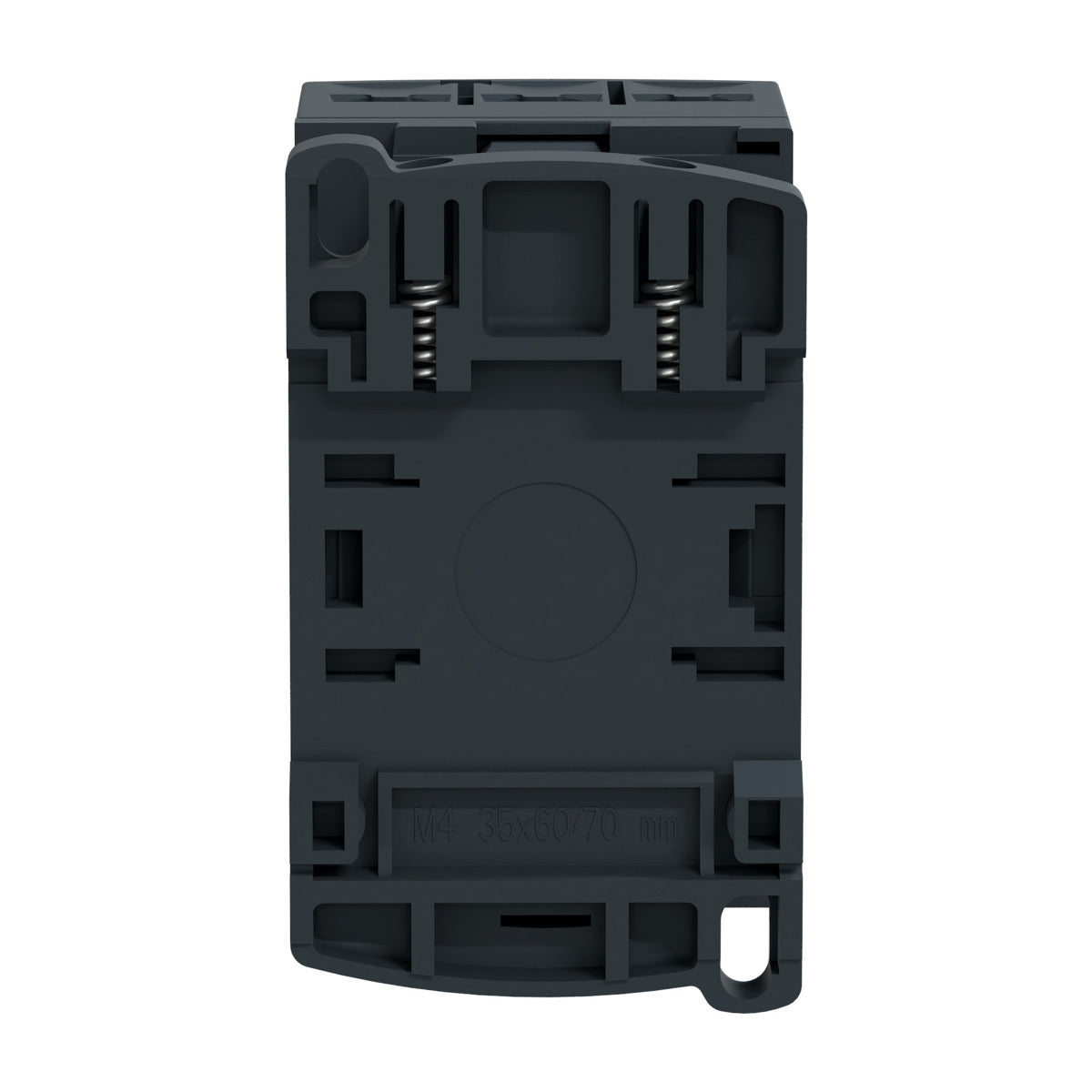

• Compatible with DIN rail or direct panel mounting.
• Includes built-in transient suppressor module.

Product Highlights

This contactor is part of the TeSys D range, offering high efficiency and reliability for inductive loads.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC1D12FD
• Coil Voltage: 110 V DC
• Contact Configuration: 1 NO + 1 NC, 3 NO
• Operating Temperature: -40 to 70 degrees C
• Dimensions: 3.03 inches tall, 1.77 inches wide, 3.74 inches deep
• Weight: 1.07 lbs
• SCCR Rating: Up to 100 kA with appropriate fuses
• Certifications: UL, CSA, IEC, CCC, RoHS
