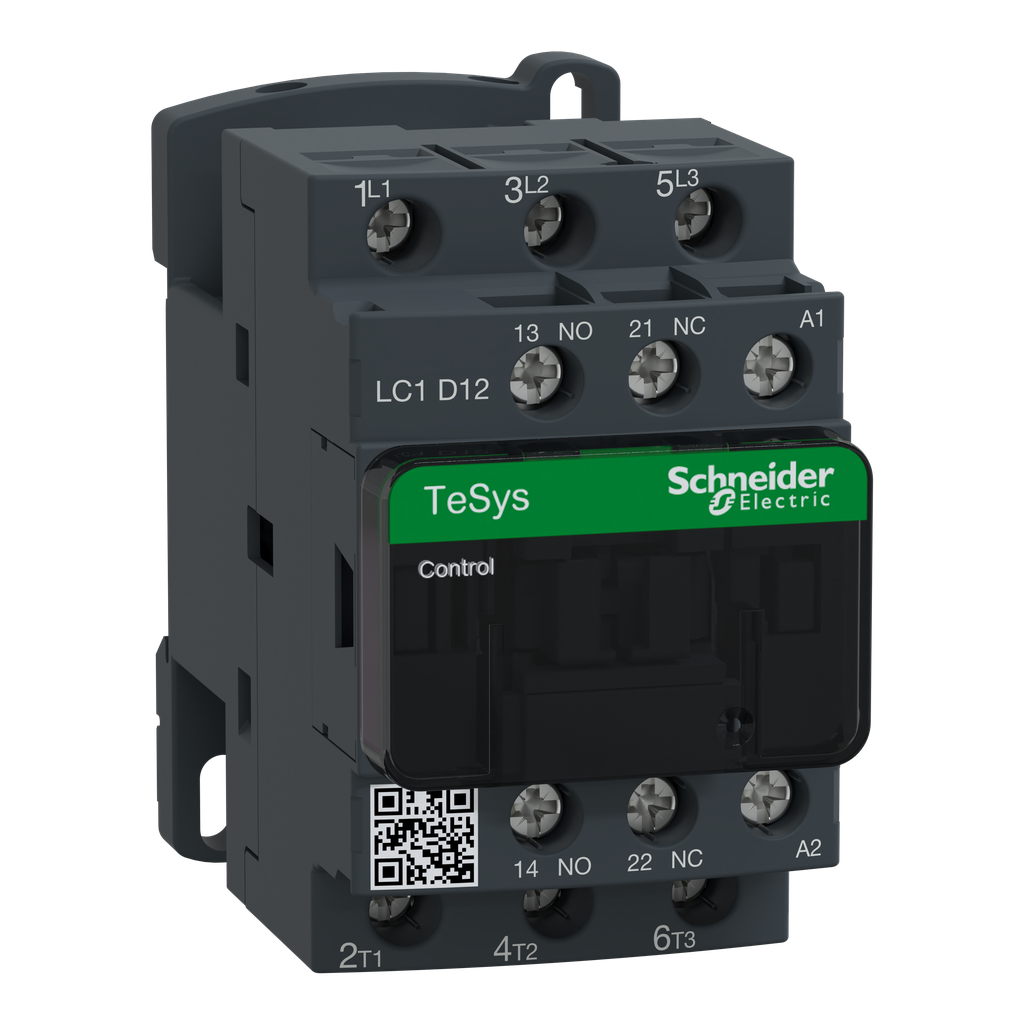

Schneider Electric LC1D12F7 600 VAC 12 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D12F7 is a full voltage non-reversing contactor designed for extensive use in electrical control circuits. This contactor operates at a voltage of six hundred VAC and supports a current rating of twelve amps. It is suitable for controlling three-phase motors and can function in various industrial applications. With capabilities for both inductive and resistive loads, this contactor is a versatile component for motor control systems.

• Rated for three-phase applications, supporting motor horsepower up to 10 HP at six hundred VAC.
• Includes one normally open and one normally closed auxiliary contact.
• Compatible with DIN rail mounting for easy installation.

Product Highlights

This contactor is ideal for applications requiring strong performance in motor control circuits, especially in industrial environments needing high reliability and safety standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC1D12F7
• Voltage Rating: 600 VAC
• Current Rating: 12 Amp
• Contact Configuration: 1 Normally Open + 1 Normally Closed
• Mounting Type: DIN Rail
• Weight: 0.72 lb
• Dimensions: Height 3.03 inches, Width 1.77 inches, Depth 3.39 inches
• Coil Voltage: 110 VAC
