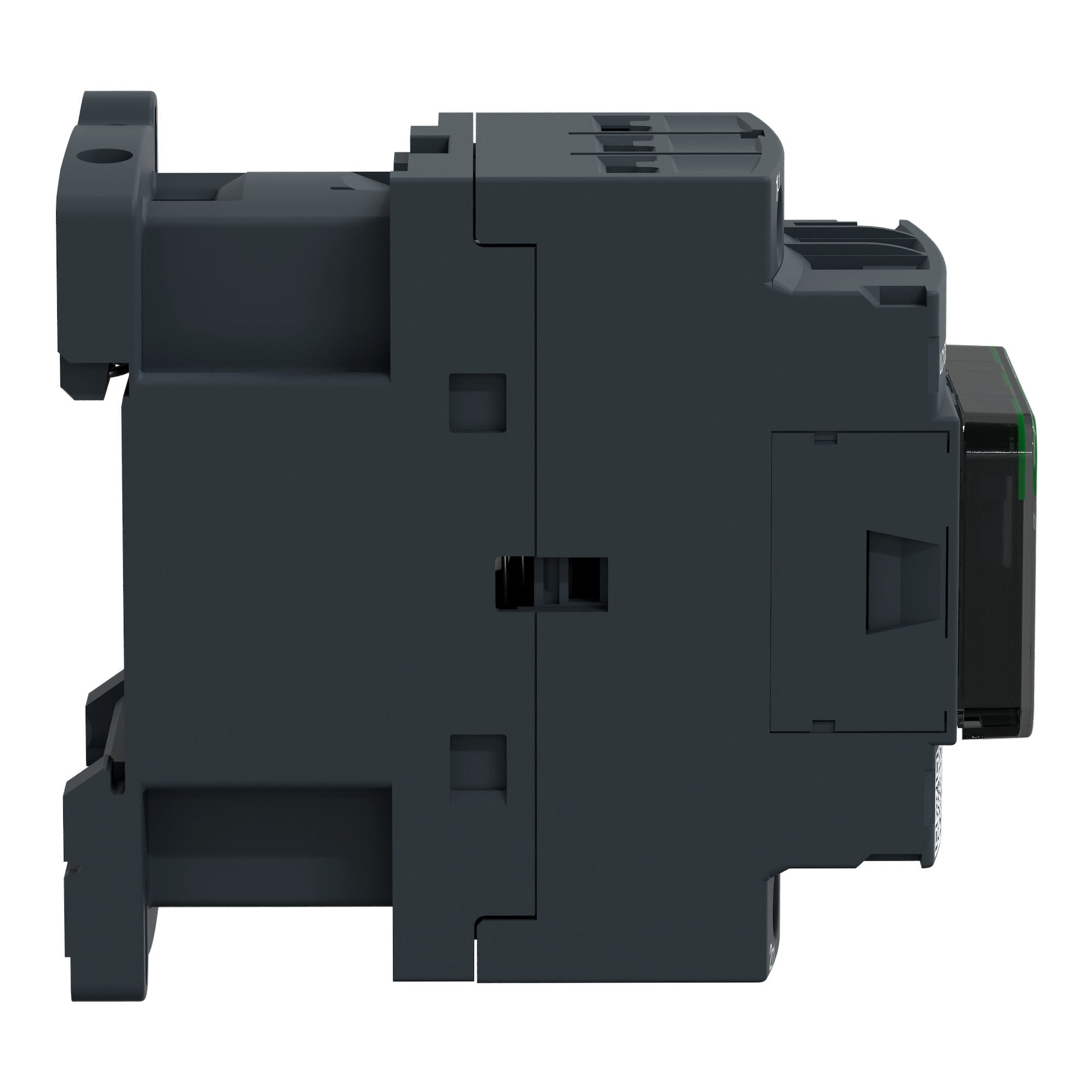

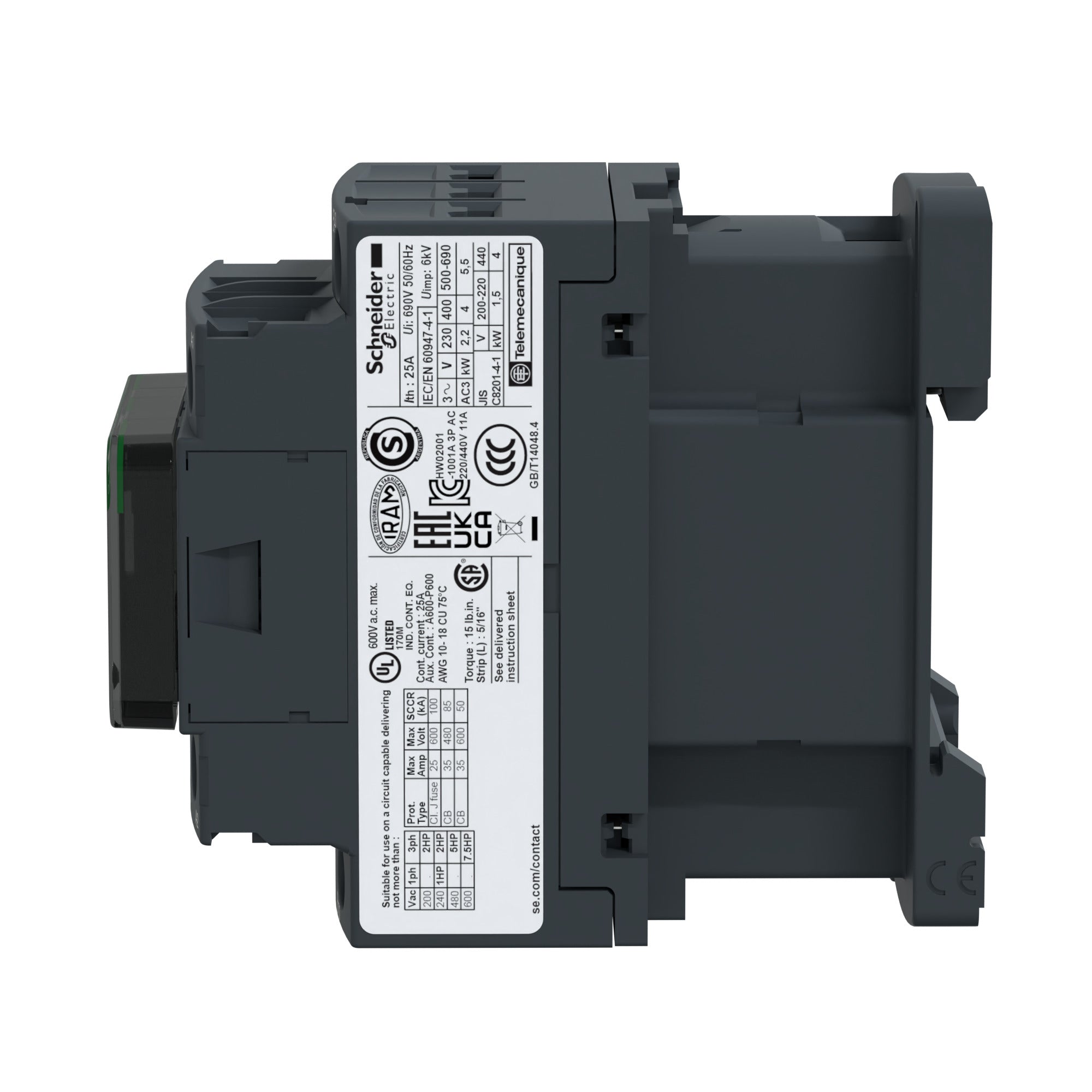

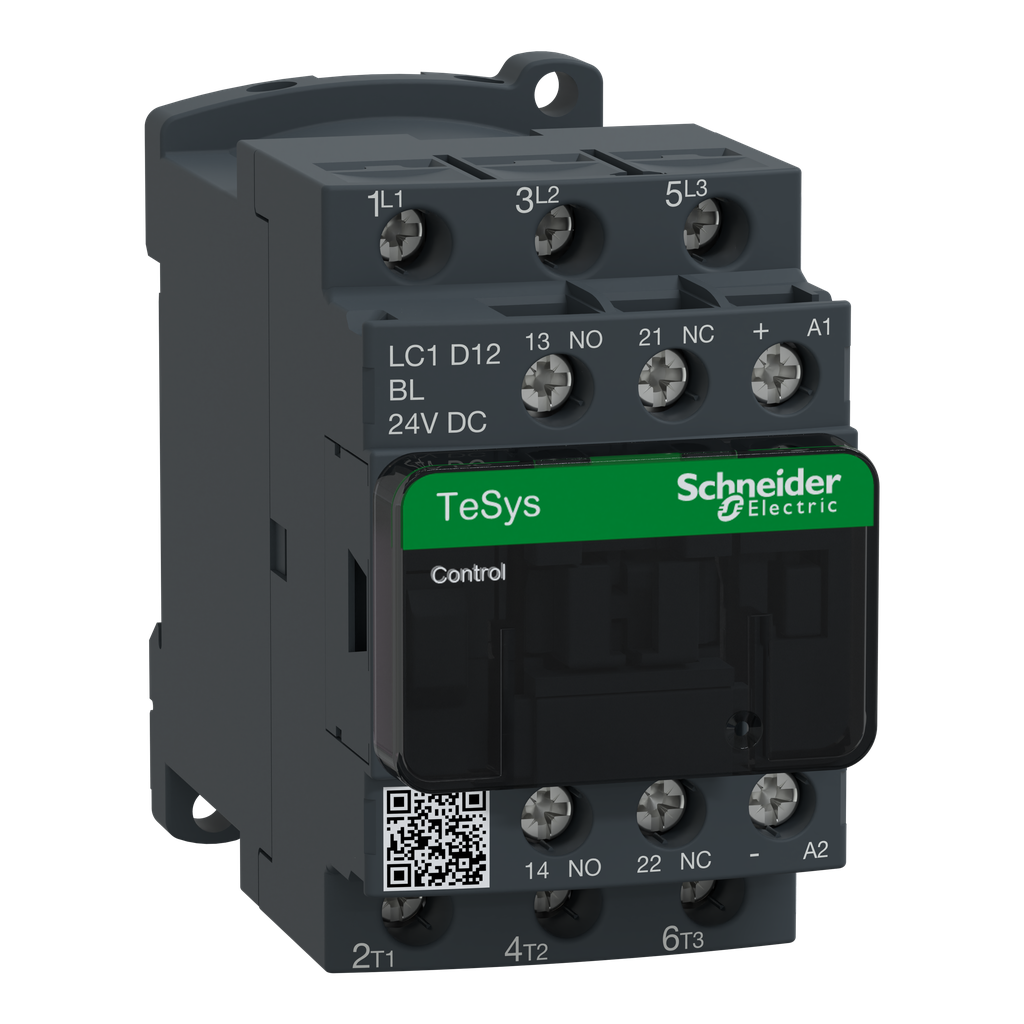

Schneider Electric LC1D12BL Square D 600 VAC 12 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

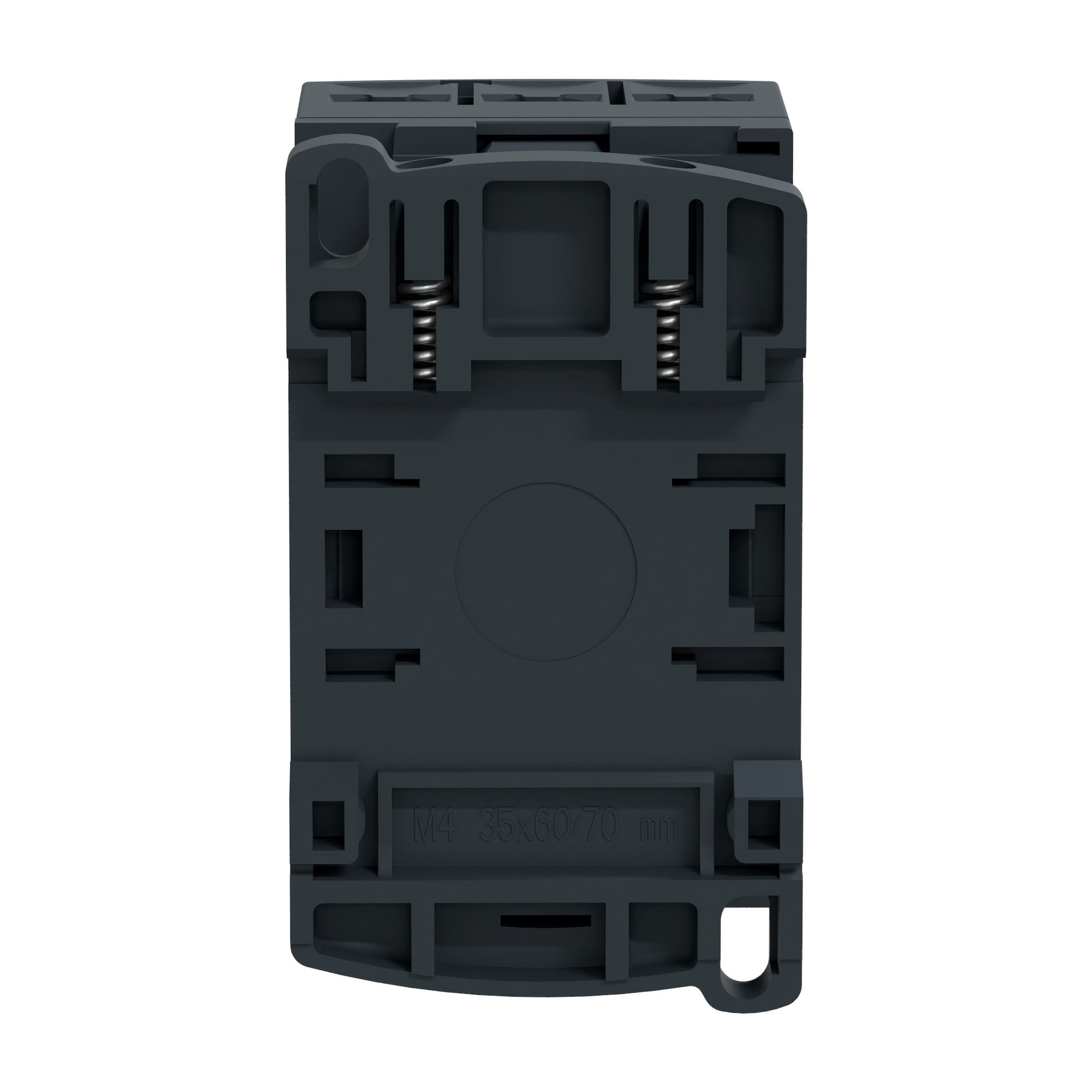

Schneider Electric LC1D12BL is a 600 volt alternating current contactor with a rated current of twelve amps. This three-pole contactor is suitable for various motor control applications. It is designed for integration into control systems. The LC1D12BL can be used for motor starters in various applications and is compatible with inductive loads up to 150 full-load amps and resistive loads up to 200 amps. It can be mounted on a DIN rail or directly on a panel.

• Rated for 3 HP at 200-208 VAC, 3 HP at 240 VAC, 7.5 HP at 480 VAC, and 10 HP at 600 VAC three-phase.
• Includes a low consumption twenty-four VDC coil with a transient suppressor module.
• Meets various international standards including UL, CSA, and IEC.

Product Highlights

This contactor is equipped with one normally open and one normally closed auxiliary contact and offers SCCR ratings up to 100kA when properly protected.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LC1D12BL

Technical Specifications

• Voltage: 600 VAC
• Rated Current: 12 Amp
• Depth: 3.74 inches
• Width: 1.77 inches
• Height: 3.03 inches
• Weight: 1.07 lbs
• Standards Compliance: UL, CSA, IEC, CCC, EAC, Marine
• Applications: Motor control, resistive loads
