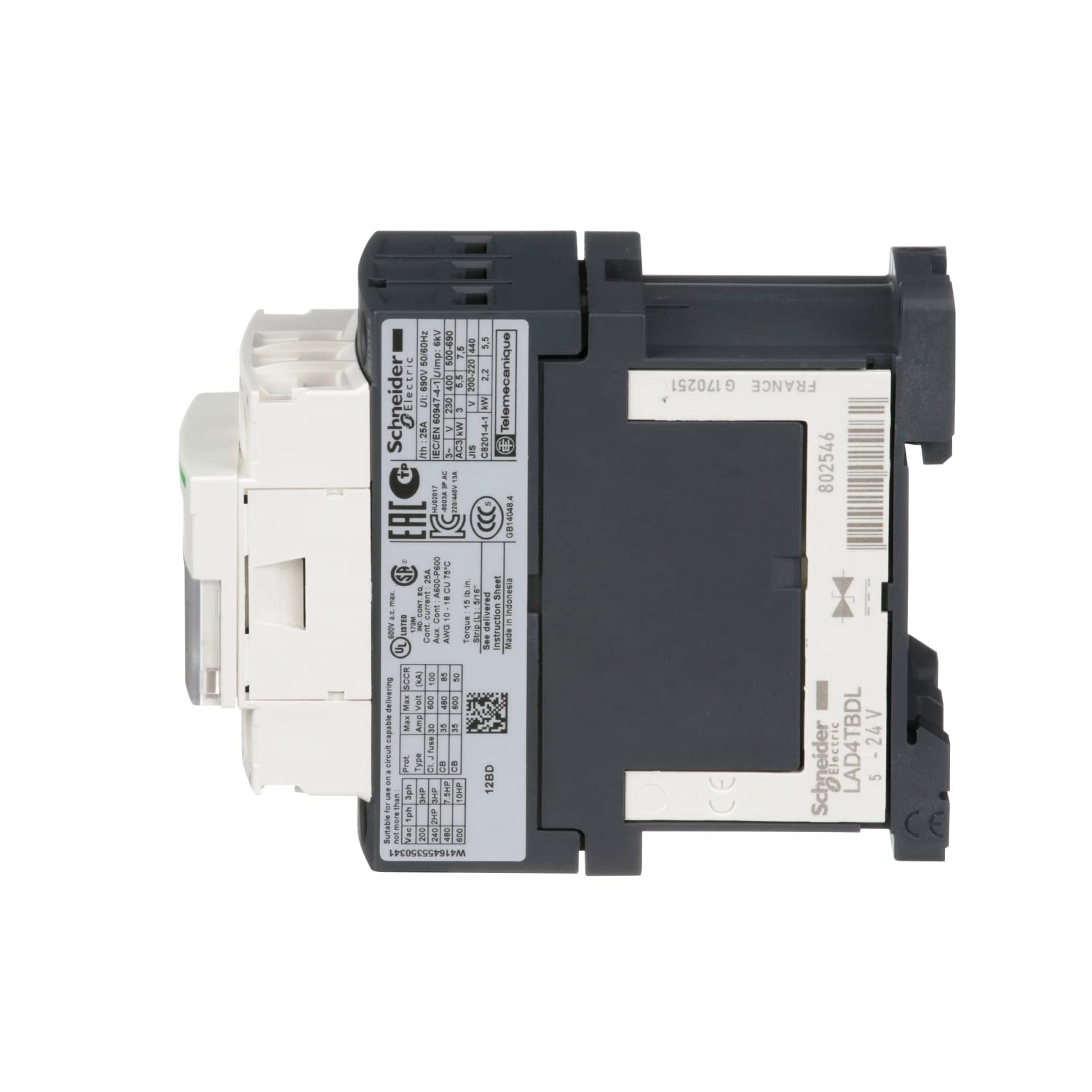

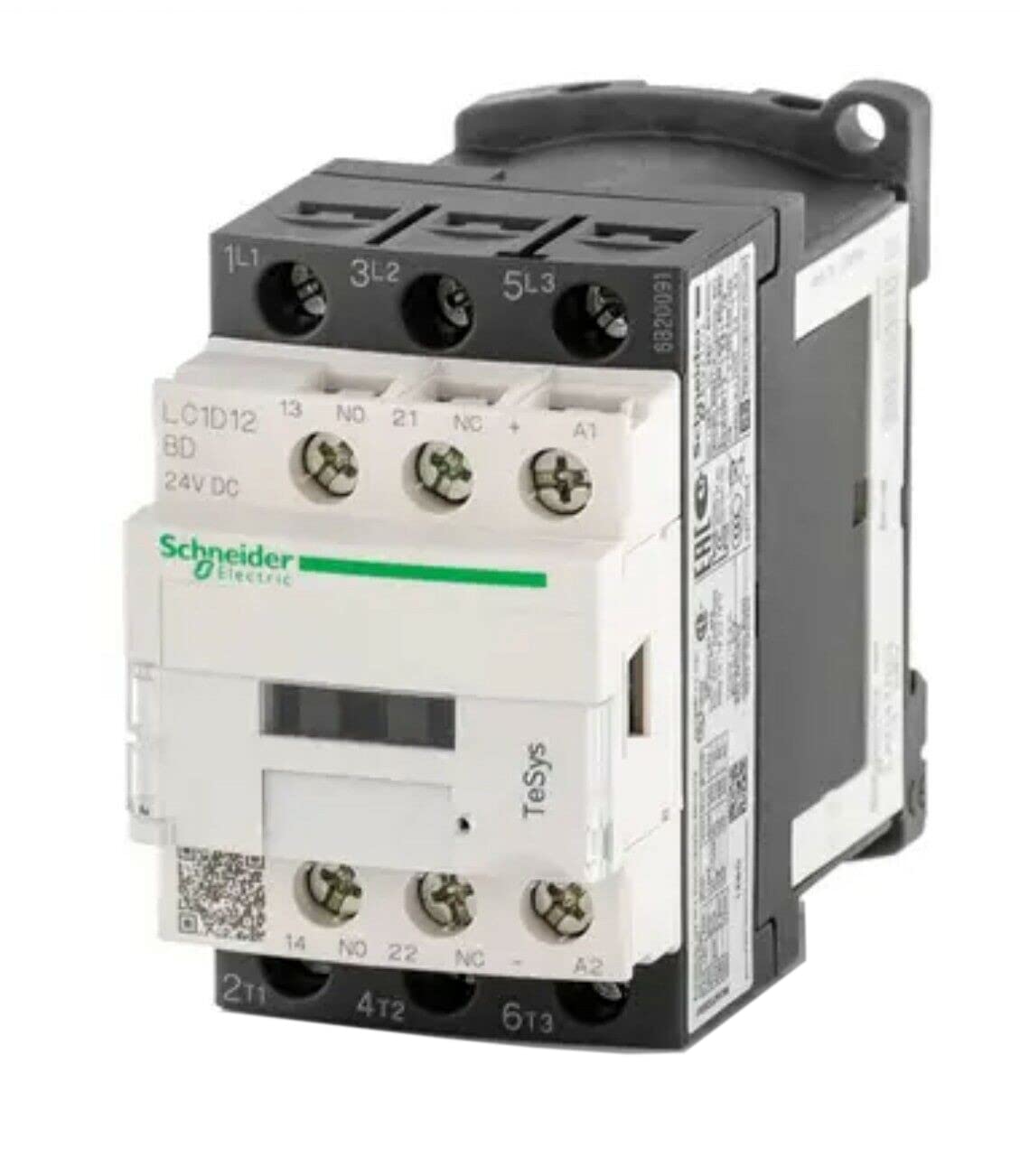

Schneider Electric LC1D12BD IEC Magnetic Contactor 24VDC 12A 3-Pole Non-Reversing

Product Description

Explore the robust and efficient Schneider Electric LC1D12BD IEC Magnetic Contactor, designed for seamless integration in industrial motor control applications. This 3-pole contactor is suitable for non-reversing operations and is equipped with a 24VDC coil. Ideal for both DIN rail and direct panel mounting, it provides a reliable solution for activating motors in various settings.

• Compact form factor ensures fit in limited spaces
• Equipped with built-in auxiliary contacts (1NO/1NC) enhancing operational flexibility
• Features an integral suppression device to protect against voltage spikes

Product Highlights

Rated for up to 12A for inductive applications and 25A for resistive loads, this contactor is versatile for numerous applications. It supports motor ratings up to 10HP at 575V in a three-phase arrangement, ensuring compatibility with a wide range of industrial setups.

Product Information

Standard Information

• Dimensions: Height: 3.03 inches, Width: 1.77 inches, Depth: 3.38 inches
• Weight: 1.07 pounds

Technical Specifications

• Coil Voltage: 24 V DC
• Operating Cycles: 25-400 Hz
• Mounting Options: Rail Plate or direct panel
• Contact Configuration: 1 NO + 1 NC; 3 NO; Mechanically linked 1 NO + 1 NC IEC 60947-5-1; mirror contact 1 NC IEC 60947-4-1
