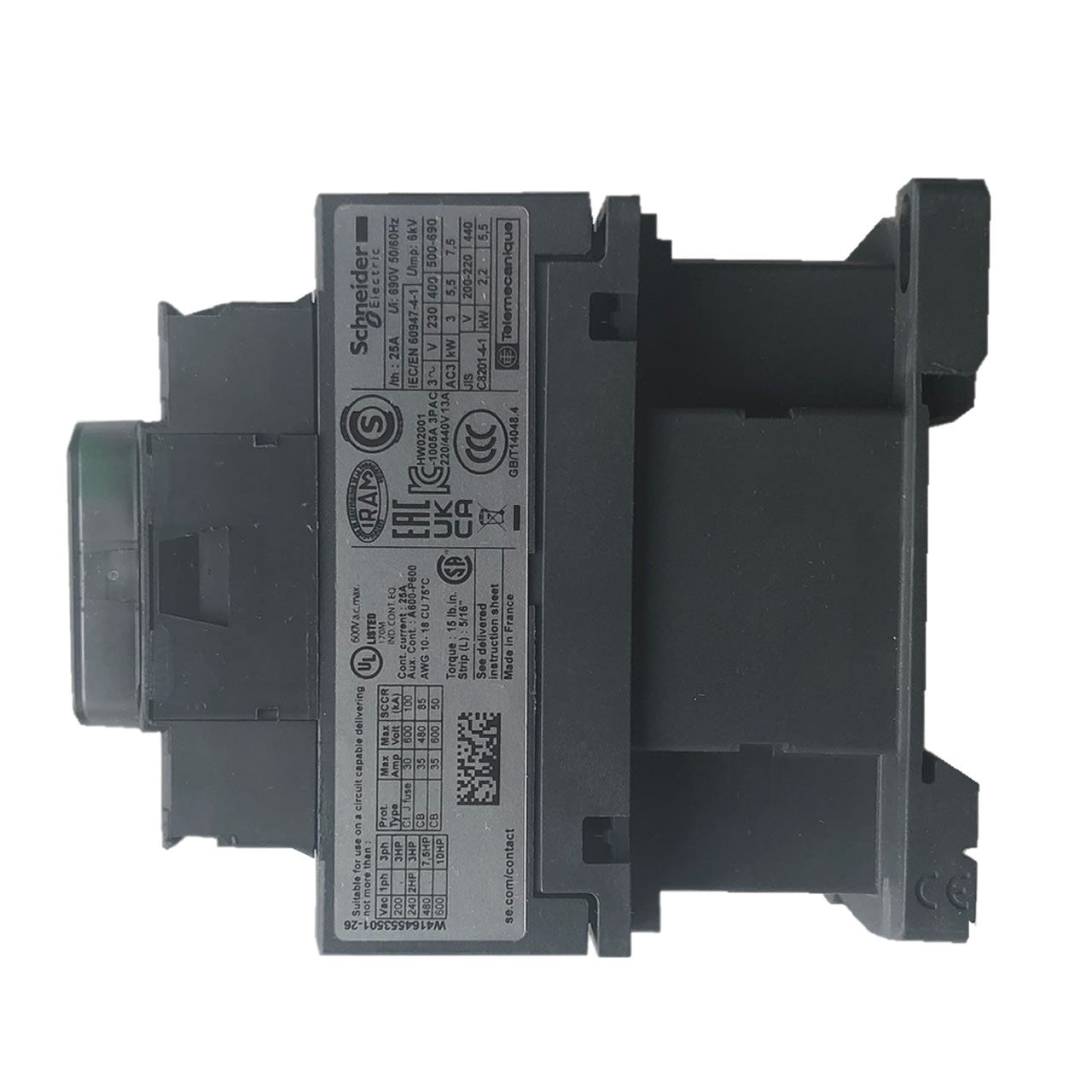

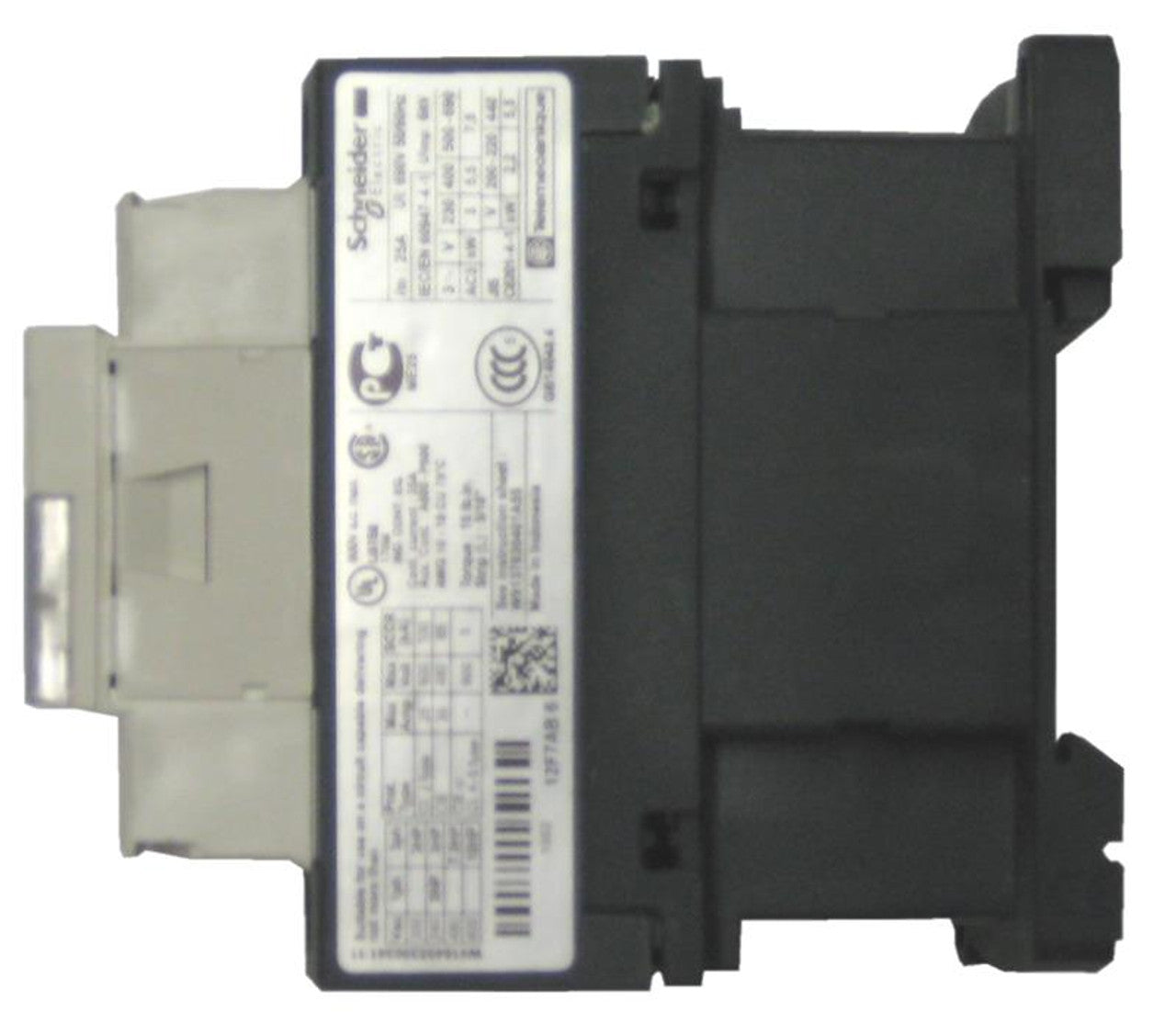

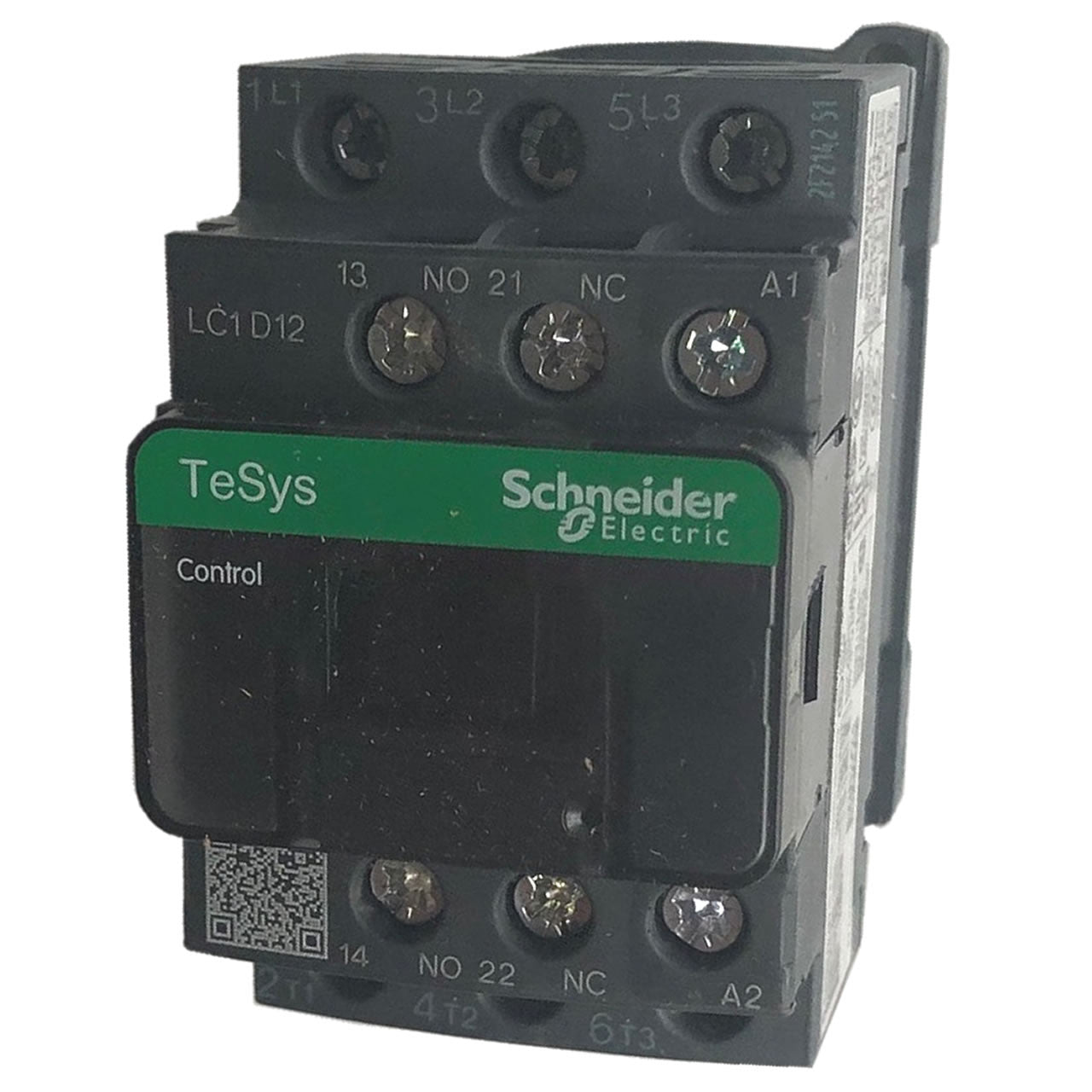

Schneider Electric LC1D12B7 Contactor 12 AMP 24 Volt AC

Product Description

The Schneider Electric LC1D12B7 is a 3 pole contactor designed for motor applications. It is rated at 12 amps for AC-3 and 25 amps for AC-1 with a coil voltage of twenty-four volts AC, making it suitable for various industrial uses.

• Rated at 12 amps AC-3 and 25 amps AC-1
• Equipped with a twenty-four volt AC coil
• Includes one normally open (NO) and one normally closed (NC) auxiliary contact

Product Highlights

This contactor is ideal for motor control and switching. It mounts on standard thirty-five millimeter DIN rail and supports motor applications up to seven point five horsepower at four hundred sixty volts in three-phase configurations.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D12B7

Technical Specifications

• AMP Rating: 12 amps AC-3, 25 amps AC-1
• Coil Voltage: 24 volt AC
• Horsepower: 3 HP at 230 volt, 7.5 HP at 460 volt
• Auxiliaries: 1 normally open (NO) & 1 normally closed (NC)
• Terminals: Screw
