Schneider Electric LC1D128G7 Square D 600 VAC 12 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D128G7 is an IEC contactor known for its reliability and durability in various control systems. This contactor operates at 600 VAC with a rating of 12 amps. It includes four poles, with two normally open and two normally closed contacts. Designed for effective integration in motor control applications, it adapts well to different setups and power requirements. The unit features a coil voltage of 120 VAC at 50/60 Hz and is capable of handling resistive loads up to 25 amps.

• Compatible with DIN rail or direct panel mounting
• Includes one normally open and one normally closed auxiliary contact
• Utilizes screw clamp terminals for secure load and connection

Product Highlights

This contactor is suitable for motor starters in diverse applications, boasting a compact design for easy installation and integration into existing systems. With certifications from UL, CSA, and IEC, it meets rigorous safety and performance standards.

Product Information

Standard Information

• Catalog Number: LC1D128G7
• Brand: Schneider Electric

Technical Specifications

• Voltage: 600 VAC
• Current Rating: 12 amps
• Coil Voltage: 120 VAC 50/60 Hz

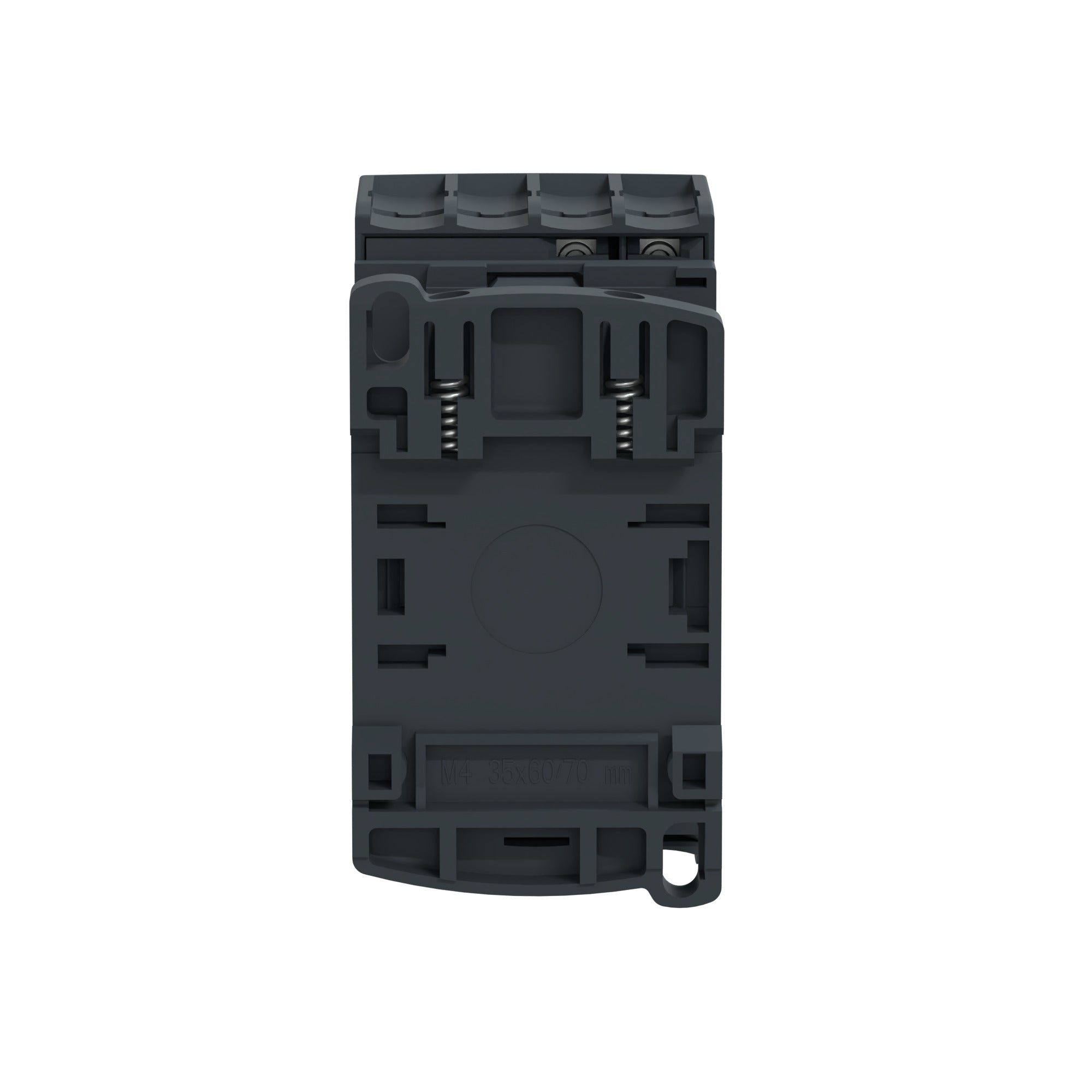

• Mounting: DIN Rail or Panel
• Dimensions: 3.35 inches tall, 1.77 inches wide, 3.62 inches deep
• Weight: 0.80 lbs
• Contact Configuration: 2 NO + 2 NC
• Certification: UL, CSA, IEC Certified
