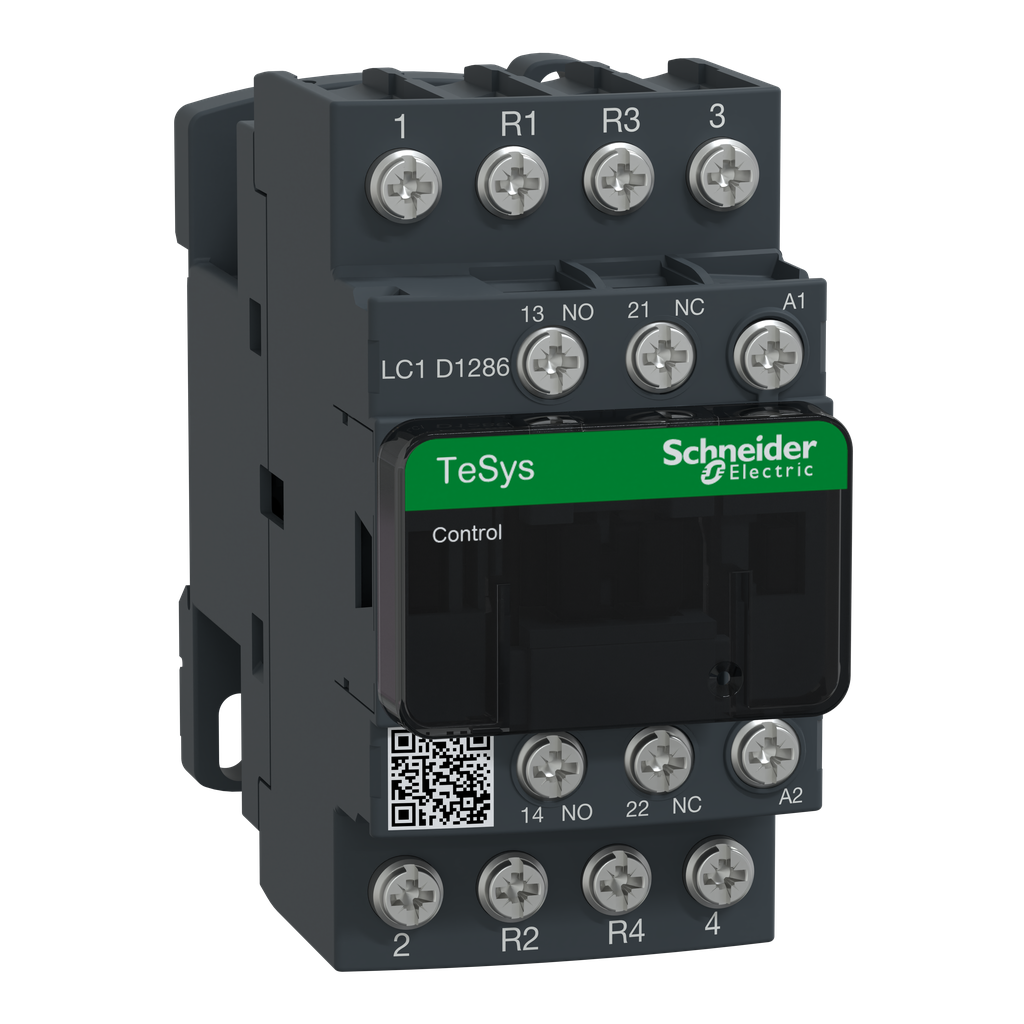

Schneider Electric LC1D1286G7 Square D 600 VAC 12 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D1286G7 is a full voltage non-reversing IEC contactor designed for motor control applications. This device operates at six hundred volts alternating current and supports a maximum load of twelve amps. The contactor features four poles including two normally open and two normally closed contacts. The design allows for easy mounting on DIN rail or direct panel installation. This product is suitable for various control systems and motor starters.

• Four poles with two normally open and two normally closed contacts.
• Rated for resistive loads up to twenty-five amps.
• Includes a built-in auxiliary contact, one normally open and one normally closed.

Product Highlights

Ideal for motor control and industrial automation, the LC1D1286G7 is versatile and helps integrate seamlessly into various applications.

Product Information

Standard Information

• Catalog Number: LC1D1286G7
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 12 Amps
• Coil Voltage: 120 VAC 50/60 Hz
• Contact Configuration: 2 NO + 2 NC
• Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.62 inches
• Weight: 0.80 lbs
