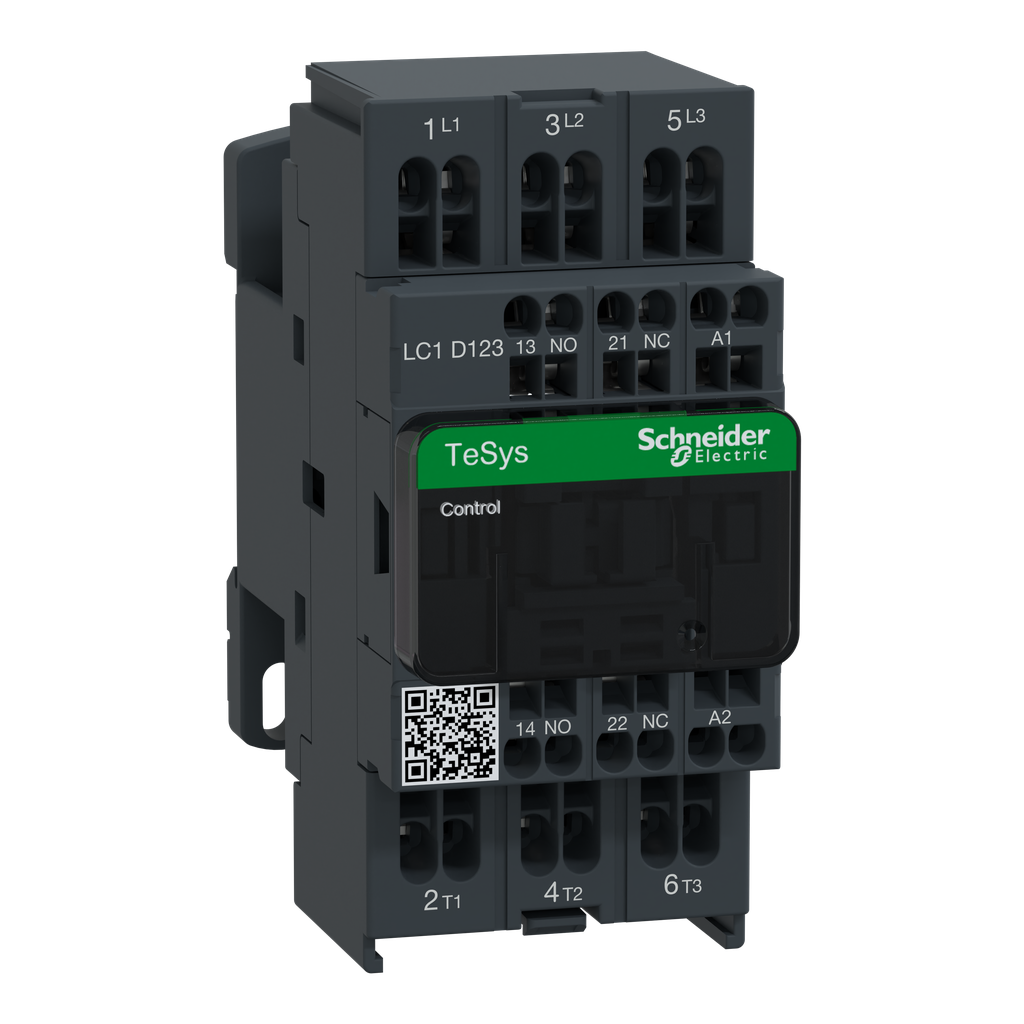

Schneider Electric LC1D123G7 Contactor 600 VAC 12 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

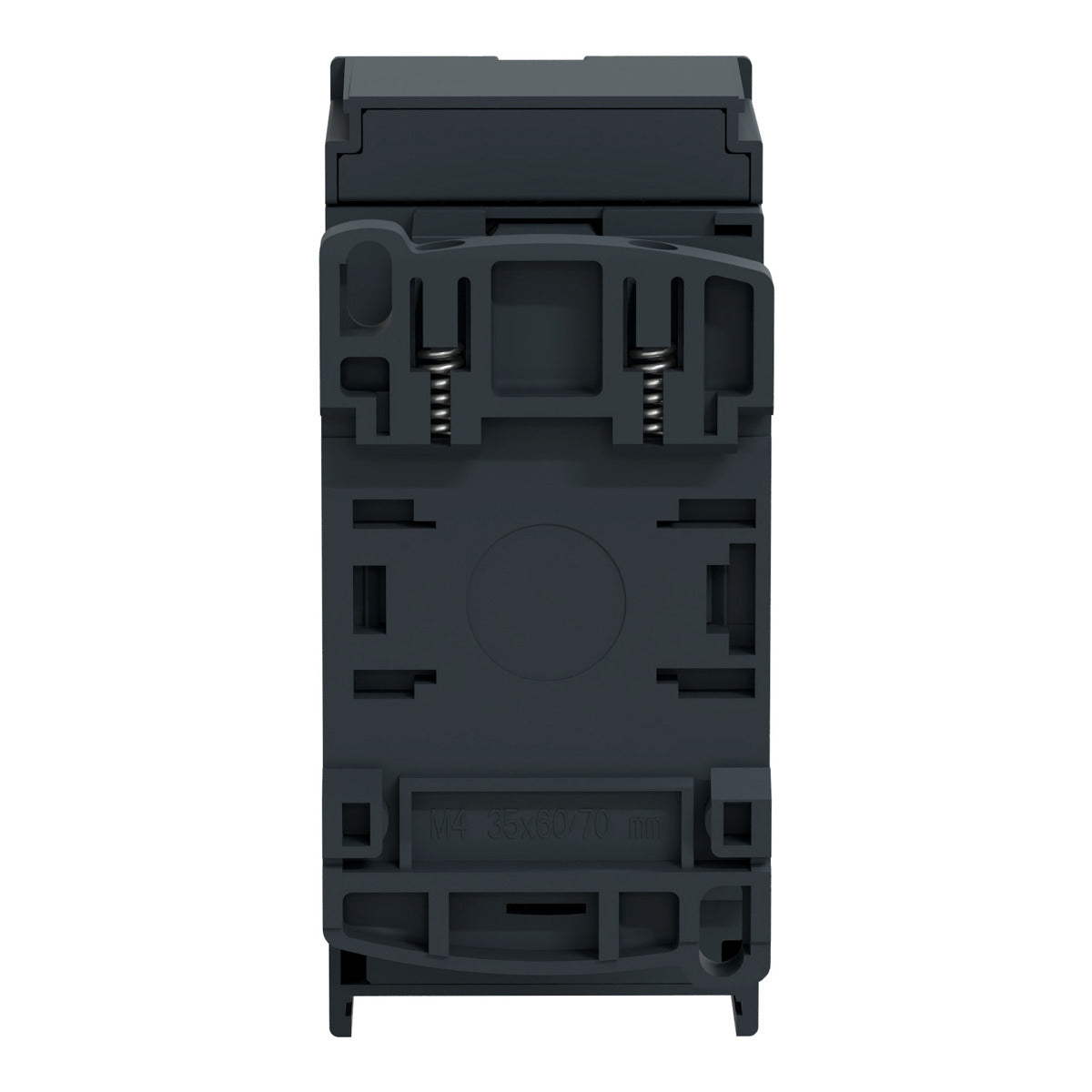

Schneider Electric LC1D123G7 is a contactor used for efficient control in industrial applications. This device operates at up to twelve amps and is rated for three hundred volts alternating current. It is suitable for three-phase electrical circuits while being able to manage resistive loads. The unit is designed for easy mounting on a DIN rail or directly to a panel.

• Rated for three hundred volts
• Designed for motor control
• Includes one normally open and one normally closed contact

Product Highlights

This contactor supports various applications including motor starters and can handle different types of motors. It is efficient, reliable, and easy to install, making it ideal for both residential and commercial power control.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D123G7

Technical Specifications

• Voltage Rating: 120 VAC
• Current Rating: 12 Amp
• Type: Contactor
• Height: 3.90 inches
• Width: 1.77 inches
• Depth: 3.39 inches
• Weight: 0.72 lbs
• Certification: UL, CSA, IEC
• Coil Voltage: 120 VAC 50/60 Hz
• Operating Temperature: -40 to 70 degrees Celsius
