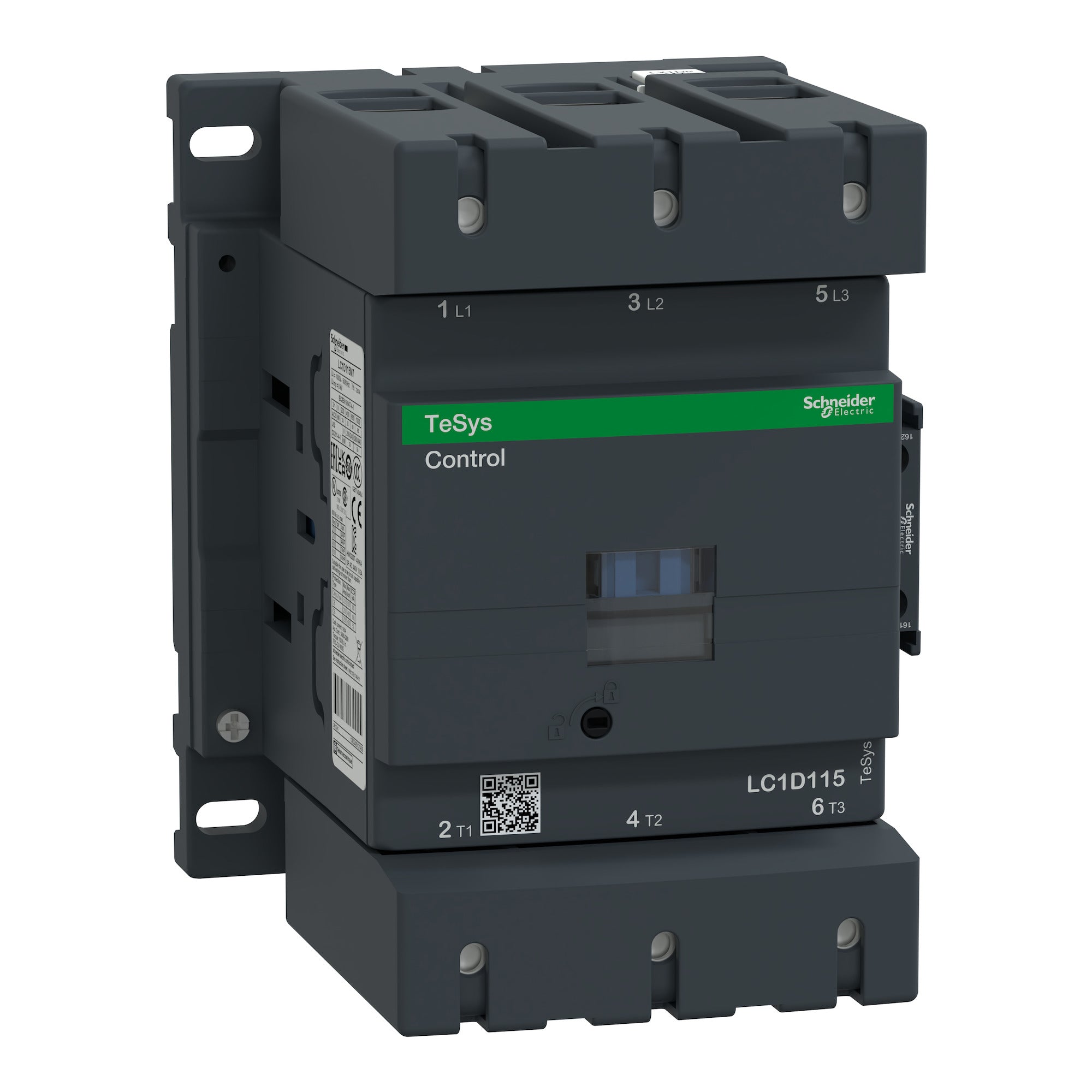

Schneider Electric LC1D115T7 Square D 600 VAC 115 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric presents the LC1D115T7, a reliable contactor designed for various control systems. This contactor supports motor starters in diverse applications. It features a rating of 115 amps and operates effectively at multiple voltage levels. Its design accommodates inductive loads and includes provisions for direct panel or DIN rail mounting.

• Rated for 600 VAC and up to 100 HP at three-phase.
• Includes built-in auxiliary contacts for additional functionality.
• Compatible with various load types, supporting resistive and motor control applications.

Product Highlights

Ideal for HVAC, industrial applications, and automation systems, the LC1D115T7 provides effective control of motor functions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 115 Amps
• Contact Configuration: 1 NO + 1 NC
• Coil Voltage: 480 V AC 50/60 Hz
• Dimensions: 6.22 inches tall, 4.72 inches wide, 5.35 inches deep
• Weight: 5.51 lbs
• Mounting Type: DIN Rail or panel
• Certifications: UL, CSA, IEC, and RoHS compliant
