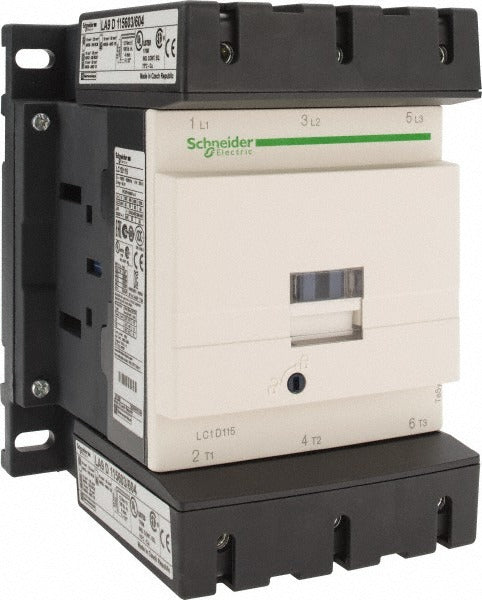

Schneider Electric LC1D115M7 Iec Contactor 115A 220V

Product Description

The SCHNEIDER ELECTRIC LC1D115M7 is a 3-pole, non-reversible IEC contactor rated at 115 amps at 440 volts AC, designed for motor control and power switching in industrial and commercial electrical systems. The coil operates at 220 volts AC at 50/60 Hz, making it suitable for international and domestic installations. The unit includes both a normally closed (NC) and normally open (NO) auxiliary contact configuration for control circuit integration. Licensed electricians and industrial controls technicians install this contactor in motor control centers, distribution panels, and machinery control cabinets where reliable IEC-rated switching is required.

This contactor is applied in heavy-duty industrial environments where 3-phase motor loads, HVAC equipment, compressors, pumps, and similar high-current applications require dependable on/off switching. Its non-reversible design suits single-direction motor loads. The 220V AC coil fits standard control transformer outputs commonly found in industrial control panels. The NC and NO auxiliary contacts allow integration with pilot lights, interlocks, and control relays within the same panel assembly.

Key Features

• 3-pole non-reversible design rated at 115 amps at 440 volts AC
• 220V AC coil with 50/60 Hz compatibility for domestic and international use
• Auxiliary contact configuration includes both NC and NO contacts for control circuit flexibility
• Certified to multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CCC, DNV, GL, GOST, and RoHS Compliant
• Compact form factor suited for motor control centers and industrial panel installation

Compatibility

Designed as an IEC-style contactor for use in industrial motor control, power distribution, and machinery control applications requiring a 3-pole, non-reversible switching device with a 220V AC control coil.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC and applicable local codes. De-energize and lock out the panel or control circuit before installing or wiring the contactor. Verify coil voltage and load amperage ratings match the application before connection. Auxiliary contact wiring should be confirmed against the control schematic before energizing the panel.
