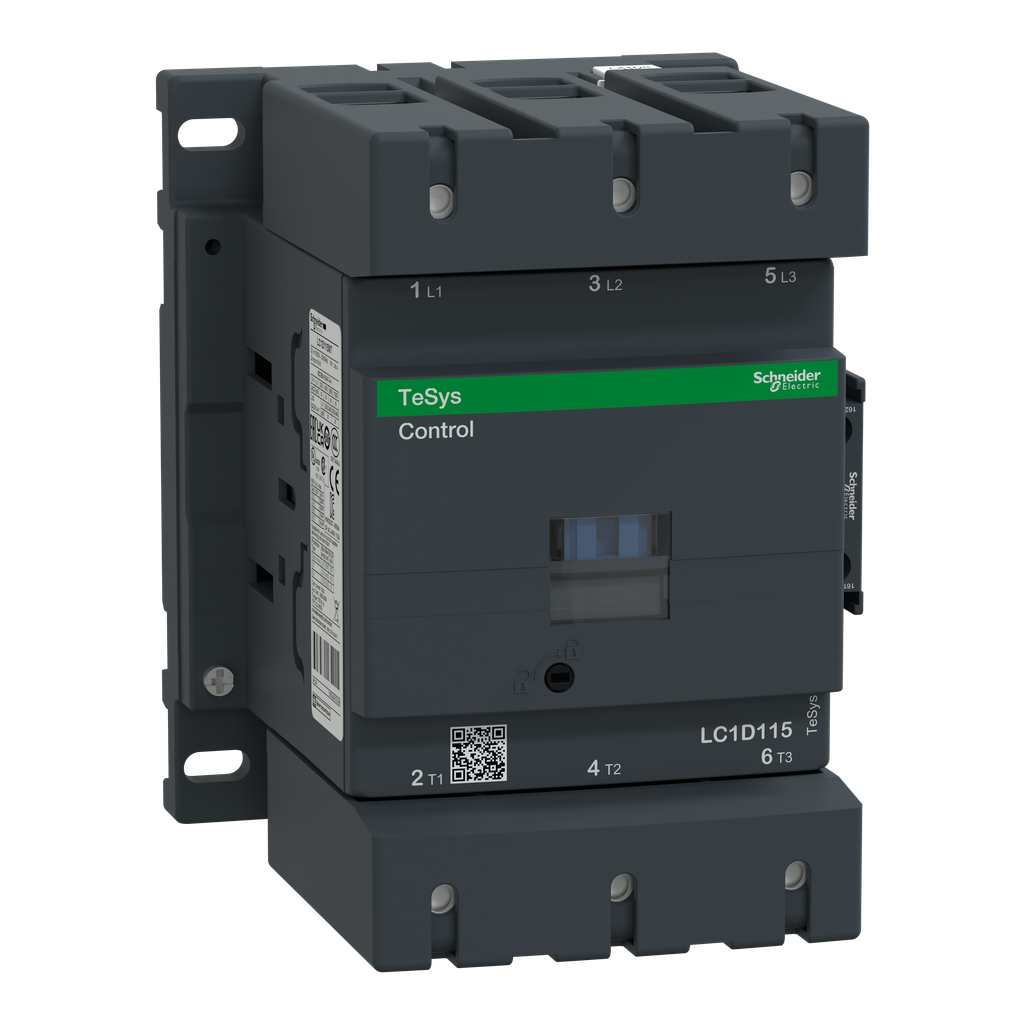

Schneider Electric LC1D115LE7 SQUARED IEC contactor, T 115A 3 Phase

Product Description

Schneider Electric LC1D115LE7 is a TeSys D IEC contactor designed for seamless integration into control systems. This contactor is suitable for motor starters in various applications. It accommodates inductive loads up to one hundred fifteen amps and resistive loads up to two hundred amps. The contactor supports both horsepower and kilowatt ratings for global compatibility.

• Rated at thirty horsepower at two hundred to two hundred eight volts AC
• Offers built-in auxiliary contacts
• Meets multiple certification standards including UL, CSA, and IEC

Product Highlights

The LC1D115LE7 features three poles and a coil voltage of two hundred eight AC at fifty or sixty hertz.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC1D115LE7
• Rated Current: 115A
• Phase: 3
• Height: 6.22 inches
• Width: 4.72 inches
• Depth: 5.35 inches
• Weight: 5.51 lbs
• Voltage: 1000 Volt
• Operating Temperature: -40 to 70 degrees Celsius
• Coil Voltage: 208 V AC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC
• Warranty: 18 months
• Country of Origin: Czech Republic
• RoHS Compliance: Yes
