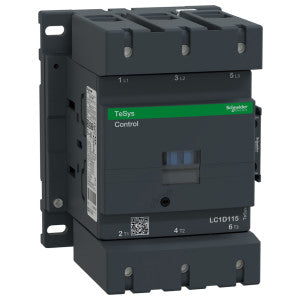

Schneider Electric LC1D115G7 Iec Contactor 115A 75HP

Product Description

The Schneider Electric LC1D115G7 TeSys Deca contactor is designed for various control systems. This IEC contactor features three poles and has a rating of one hundred fifteen amperes at AC3 and seventy-five horsepower at four hundred eighty volts alternating current. The contactor includes one normally open and one normally closed auxiliary contact, making it versatile for motor control applications. It operates with a one hundred twenty volt, fifty to sixty hertz coil and can be mounted on a DIN rail or panel. The unit meets certification standards of UL, CSA, IEC, CCC, EAC, and Marine.

• Three poles with ratings of 115A AC3 and 75 HP at 480VAC
• Includes one NO and one NC auxiliary contact
• Complies with UL, CSA, IEC, CCC, EAC and Marine standards

Product Highlights

This contactor is ideal for resistive loads and motor control in numerous electrical applications.

Product Information

Standard Information

• ECCN: EAR99
• Series: TeSys D

Technical Specifications

• Application: resistive load, motor control
• 3-Phase HP Rating (Max.): 100 hp
• Contact Operation: 3 NO
• Contactor Type: Non-Reversing
• IP Rating: IP20
• Max. Inductive Amps (AC3): 115A
• Max. Resistive Amps (AC1): 200A
• Height: 158 mm
• Depth: 136 mm
• Width: 120 mm
• No. of Poles: 3
