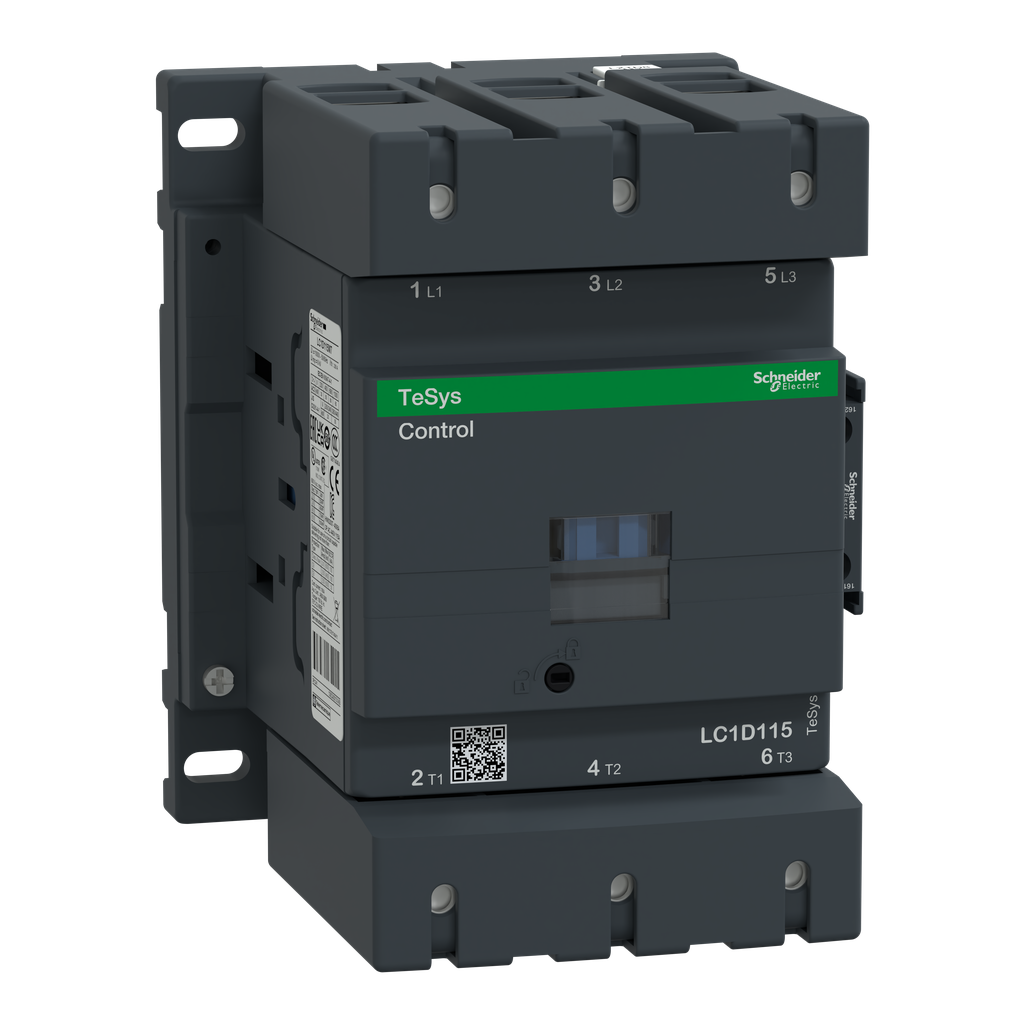

Schneider Electric LC1D115G6 Contactor 120V 1NO 1NC Screw Terminal

Product Description

The Schneider Electric LC1D115G6 Contactor offers reliable performance for industrial applications. Designed for controlling motors and resistive loads, this contactor ensures your systems run smoothly. It features 1 normally open and 1 normally closed auxiliary contact.

• 115A inductive 3-pole IEC contactor
• 120V AC coil voltage
• 1 NO and 1 NC auxiliary contacts

Product Highlights

The LC1D115G6 can control motor starters for various applications and handles up to 100HP at 600VAC. It's certified to multiple standards, making it a versatile and reliable choice.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D
• Catalog Number: LC1D115G6
• Product ID: 112030
• Country of Origin: Czech Republic
• Warranty: 18 months

Technical Specifications

• Range: TeSys D
• Mounting: DIN rail or panel
• Coil Voltage: 120V AC 60Hz
• Amps: 115 full-load, 200 resistive
• Voltage: 1000V AC max
• Dimensions: 6.22 inches tall, 4.72 inches wide, 5.35 inches deep
• Weight: 5.51 lbs
• HP Ratings: 30HP at 200-208VAC, 40HP at 240VAC, 75HP at 480VAC, 100HP at 600VAC
• Certifications: UL, CSA, IEC, CCC, EAC, Marine standards
