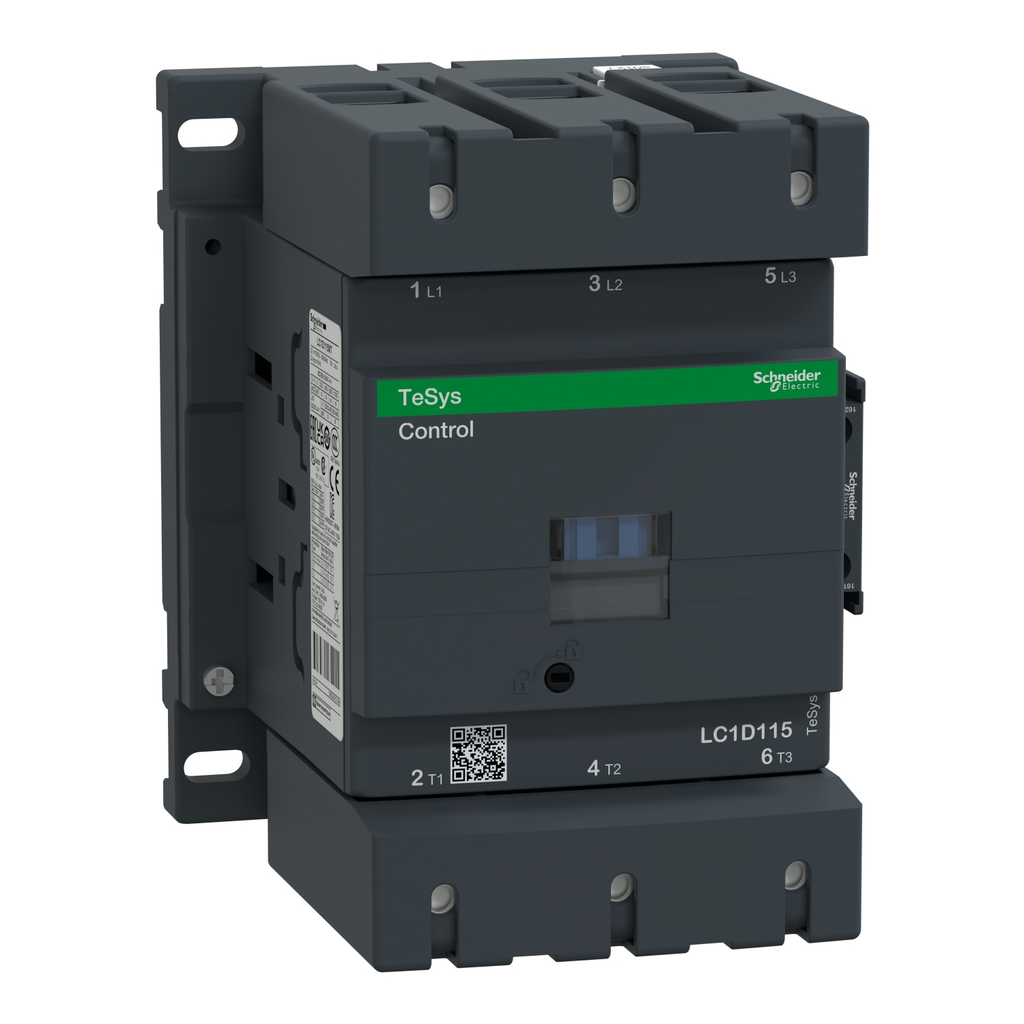

Schneider Electric LC1D115F7 Square D 600 VAC 115 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D115F7 is a 115 Amp, three-pole IEC contactor designed for reliable performance in various control systems. With its robust construction, this contactor is suitable for motor starters in diverse applications. It can control inductive loads up to 150 full-load amps and resistive loads up to 200 amps. The device features capability for 30HP at 200 to 208VAC, 40HP at 240VAC, 75HP at 480VAC, and 100HP at 600VAC in three-phase systems.

• Suitable for DIN rail or panel mounting.
• Has integrated one normally open and one normally closed auxiliary contact.
• Protective features achieving up to 100kA SCCR with proper circuit breakers.

Product Highlights

This contactor is UL, CSA, IEC, and RoHS/REACh certified, ensuring it meets strict regulatory standards. It is ideal for applications requiring dependable performance in resistive and motor control.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D115F7

Technical Specifications

• Voltage Rating: 1000 Volt
• Coil Voltage: 110 V AC 50/60 Hz
• Contact Rating: 200 A at 60 AC Power Circuit
• Weight: 5.51 lb
• Dimensions: 6.22 inches tall, 4.72 inches wide, 5.35 inches deep
• Country of Origin: Czech Republic
• Warranty: 18 months
• Applications: Motor control; Resistive load
