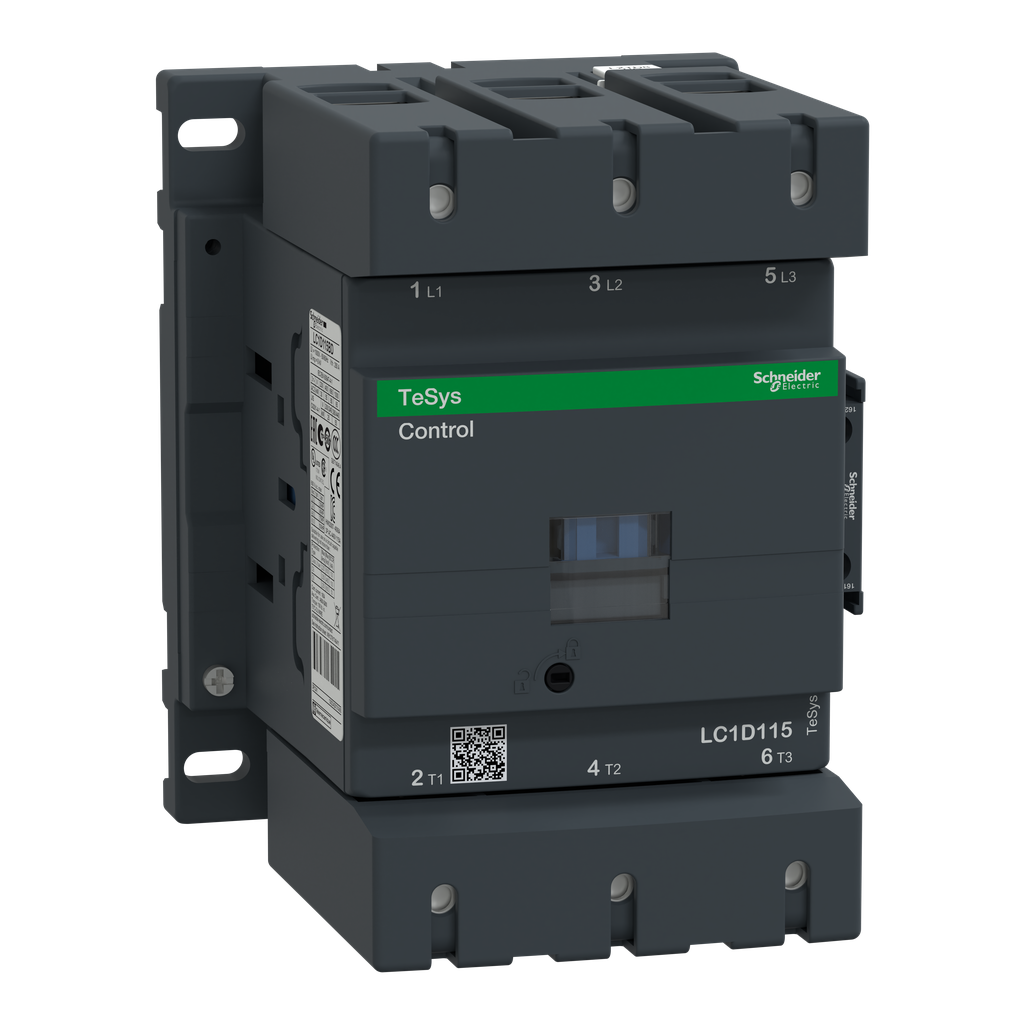

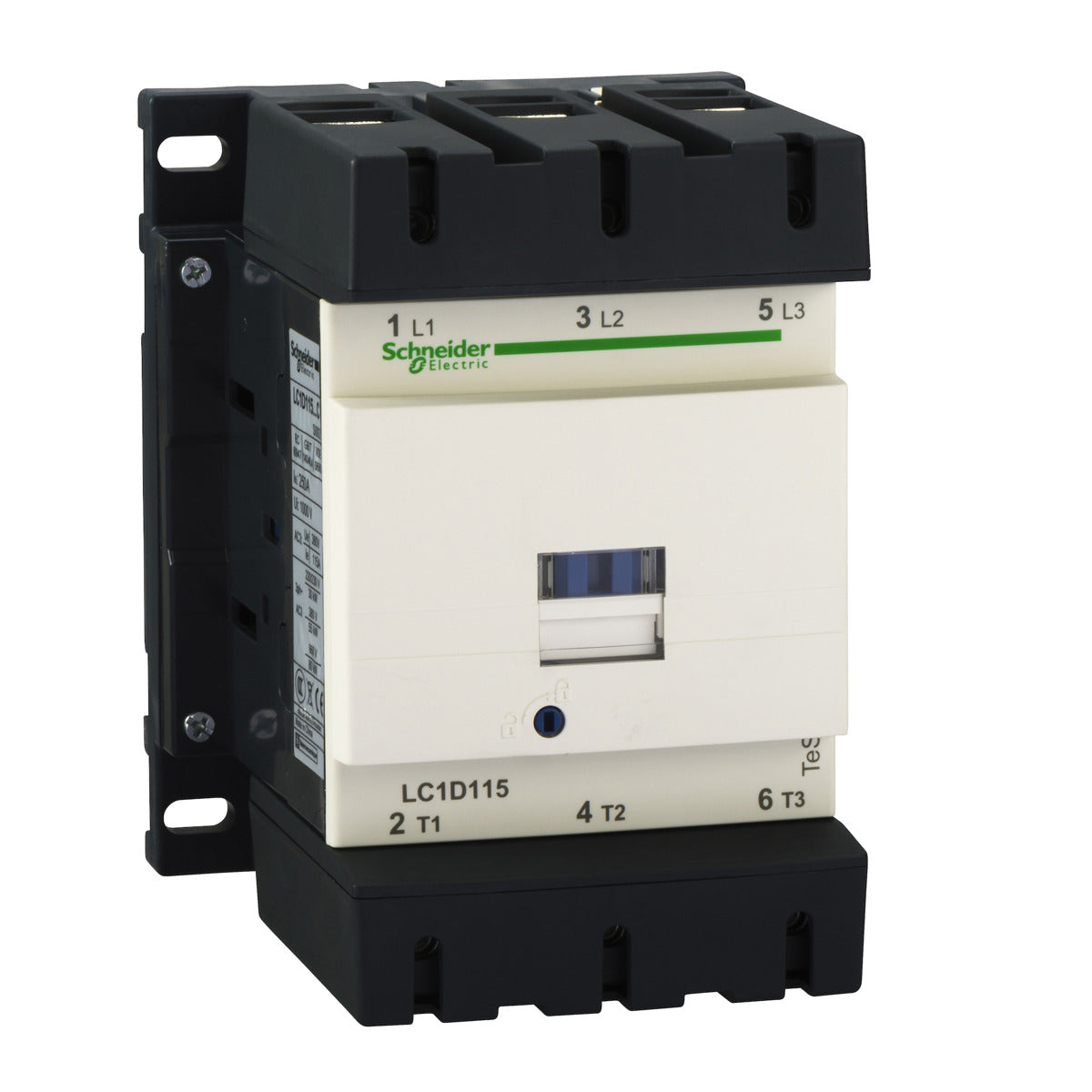

Schneider Electric LC1D115BD squared LC1D115BD IEC contactor, 115A, 3 pole, 24VDC coil

Product Description

Schneider Electric LC1D115BD is an IEC contactor designed for integration into control systems. This device creates motor starters suitable for various applications. Rated at 115A, the contactor supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

• Suitable for a range of motor ratings including 30HP to 100HP at different voltages.
• Includes a 24 VDC coil and features one normally open and one normally closed auxiliary contact.
• Meets numerous international certifications including UL and CSA.

Product Highlights

Ideal for reliable motor control across multiple applications, supported by an extensive accessory line for versatility.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D115BD

Technical Specifications

• Catalog Number: LC1D115BD
• Weight: 5.51 lb
• Depth: 5.35 inches
• Width: 4.72 inches
• Height: 6.22 inches
• Rated Voltage: 1000 Volt
• Coil Voltage: 24 V DC
• Contact Rating: 200 A 60 AC power circuit
