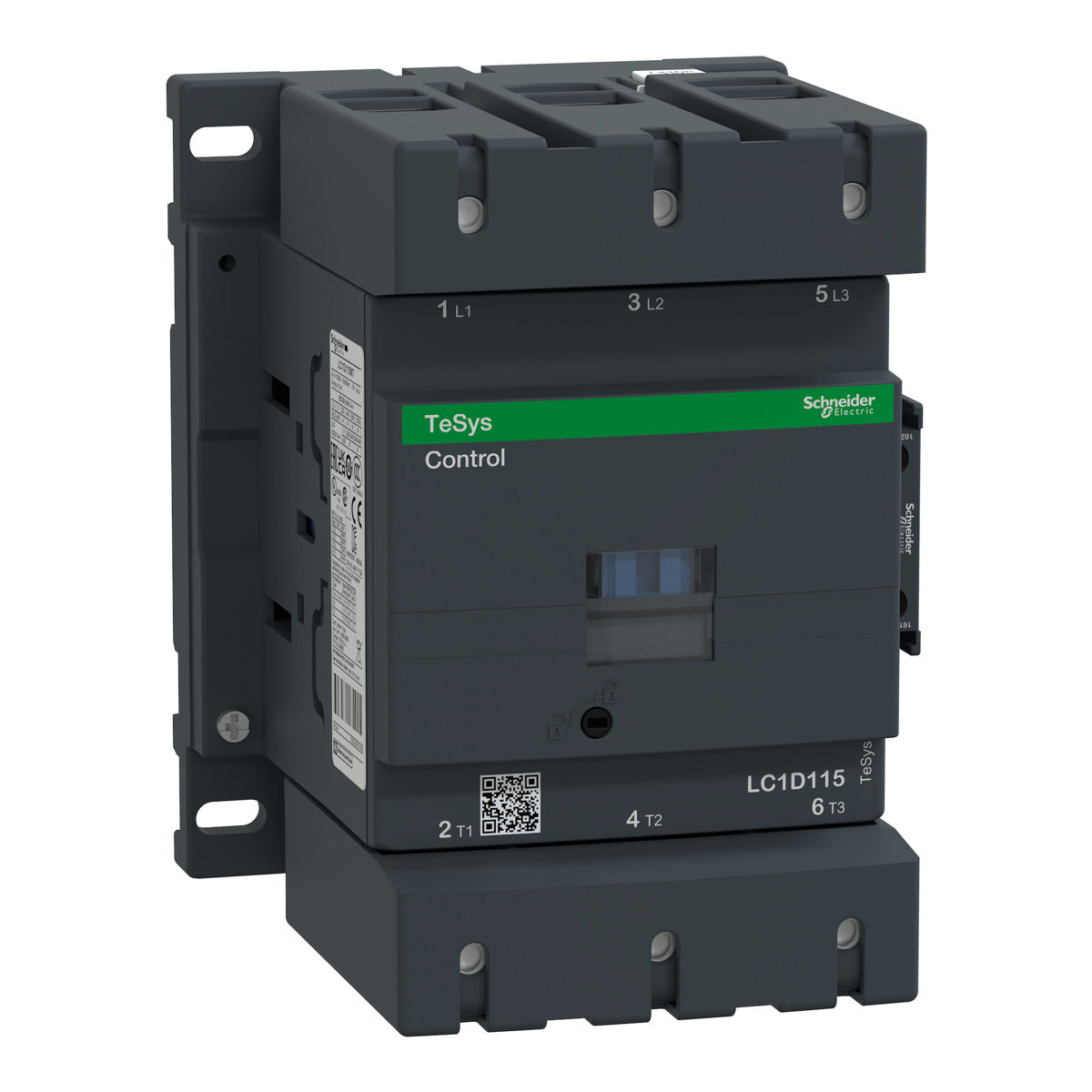

Schneider Electric LC1D115B7 IEC Contactor 115A 75HP 480VAC 3 Pole 24VAC Coil

Product Description

The Schneider Electric LC1D115B7 IEC Contactor is engineered for seamless integration in control systems for motor control and resistive load applications. This robust 115A, 3-pole contactor offers an efficient setup for both DIN rail and direct panel mounting, providing reliability across a diverse range of industrial settings.

• Optimal for controlling motors up to 75HP at 480VAC.
• Includes built-in auxiliary contacts (1 NO + 1 NC) and meets multiple international standards, including UL, CSA, and IEC.
• Features a 24VAC coil and provides up to 100kA Short Circuit Current Rating (SCCR) when used with appropriate circuit protection.

Product Highlights

Constructed for both functionality and ease of use, the LC1D115B7 includes a variety of connection options and is accompanied by an extensive array of compatible accessories for various applications. It is designed to support high-performance and safety in demanding environments.

Product Information

Standard Information

• Connection Type: Screw clamp terminals and connectors for various cable stiffness.
• Control: 24 VAC coil voltage enables precise operation and integration with automated systems.

Technical Specifications

• Dimensions: 6.22 inches in height, 4.72 inches in width, 5.35 inches in depth.
• Weight: 5.51 pounds.
• Safety Rating: Up to 100kA SCCR with appropriate circuit protection.
• Standards Compliance: UL, CSA, IEC, CCC, EAC, Marine standards, RoHS/REACh compliance for environmental safety.
