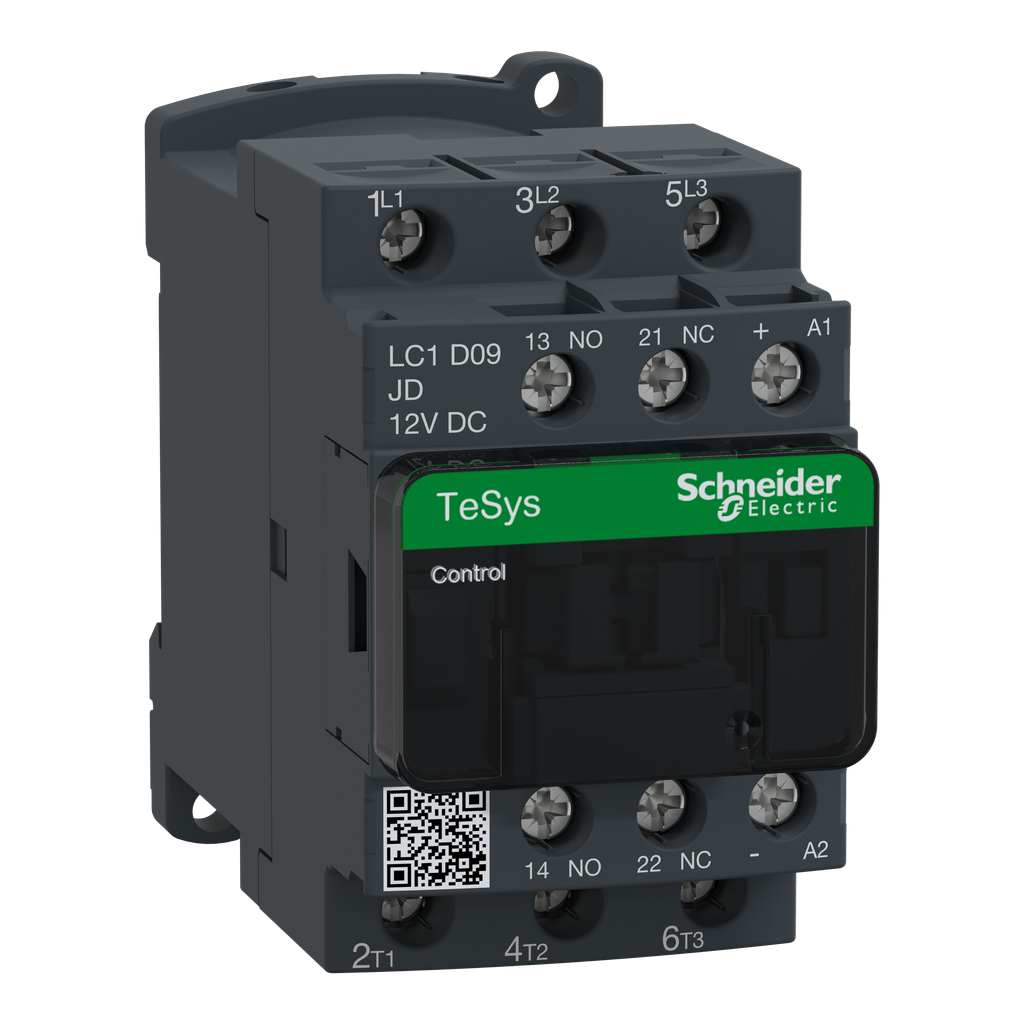

Schneider Electric LC1D09JD Square D Contactor 600 VAC 9 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D09JD is a three-pole, full-voltage IEC contactor rated for nine amps and operates efficiently at six hundred volts alternating current. This product is designed for use in motor control applications. The contactor integrates well within control systems, making it versatile across numerous applications. This model is suitable for both DIN rail mounting and panel installation, providing flexibility in setup.

• Rated for 20HP at 200-208VAC, 25HP at 240VAC, and 60HP at 480VAC three-phase.
• Contains one normally open and one normally closed auxiliary contact.
• Includes a twelve-volt direct current coil with a transient suppressor module.

Product Highlights

The Schneider Electric LC1D09JD contactor excels in resistive and inductive load management and meets multiple international standards including UL, CSA, and IEC certifications.

Product Information

Standard Information

• Catalog Number: LC1D09JD
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 600 VAC
• Current Rating: 9 Amps
• Height: 3.15 inches
• Width: 1.77 inches
• Depth: 3.39 inches
• Weight: 0.71 lbs.
• Coil Voltage: 12 V DC
• Operating Temperature: -40 to 70 degrees Celsius
