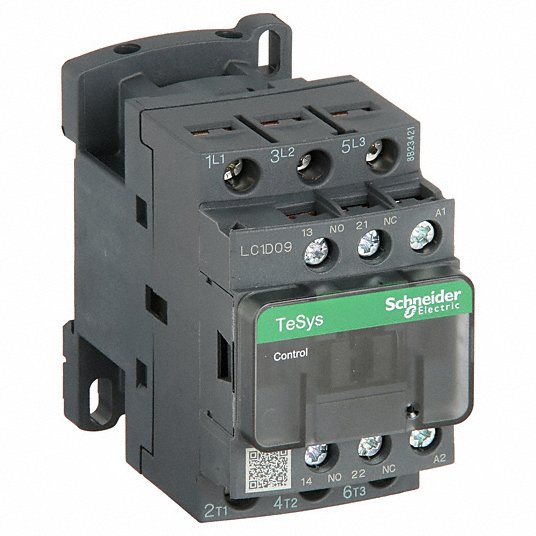

Schneider Electric LC1D09G7 Contactor Motor Control DIN Rail 3P 9A 1NO/1NC 120VAC

Product Description

The Schneider Electric LC1D09G7 Contactor is part of the TeSys D Series and suitable for motor applications up to nine amps. This three-pole contactor includes one normally open and one normally closed auxiliary contact. The control voltage required for optimal performance is 120VAC. It is designed for high reliability with a long mechanical and electrical life span, suitable for panel or DIN rail mounting.

• Rated for inductive motor applications up to nine amps.
• Contains one normally open and one normally closed auxiliary contact.
• Durable construction ensures extended mechanical and electrical life.

Product Highlights

Efficient for controlling motor applications, the LC1D09G7 offers versatility in mounting options and reliability across various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer Part Number: LC1D09G7

Technical Specifications

• Contact Current Rating: 9 A
• Control Voltage: 120 V
• Enclosure Type: IP2x
• Horsepower Rating: 8 hp
• Maximum Operating Temperature: 140 °F
• Minimum Operating Temperature: -40 °F
• Number of Poles: 3
• Power Rating: 5.5 kW
• Series: TeSys Deca Series
• Supply Voltage: 600 VAC
• Temperature Operating Range: -5 to 60 C
• Terminal Type: Box Clamp
• Type: IEC Contactor
• Voltage Rating: 600 V
• Main Power Pole Contact Form: 3NO
• Reversing Capability: Non-Reversing
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO/1NC
• Phase: Three
• Full Load Current - Inductive: 9 A
• Full Load Current - Resistive: 20 A
• Coil Voltage: 120V AC
• Frequency: 50/60 Hz
• Maximum Voltage Rating: 690V AC
• Wire Termination Type: Screw Clamp
• IP Rating: IP20
• Overall Height: 3.03 in
• Overall Width: 1.77 in
• Overall Depth: 3.39 in
