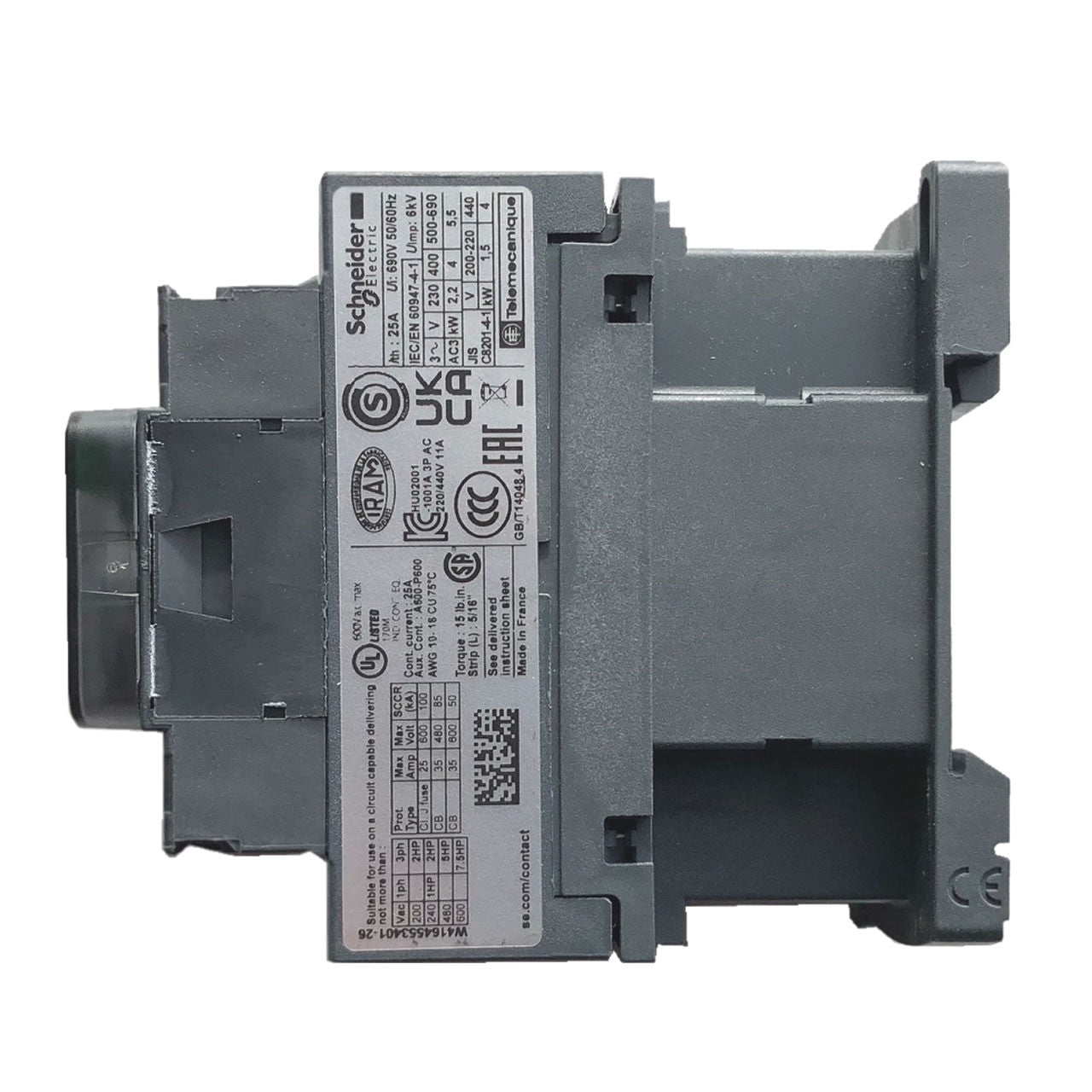

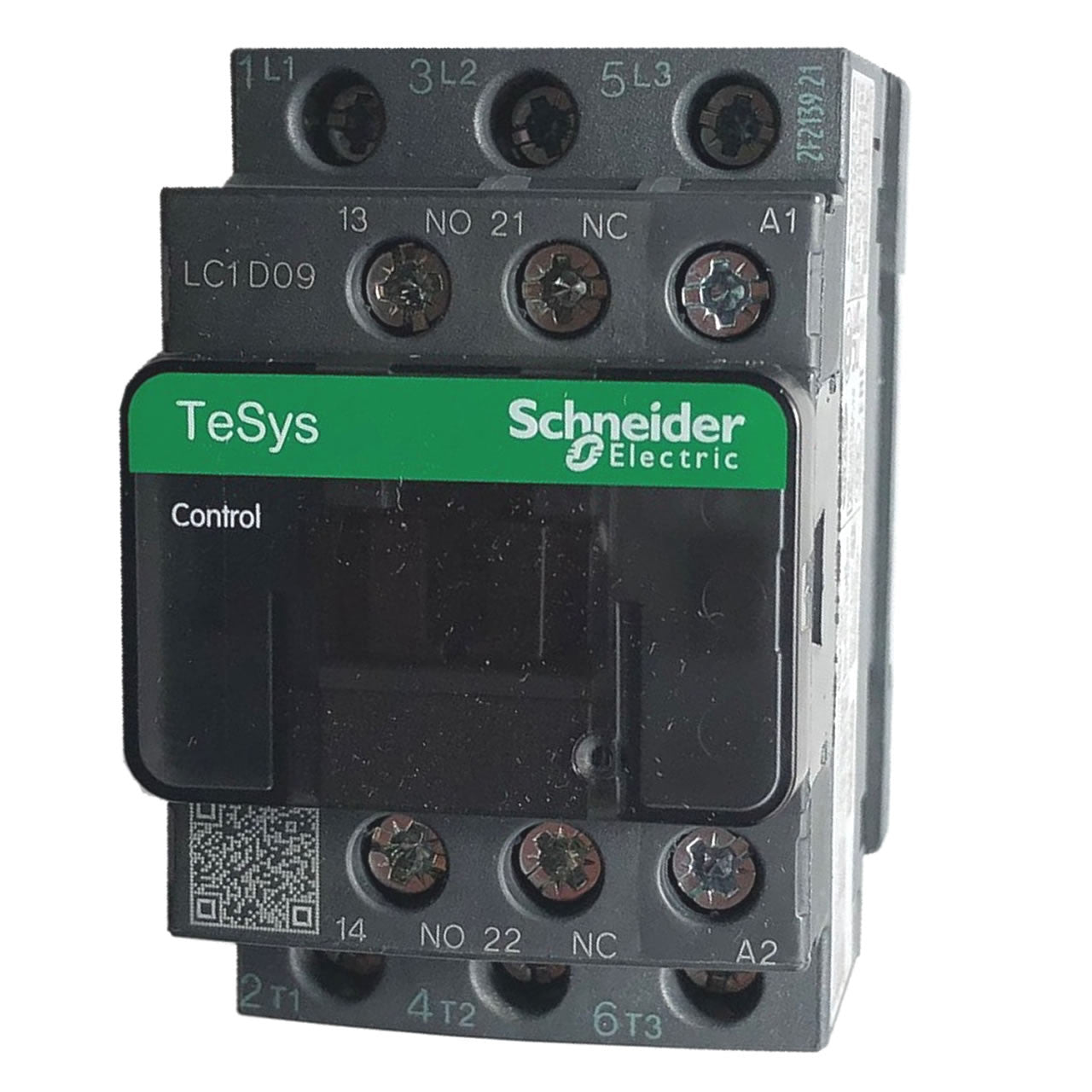

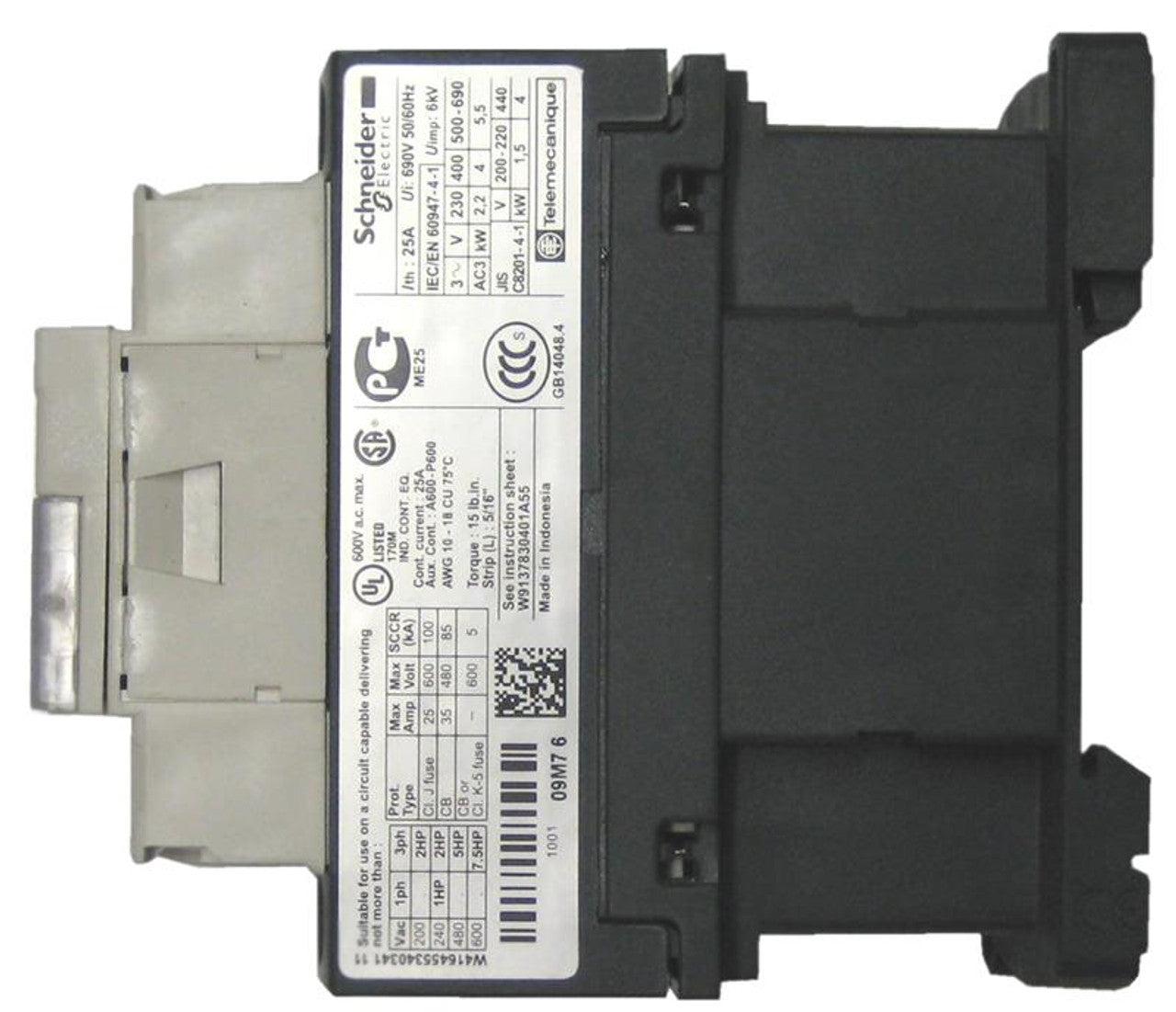

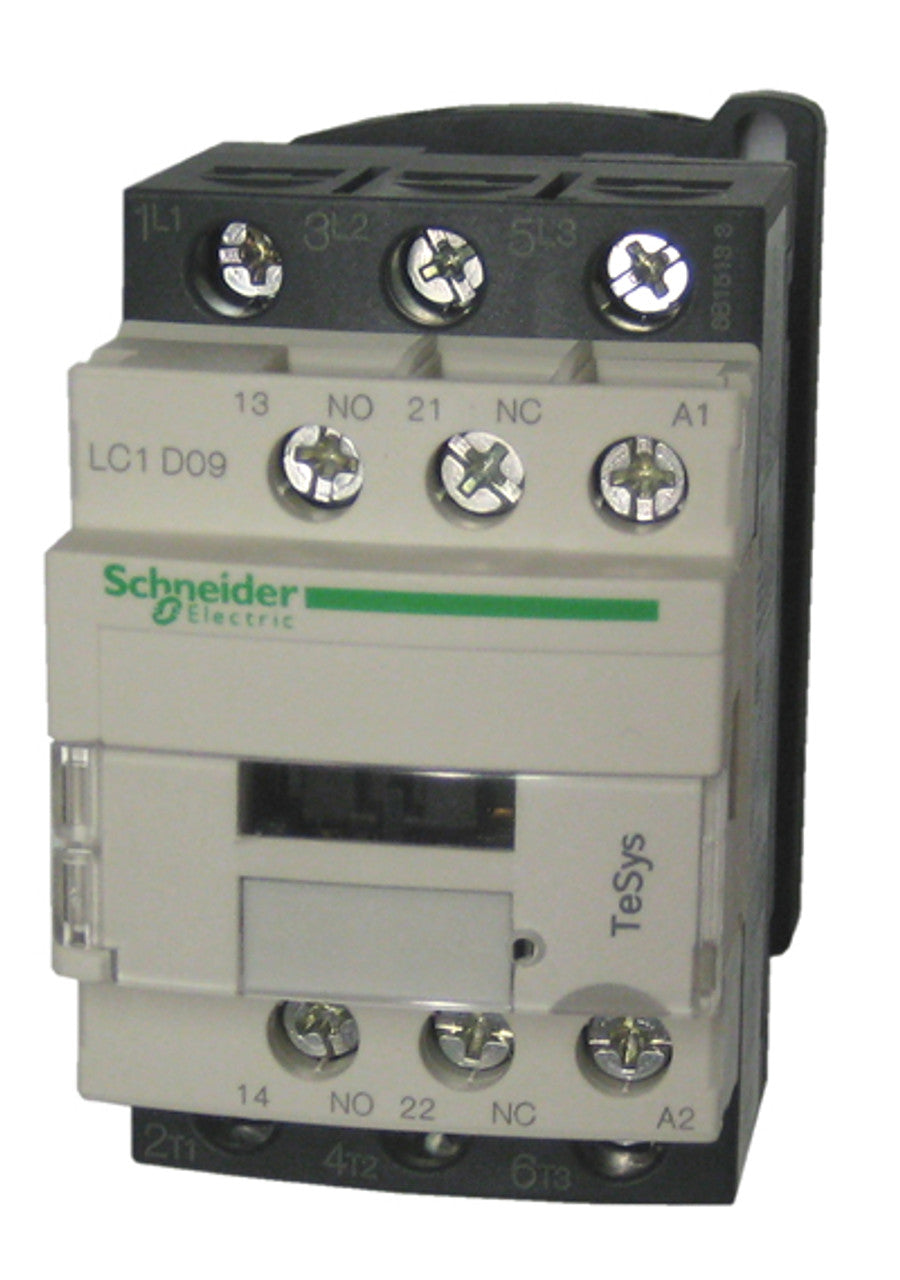

Schneider Electric LC1D09F7 Contactor 110VAC

Product Description

The Schneider Electric LC1D09F7 is a 3-pole contactor with a rating of 9 AMPS AC-3 and 20 AMPS AC-1. It operates on a 110V at 50/60Hz AC coil. This IEC contactor features a mounting setup that includes one normally open and one normally closed base mounted auxiliary contact. The screw terminals allow for easy connection. It is designed for use with standard 35MM DIN rails and is capable of handling up to 5 horsepower at 460 volts in a three-phase setup.

• Rated at 9 AMPS AC-3, 20 AMPS AC-1
• Includes one normally open and one normally closed auxiliary contact
• Standard screw terminal connections

Product Highlights

This contactor is ideal for industrial applications where reliable control of electrical equipment is needed.

Product Information

Standard Information

• Brand: Schneider Electric
• Current Type: AC

Technical Specifications

• Horsepower: 5 hp
• Coil Voltage: 110 V
• Number of Phases: 3
• MPN: LC1D09F7
• Number of Poles: 3-Pole
• Country of Manufacture: France
• AMP Rating: 9 A AC-3, 20 A AC-1
• Auxiliaries: 1 NO & 1 NC
• Terminals: Screw
