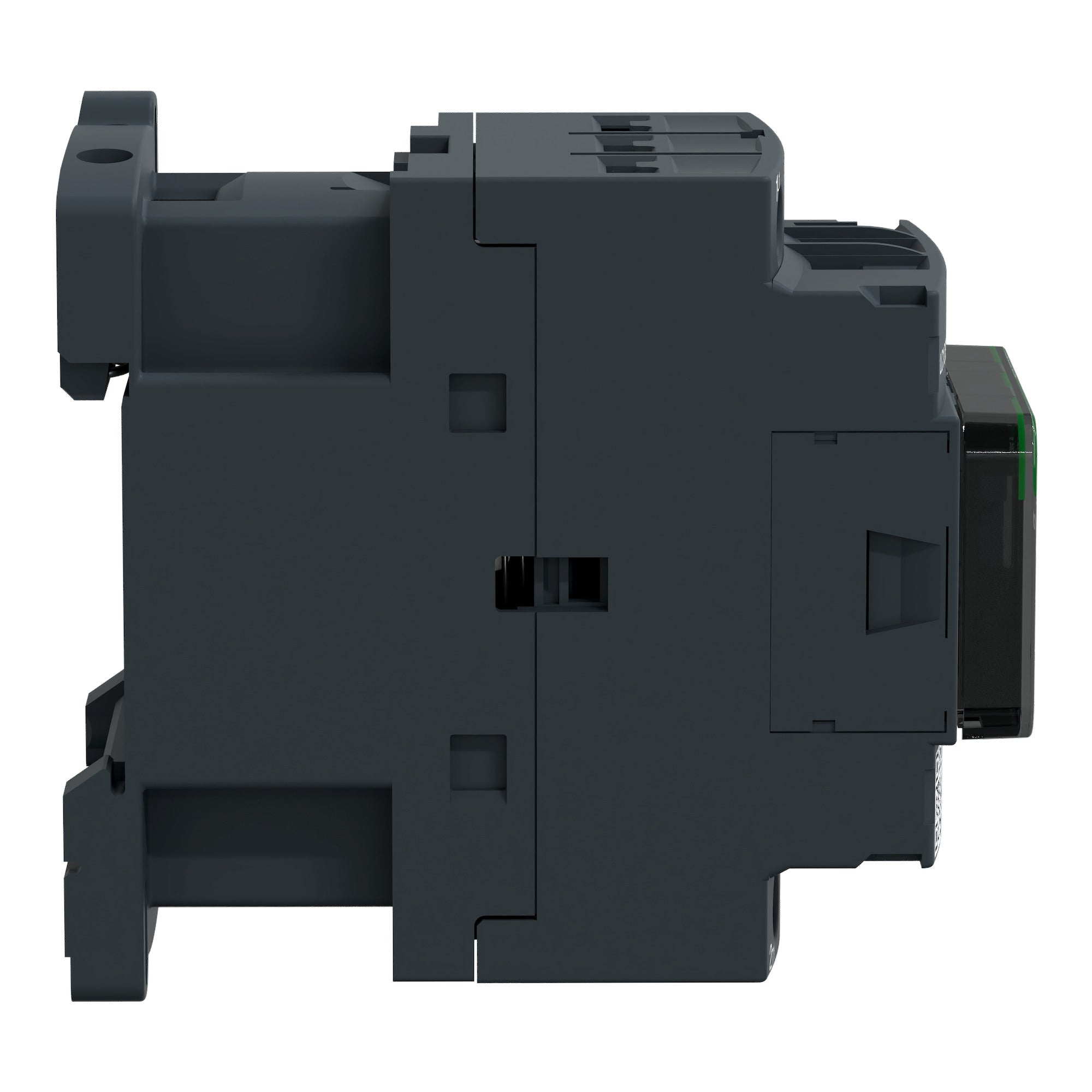

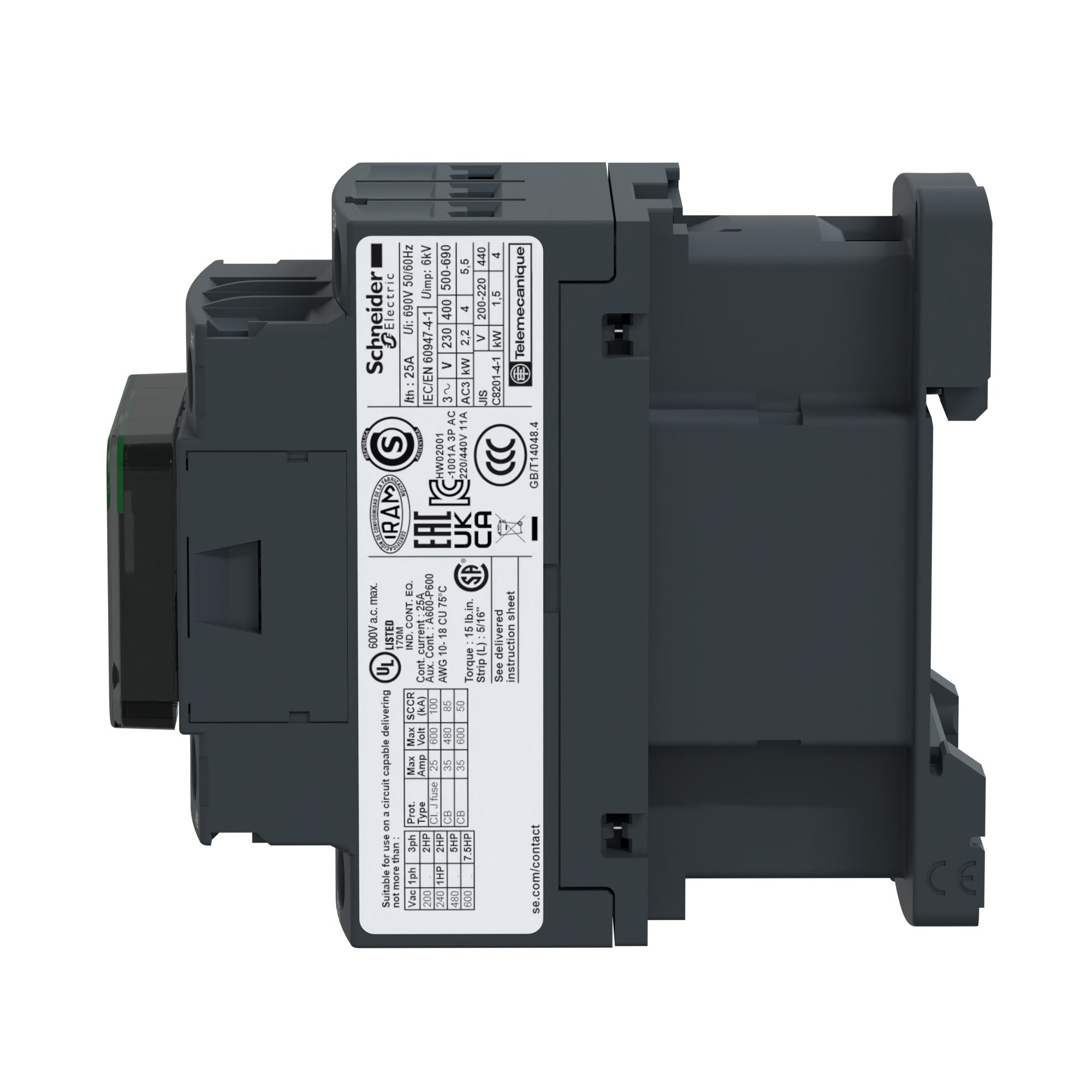

Schneider Electric LC1D09BL Square D 600 VAC 9 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

Schneider Electric LC1D09BL is a full voltage non-reversing IEC contactor rated for six hundred volts alternating current with a nine amp capacity. Ideal for motor control applications, this contactor is versatile for various systems. It can start motors and manage inductive loads.

• Rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC, and 60HP at 600VAC three-phase.
• Comes with a low consumption 24 VDC coil and includes built-in transient suppressor.

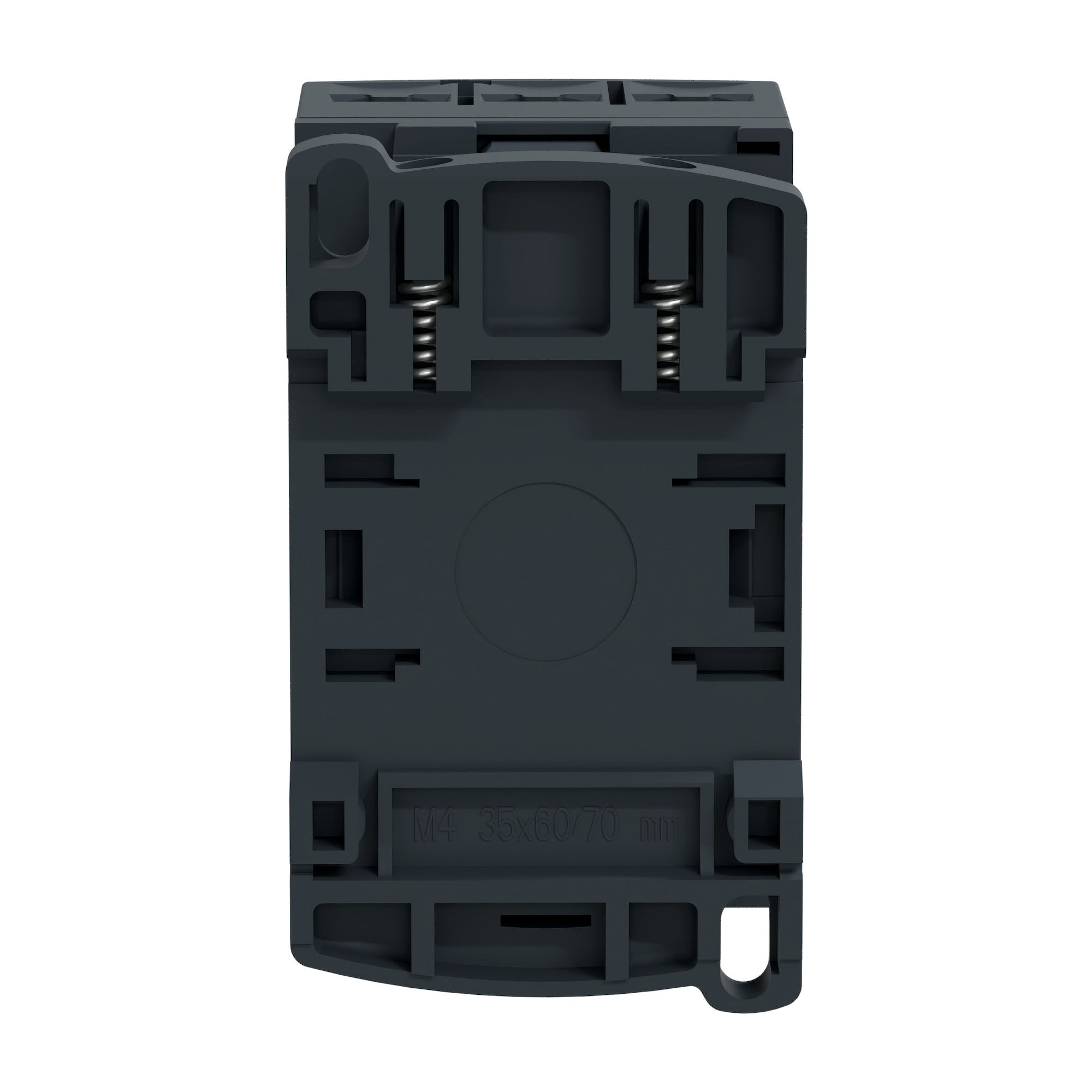

• Mountable on a DIN rail or panel, with screw clamp terminals for load connections.

Product Highlights

Designed for seamless integration in control systems, Schneider Electric's TeSys D contactors ensure reliability and performance in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LC1D09BL

Technical Specifications

• Rated Voltage: 600 VAC
• Current Rating: 9 Amps
• Poles: 3
• Auxiliary Contacts: 1 Normally Open, 1 Normally Closed
• Dimensions: 3.15 inches tall, 1.77 inches wide, 3.39 inches deep
• Weight: 0.71 lbs
• Coil Voltage: 24 VDC
• Certifications: UL, CSA, IEC, CCC, EAC
