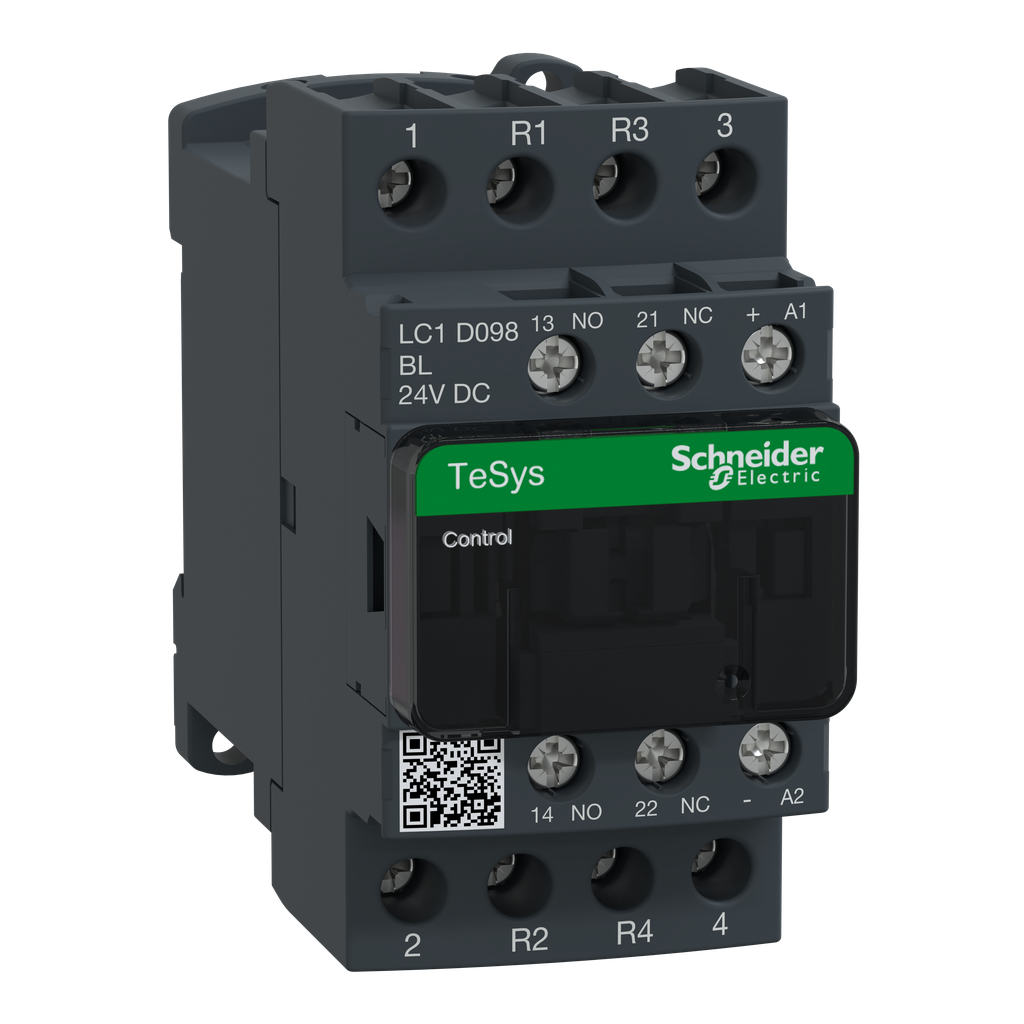

Schneider Electric LC1D098BL Square D 600 VAC 9 Amp 4-Pole Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D098BL is a square D 600 volt alternating current contactor designed for integration into various control systems. This contactor creates motor starters for diverse applications. It supports inductive loads up to 150 full-load amps and resistive loads up to 200 amps. The device offers 4 poles, featuring two normally open and two normally closed contacts. It can be mounted on a DIN rail or directly onto a panel.

• Rated for 20 amps with resistive loads.
• Includes a built-in low consumption coil rated at 24 volts DC.
• Features one normally open and one normally closed auxiliary contact.

Product Highlights

Ideal for motor control in various systems, the contactor meets multiple international standards including UL, CSA, and IEC certifications. Its compact size allows for easy installation, while an extensive accessory line supports numerous applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LC1D098BL

Technical Specifications

• Dimensions: 3.35 inches tall, 1.77 inches wide, 3.90 inches deep
• Weight: 1.16 lbs
• Coil Voltage: 24 V DC
• Operating Temperature: -40 to 70 degrees Celsius
• Rated Voltage: 600 V AC
• Applications: Primarily for resistive loads.
• Contact Configuration: 2 normally open and 2 normally closed contacts.
