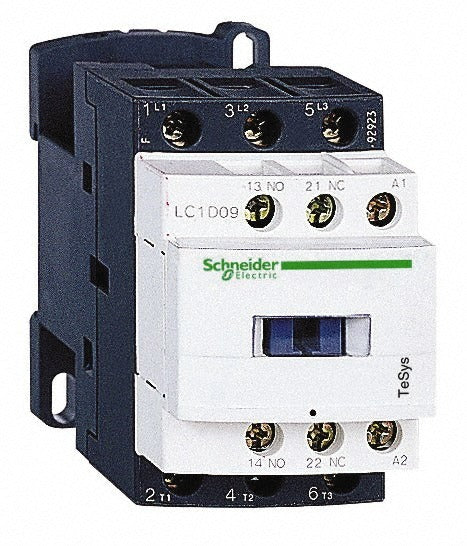

Schneider Electric LC1D096F7 Iec Contactor 3 Pole 110V

Product Description

The SCHNEIDER ELECTRIC LC1D096F7 is a 3-pole IEC contactor designed for non-reversible motor control and power switching applications in industrial and commercial electrical systems. It operates on a 110V AC coil voltage at 50/60 Hz and includes an auxiliary contact configuration of one normally closed (NC) and one normally open (NO). The LC1D096F7 is built to IEC and UL standards, making it suitable for installations that require internationally recognized component certification. Licensed electricians and industrial control technicians are the primary installers of this device.

This contactor is used in motor starters, load control panels, and automation enclosures where non-reversible 3-phase or single-phase switching is required. It fits residential, light commercial, and heavy industrial applications depending on the connected load. The NC and NO auxiliary contacts support control circuit interlocking, status indication, and feedback wiring within the panel. Its compact form factor suits standard DIN-rail or panel-mount enclosures where space is limited.

Key Features

• 3-pole non-reversible configuration for standard motor and load switching
• 110V AC coil voltage rated at both 50 Hz and 60 Hz for broad regional compatibility
• Integrated NC and NO auxiliary contacts for control circuit feedback and interlocking
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and additional international standards including CCC, DNV, GL, GOST, and RINA
• Compact dimensions allow installation in tight panel layouts

Compatibility

Designed as an OEM-style IEC contactor for use in non-reversible motor control circuits and industrial control panels requiring a 3-pole, 110V AC coil device with NC and NO auxiliary contacts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel before mounting or wiring the contactor. Verify coil voltage supply matches the rated 110V AC before energizing. Do not exceed the contactor rated load capacity as specified on the device nameplate.
