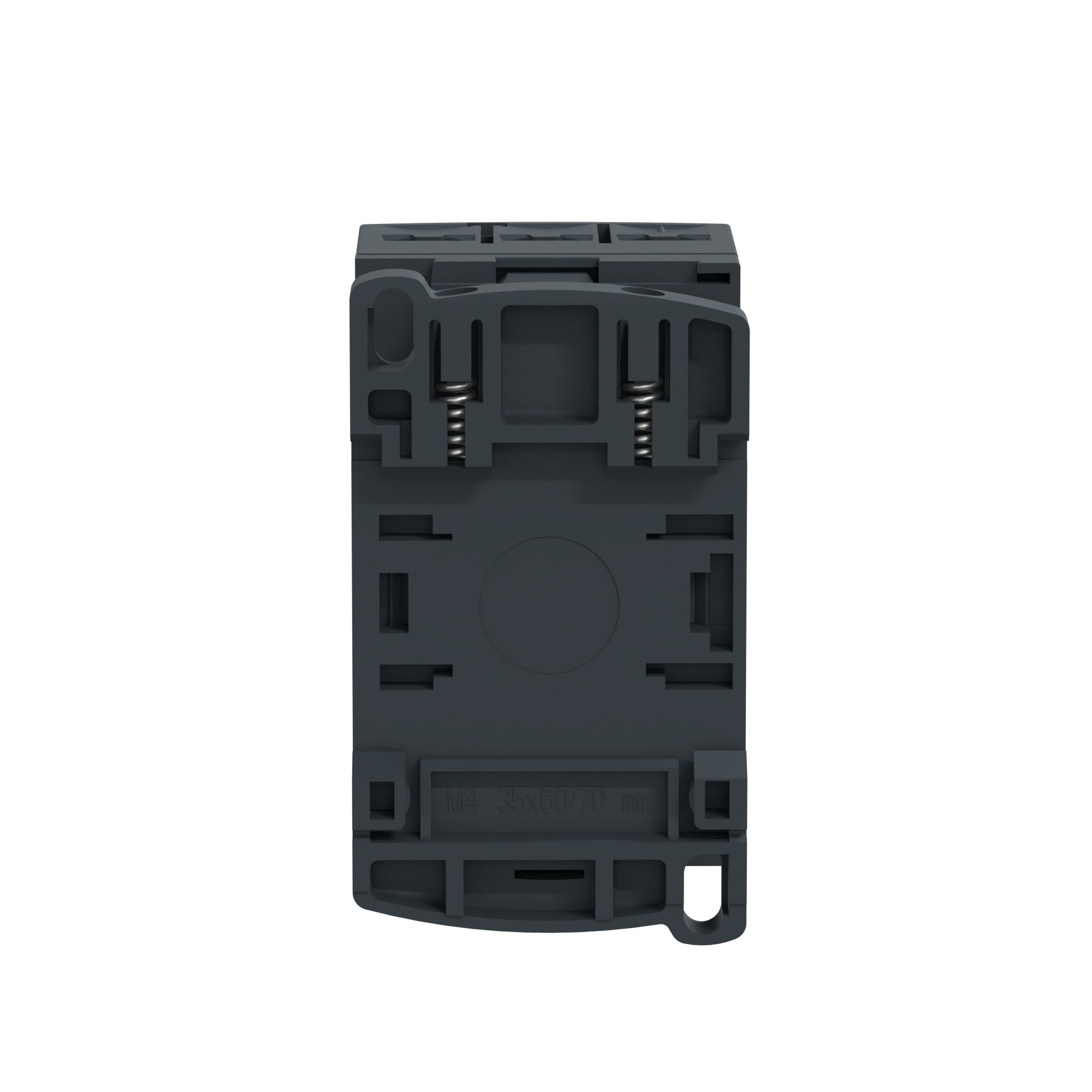

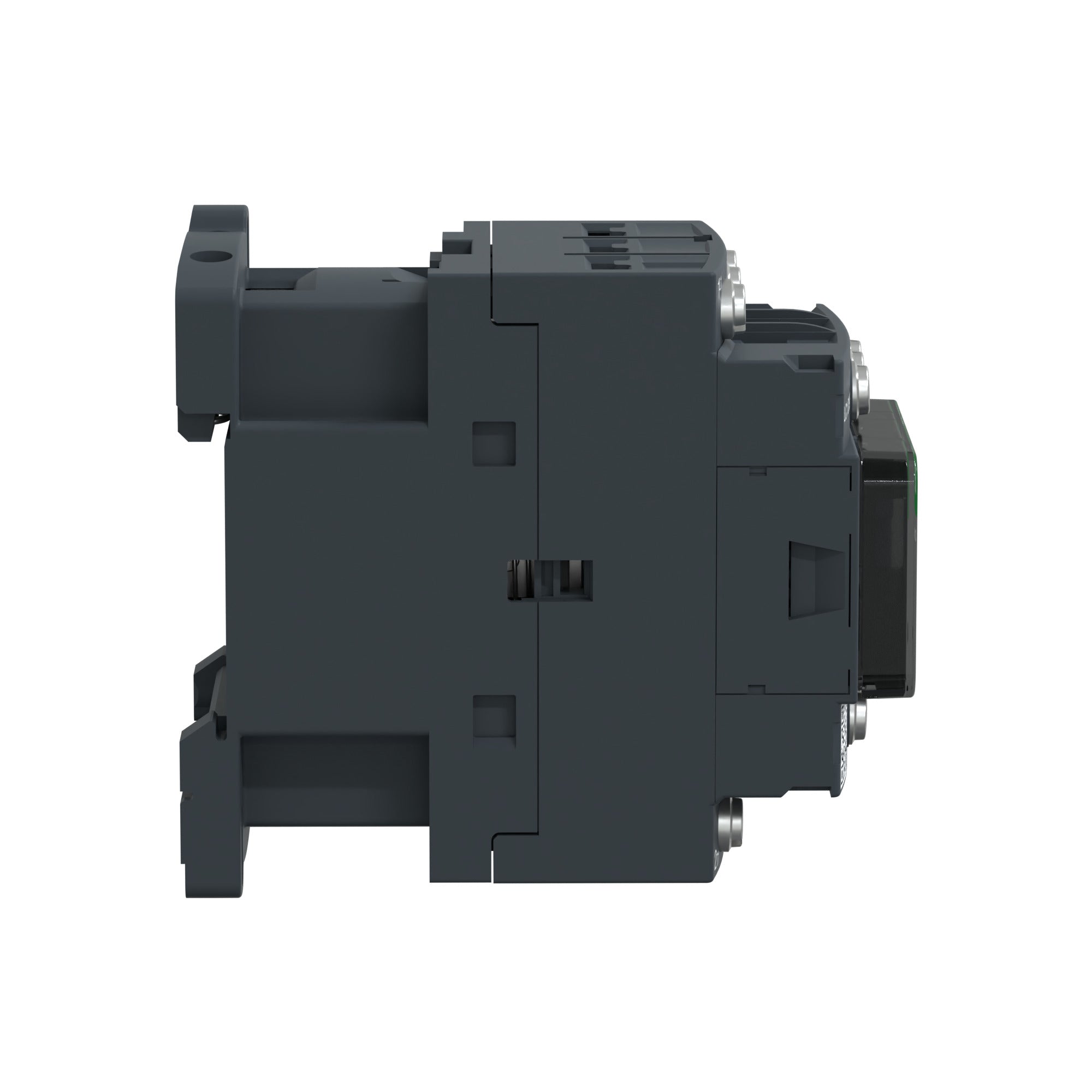

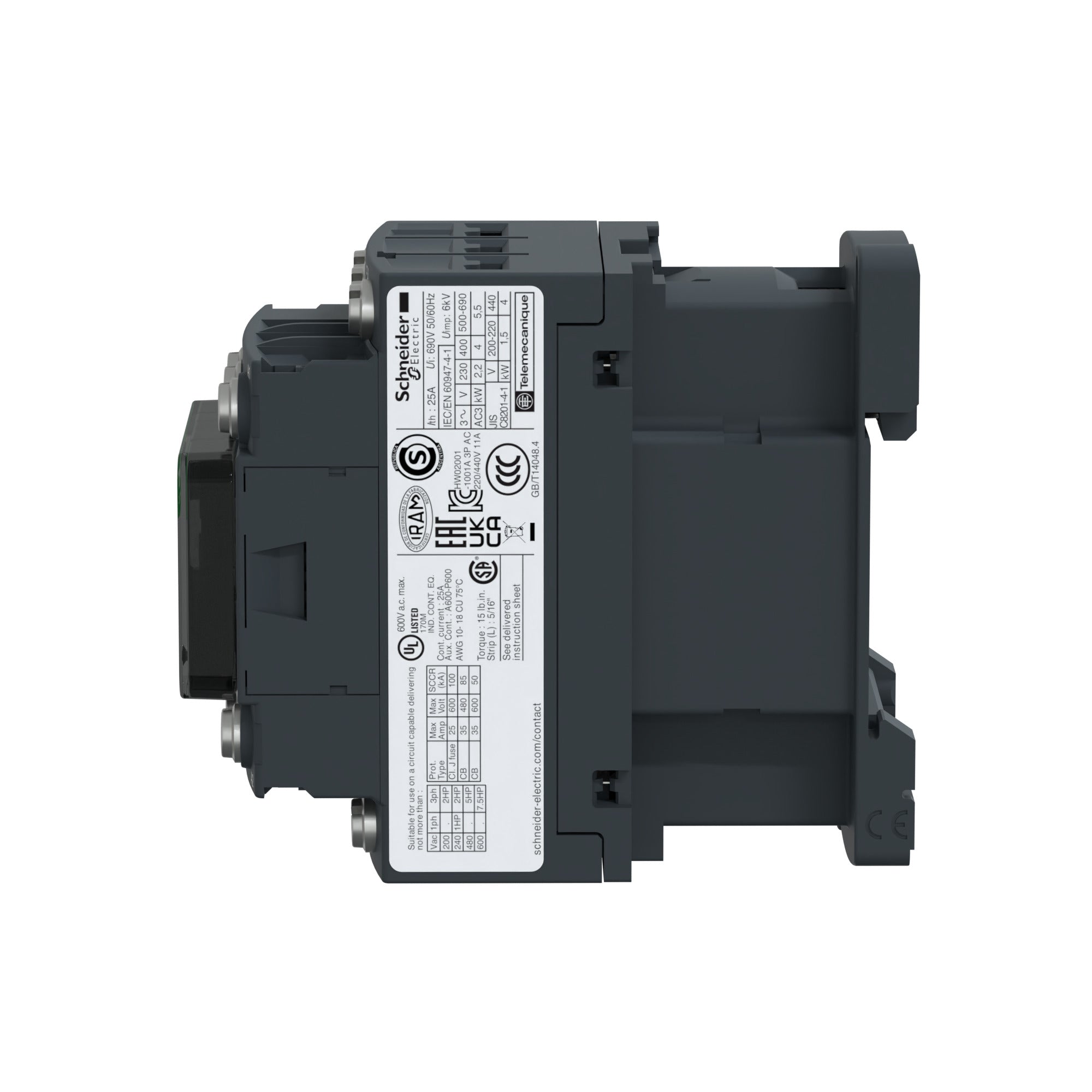

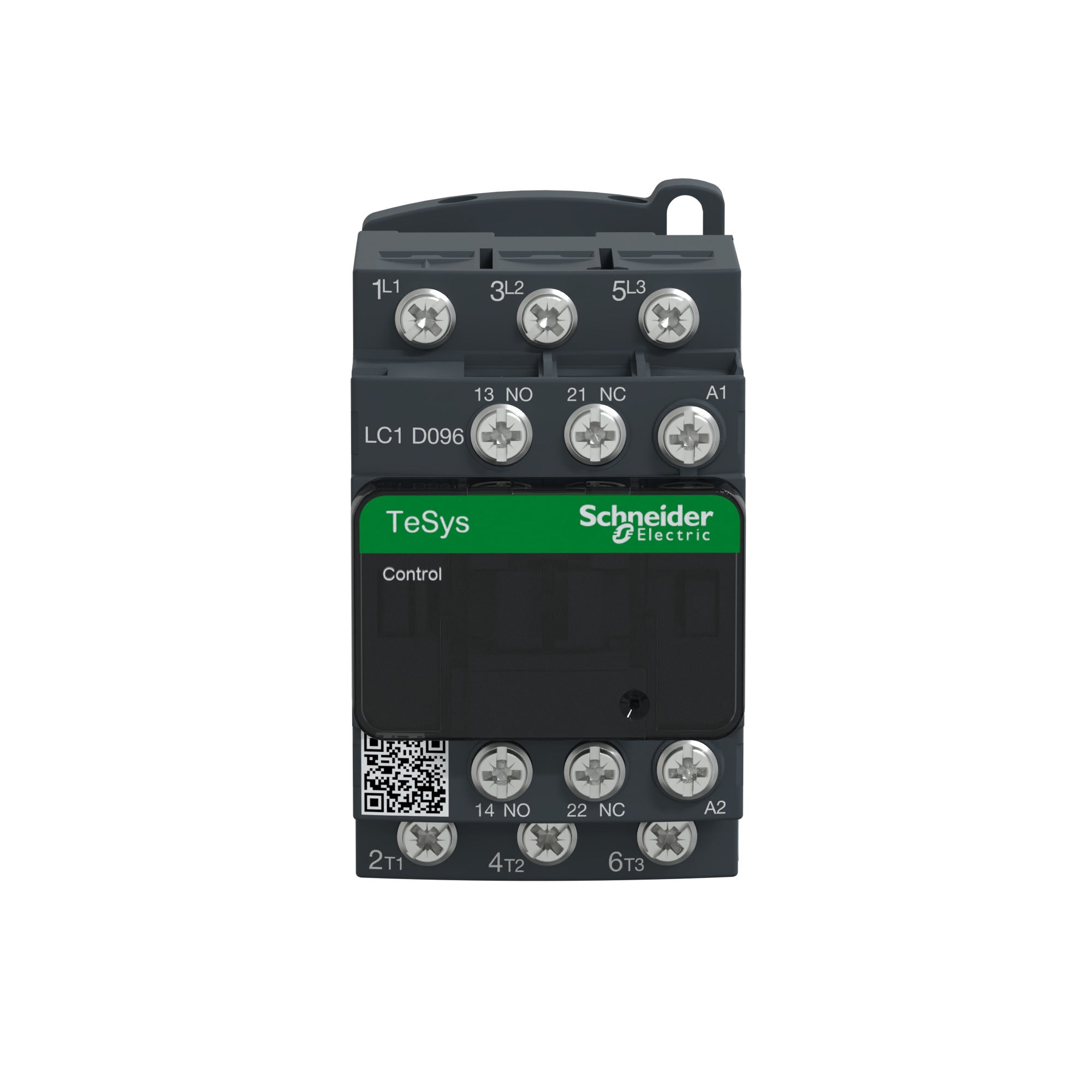

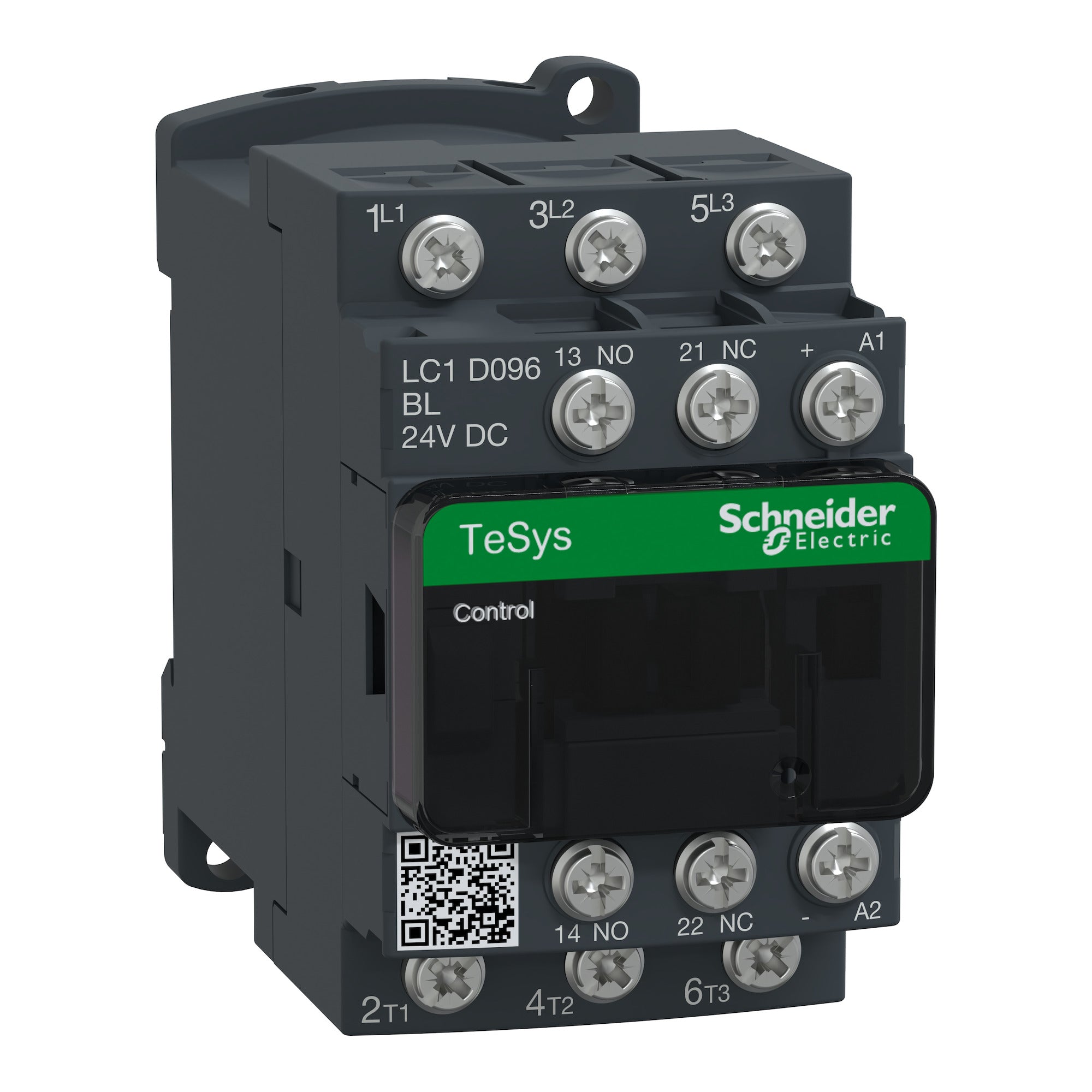

Schneider Electric LC1D096BL IEC Magnetic Contactor Nonreversing 9A 5HP 480VAC 3 Phase 3 Pole LC1D096BL

Product Description

The Schneider Electric LC1D096BL is a high-efficiency IEC magnetic contactor tailored for robust motor control and resistive load applications. Engineered for dependable performance, this nonreversing contactor is widely applicable in industrial settings.

• Features a low consumption 24VDC coil, optimizing electrical efficiency.
• Designed with 3 poles and 3 normally open contacts ensuring reliable connection.
• Supports up to 5 horsepower at 480 volts AC, making it suitable for heavy-duty operations.

Product Highlights

Equipped with built-in bidirectional peak limiting diode suppressor for enhanced circuit protection. Its open-style frame facilitates easier installation and maintenance.

Technical Specifications

• Coil Voltage: 24 V DC
• Connection Type: Lugs-ring terminals with an external diameter of 8 mm
• Contact Configuration: 3 NO, plus mechanically linked 1 NO + 1 NC and mirror contact 1 NC.
• Mounting: Can be installed on a rail or plate
• Operating Cycles: Operates between 25 to 400 Hz
