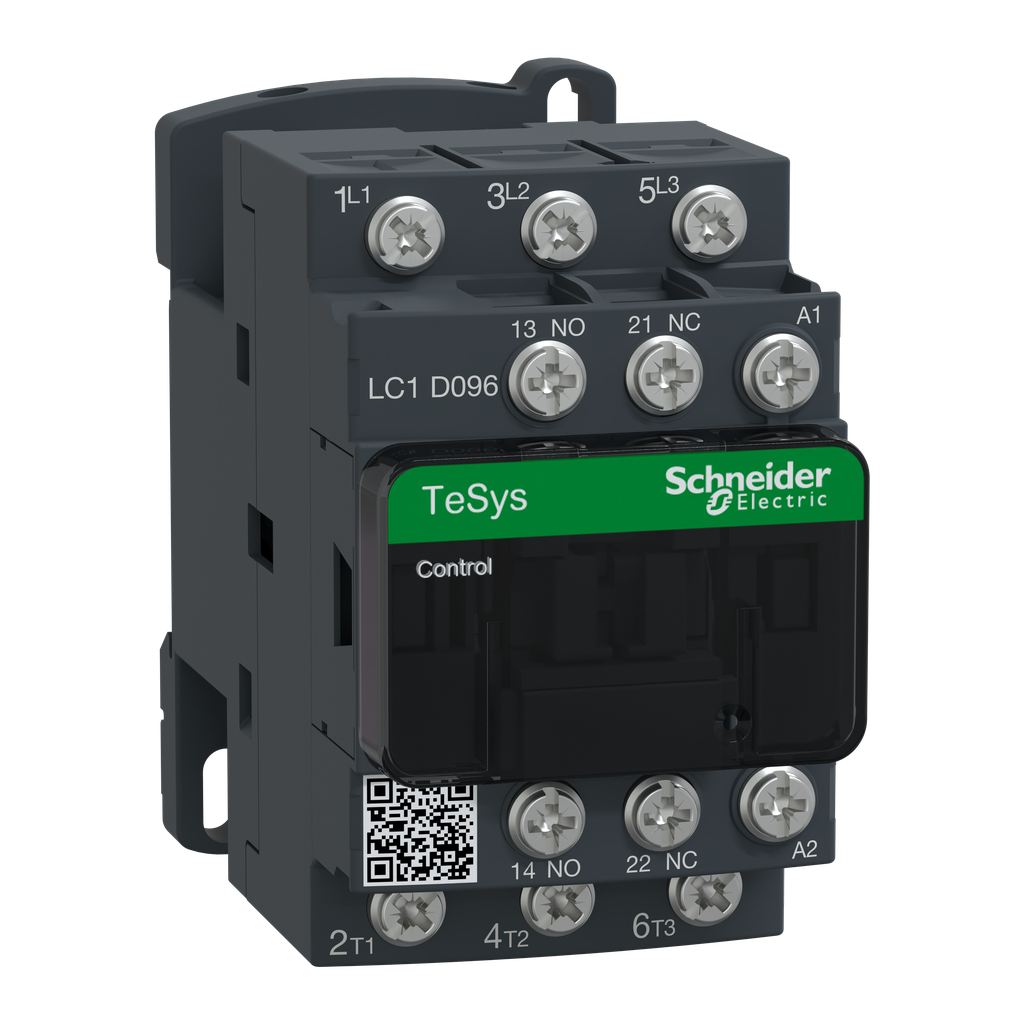

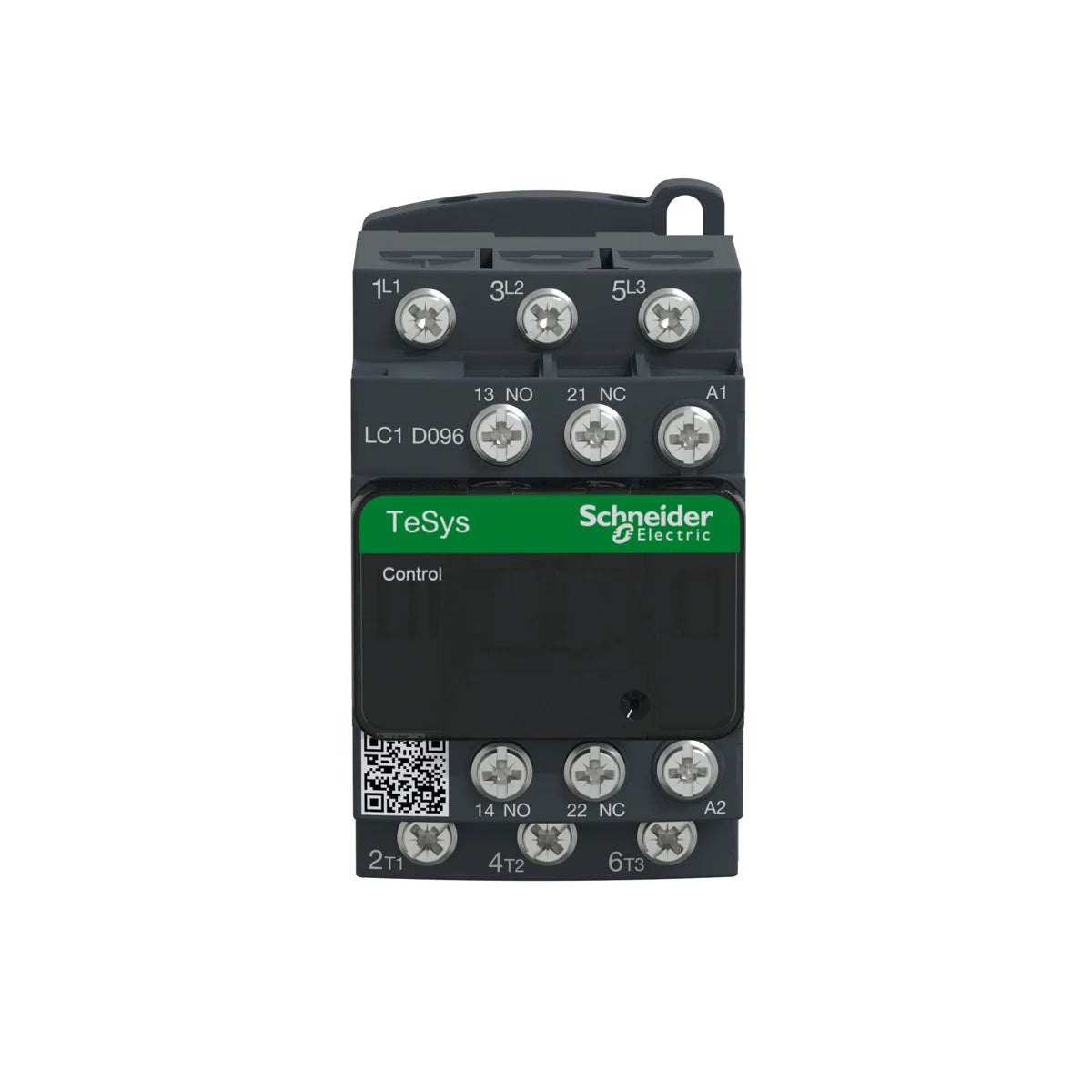

Schneider Electric LC1D096B7 IEC Contactor 9A 5HP at 480VAC

Product Description

Schneider Electric LC1D096B7 is an IEC contactor designed for use in control systems. It is suited for creating motor starters across various applications. This contactor supports inductive motor applications up to 150 full-load amps and can handle resistive loads of up to 200 amps.

• Rated for 2HP at 200 to 208VAC, 2HP at 240VAC, 5HP at 480VAC, and 7.5HP at 600VAC for three-phase connections
• Supports single-phase loads of 0.33HP at 115VAC and 1HP at 240VAC
• Includes one normally open (NO) and one normally closed (NC) auxiliary contact as standard

Product Highlights

The LC1D096B7 features a compact design allowing for DIN rail or direct panel mounting. It is equipped with a 24V AC coil and complies with multiple international standards including UL and CSA.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LC1D096B7

Technical Specifications

• Height: 3.15 inches
• Width: 1.77 inches
• Depth: 3.39 inches
• Weight: 0.71 lbs
• Coil Voltage: 24 V AC 50/60 Hz
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Country of Origin: Indonesia
• Warranty: 18 months
