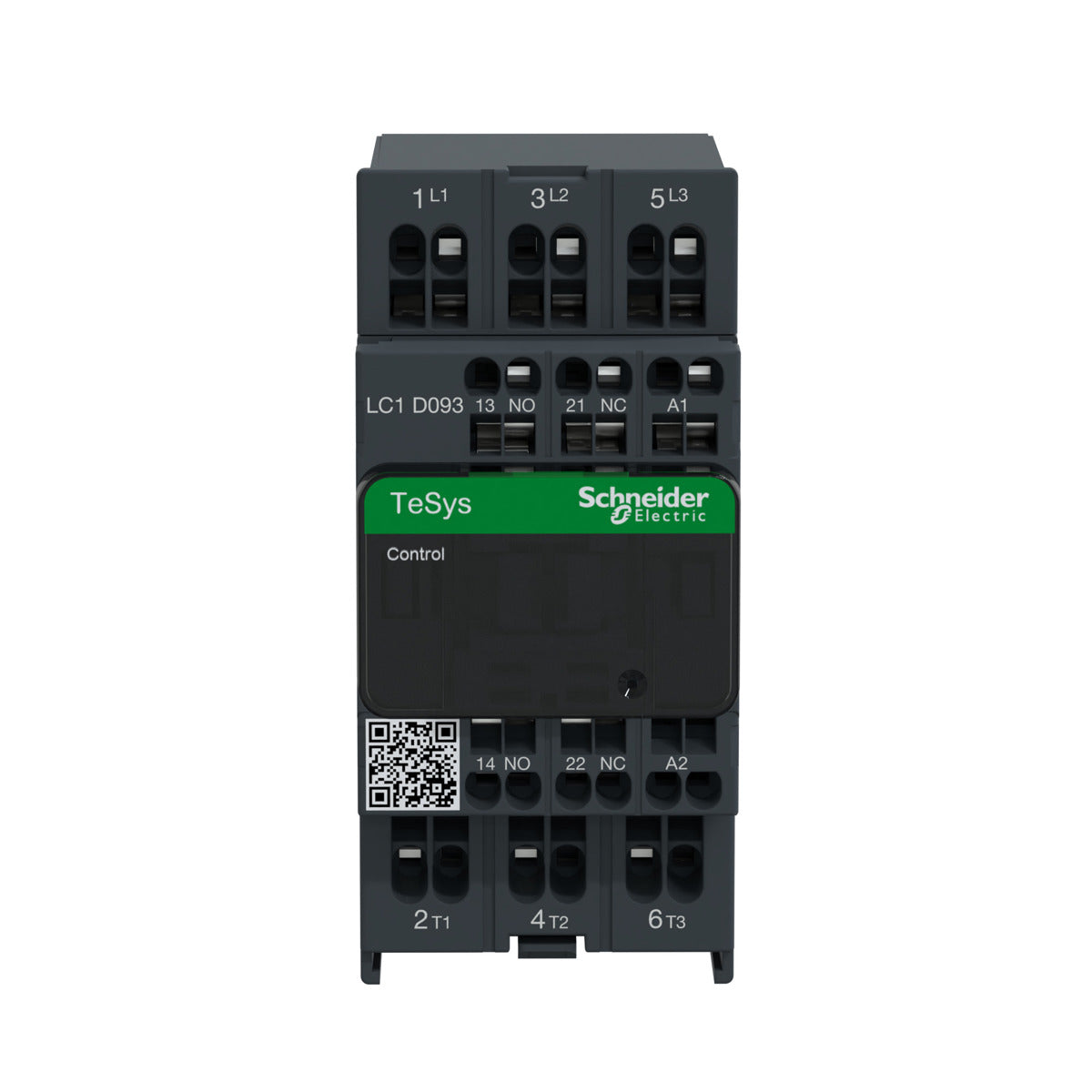

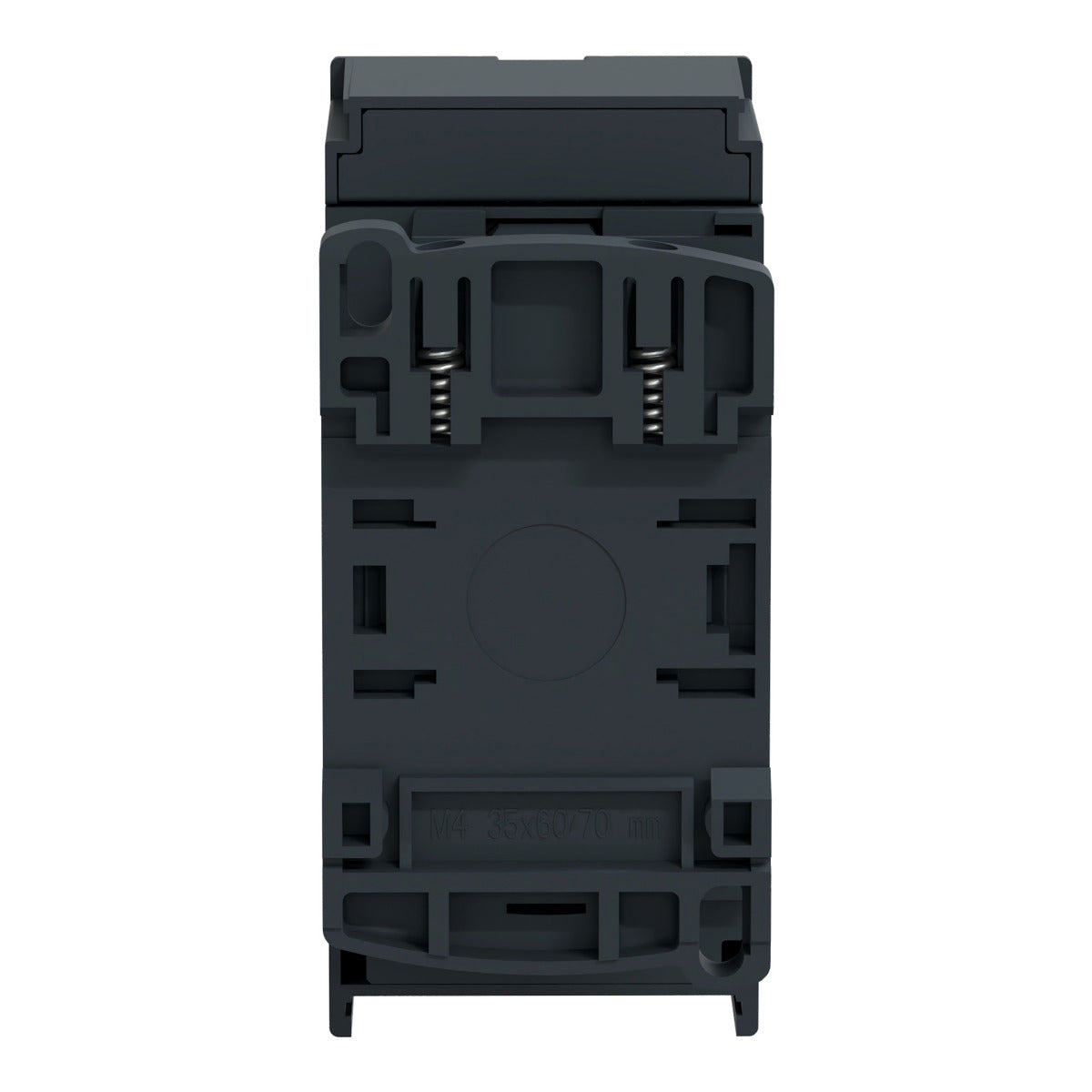

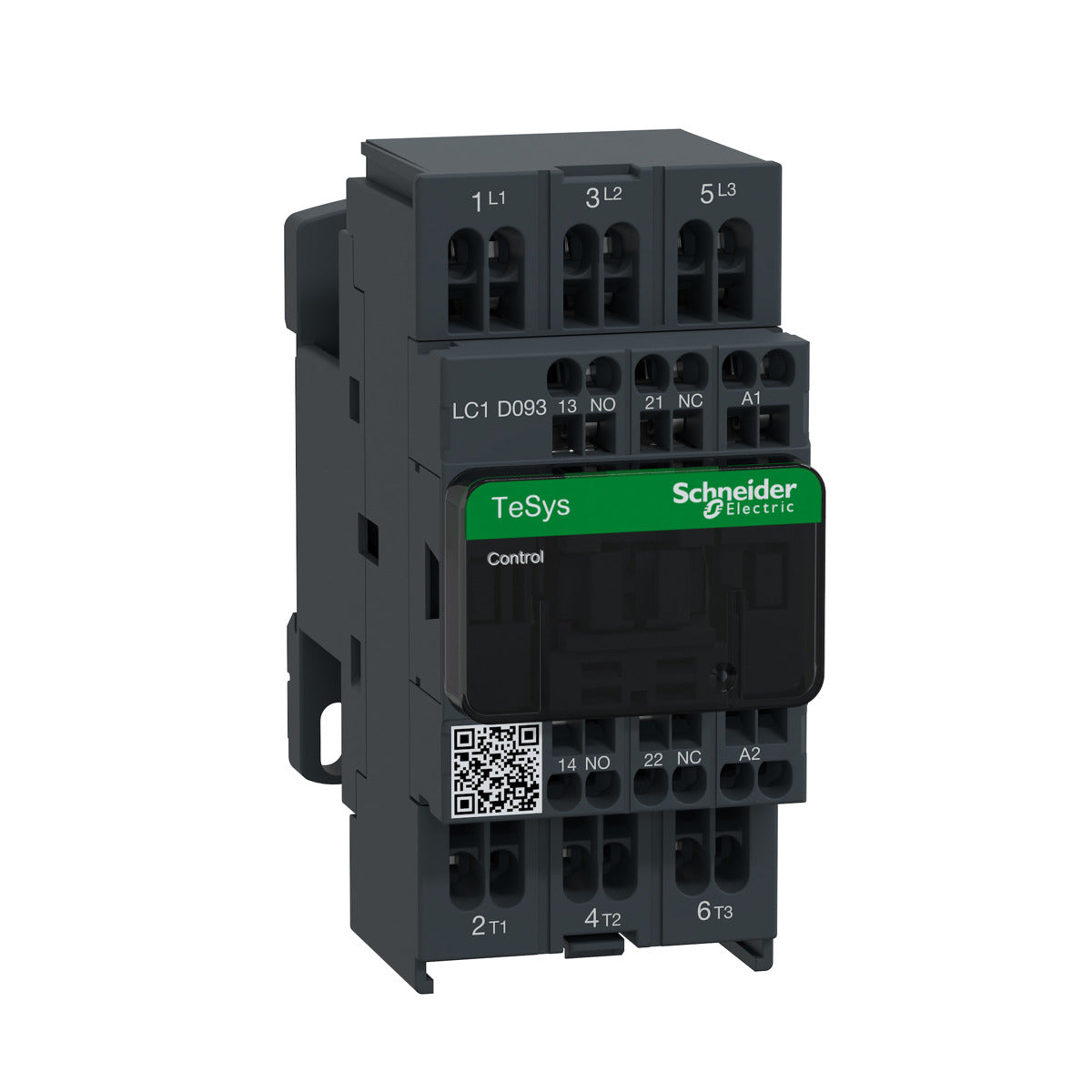

Schneider Electric LC1D093G7 IEC Contactor 9A 5HP 480VAC 3-Pole

Product Description

The Schneider Electric LC1D093G7 is a 3-phase, 3-pole IEC contactor designed for motor control and resistive load applications. With a current rating of 9A and a 120VAC coil, it is suitable for various demanding environments.

• Designed for motor control
• Rated for 9A and operates at 120VAC
• Compact and robust design

Product Highlights

This 3-pole contactor is optimized for efficiency and durability. It offers versatile control with its auxiliary contacts and can be integrated into complex systems with ease.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric (Square D)

Technical Specifications

• Catalog Number: LC1D093G7
• Full Load Amps-Inductive: 9
• Coil Voltage: 120 V AC 50/60 Hz
• Mounting: Rail Plate
• Operating Cycles: 25 to 400 Hz
• Special Features: Without built-in suppressor module
• Contact Configuration: 1 NO + 1 NC; 3 NO; Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
• Connection: Spring terminals
• Country of Origin: United States
• Warranty Description: Contractual Warranty:18 months
