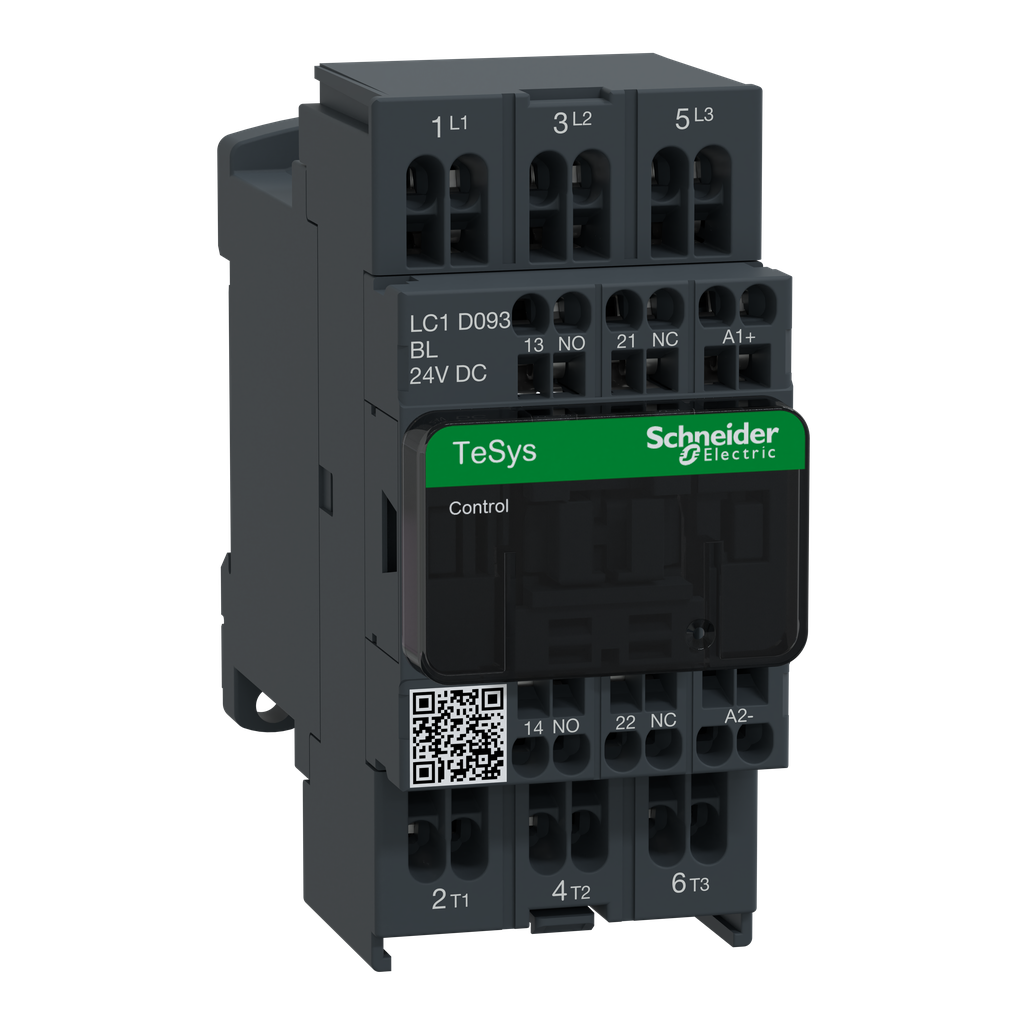

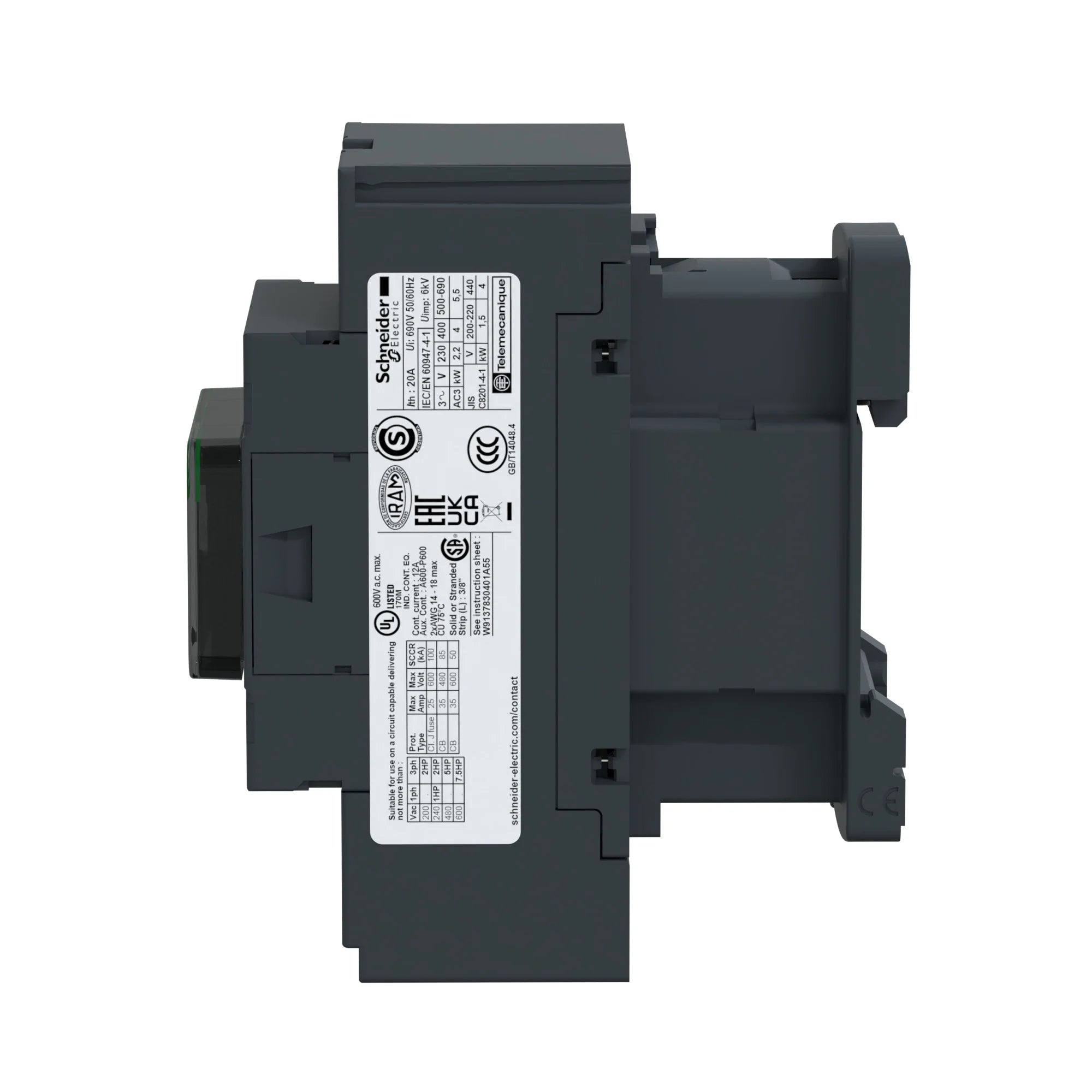

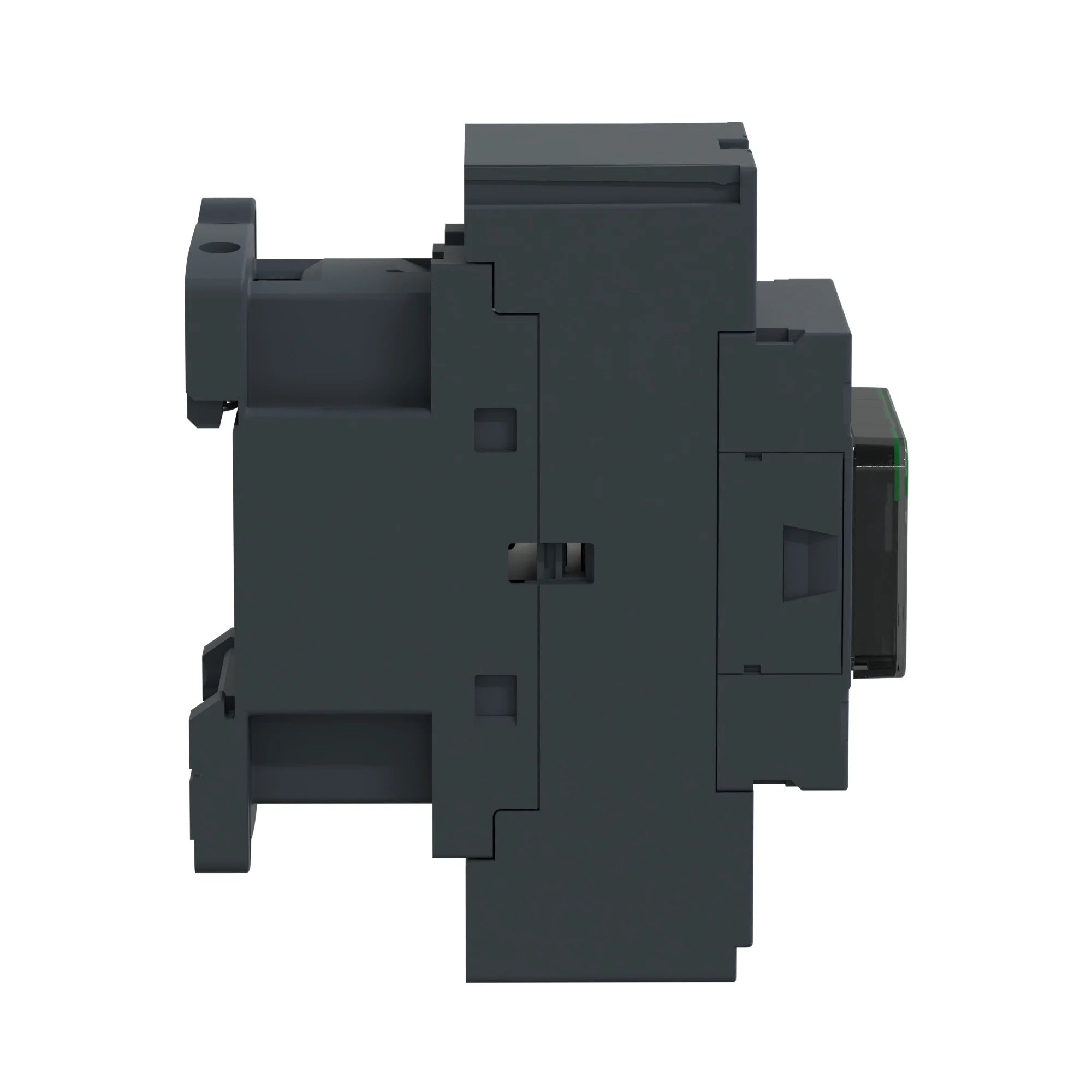

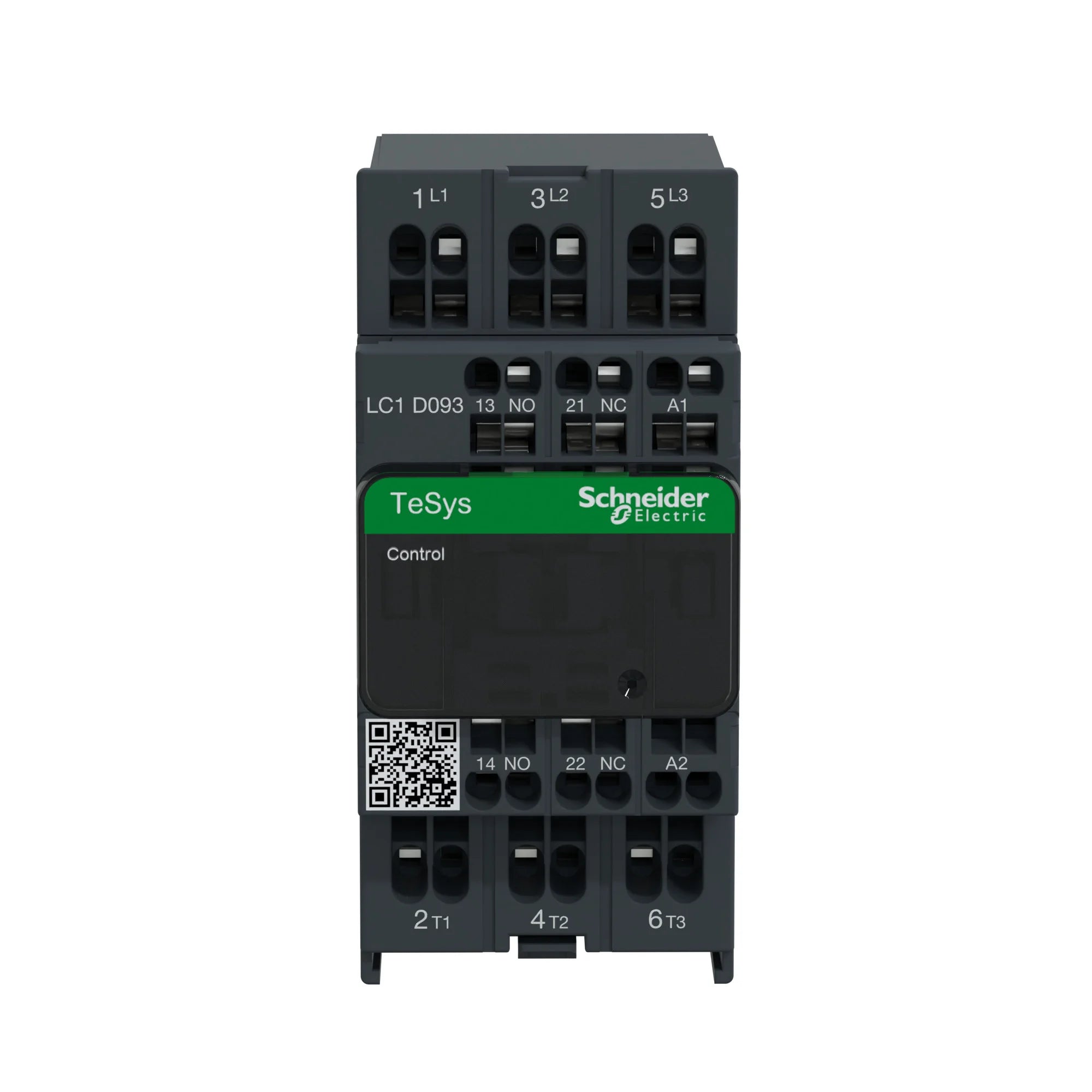

Schneider Electric LC1D093BL Square D 600 VAC 9 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Product Description

The Schneider Electric LC1D093BL is a full voltage non-reversing IEC contactor. This contactor is rated for nine amps and is designed for use in various motor control applications. It can be utilized for both inductive and resistive loads, making it suitable for a wide range of industrial applications.

• 3-pole design with one normally open and one normally closed auxiliary contact.
• Rated for multiple horsepower loads across various voltages.
• Coil voltage of 24 VDC with built-in transient suppressor.

Product Highlights

This product integrates seamlessly into control systems, allowing for efficient motor starter creation. It is designed for robustness and reliability in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LC1D093BL
• Voltage Rating: 600 VAC
• Current Rating: 9 A
• HP Ratings: 2 HP at 200 to 208 VAC, 2 HP at 240 VAC, 5 HP at 480 VAC, 7.5 HP at 600 VAC (three-phase)
• Weight: 1.06 lbs
• Dimensions: 3.15 inches tall, 1.77 inches wide, 3.74 inches deep
• Certification: UL, CSA, IEC, CCC, EAC, Marine standards
• Coil Voltage: 24 V DC
• Connection Type: Spring terminals
