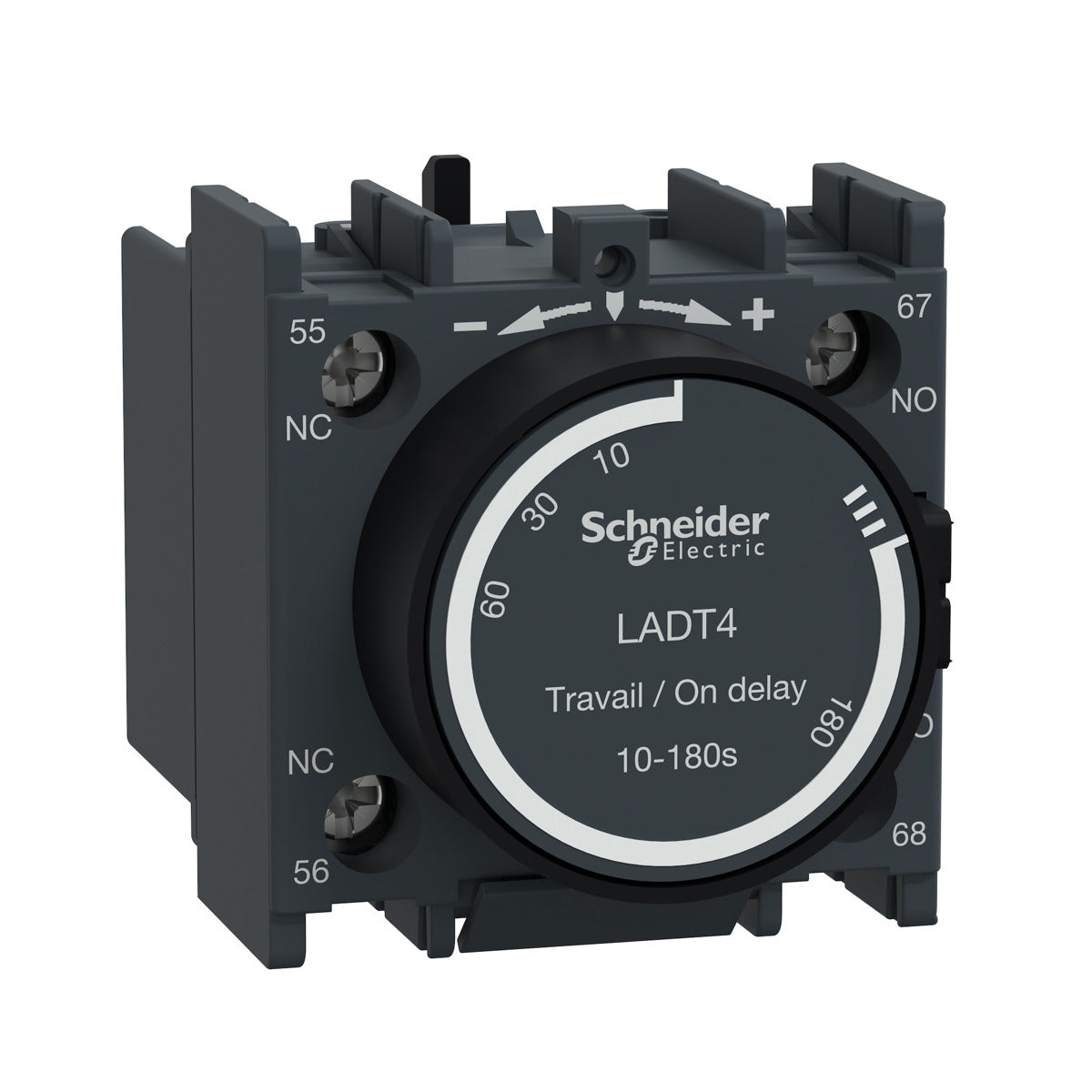

Schneider Electric LADT4 Time Delay Auxiliary Contact Block 10-180S

Product Description

Schneider Electric LADT4 is a time delay auxiliary contact block designed for contactors LC1D, LC1F, and control relays CAD. This unit features one normally open and one normally closed contact, rated for up to ten amps at six hundred ninety volts AC. The on-delay setting is adjustable from ten to one hundred eighty seconds, allowing for flexible control. It connects using screw clamp terminals for secure installation.

• Provides one normally open and one normally closed contact
• Adjustable delay setting from ten to one hundred eighty seconds
• Compatible with a range of Schneider contactors and relays

Product Highlights

This contact block is made for front mounting and is known for its reliability and durability. It complies with multiple global standards, including IEC, UL, CSA, and more, ensuring it meets strict safety and performance requirements.

Product Information

Standard Information

• Catalog Number: LADT4
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Current: 10A
• Rated Voltage: 690V AC
• Delay Range: 10-180 seconds
• Country of Origin: United States
• Warranty: 18 months
• RoHS Compliance: Yes
• GTIN: 03389110385977
• Application: Designed for use with contactors LC1D, LC1F, and control relays CAD
