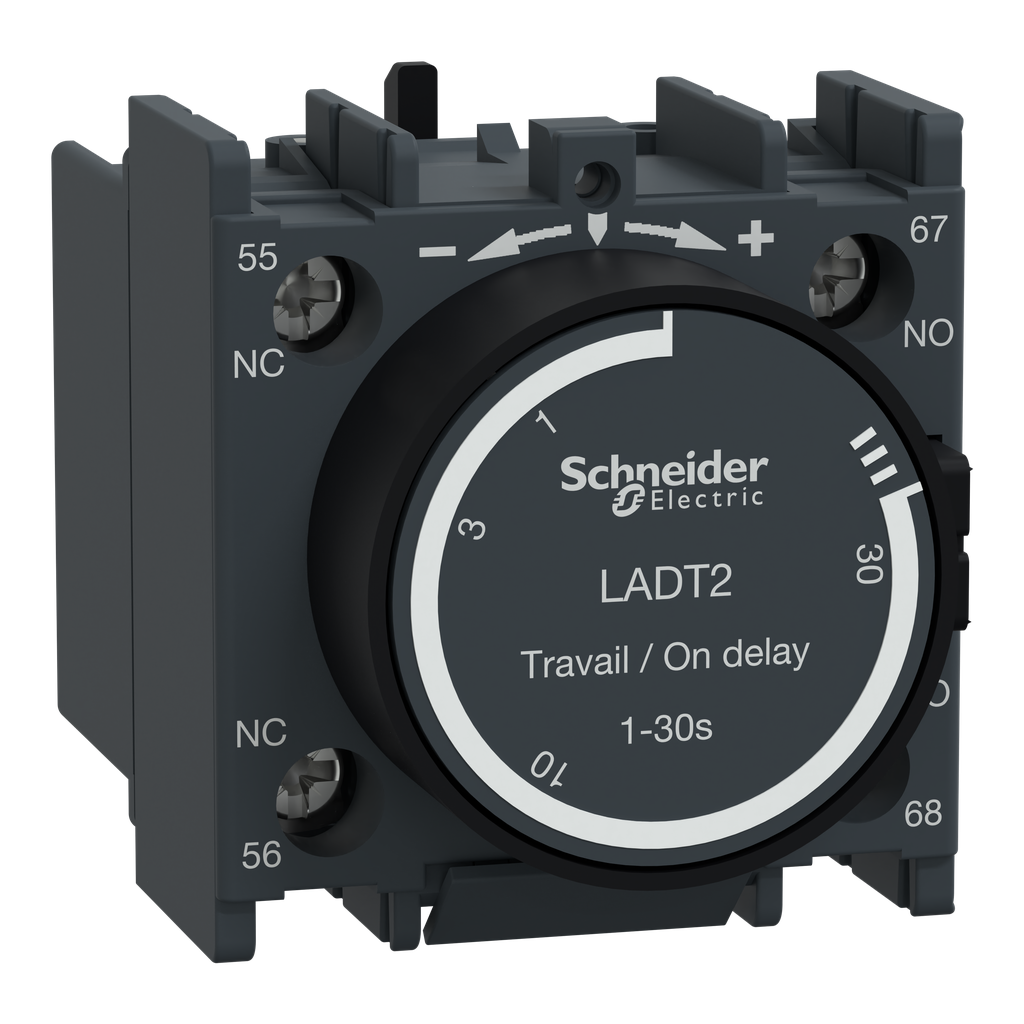

Schneider Electric LADT2 Time Delay Auxiliary Contact Block 690 VAC 1NO 1NC 0.1 to 30 Second

Product Description

Schneider Electric's LADT2 is a time delay auxiliary contact block designed for industrial control applications. This product operates at a voltage range of up to six hundred ninety volts AC and is equipped with one normally open (NO) and one normally closed (NC) contact. It is suitable for a variety of setups requiring a time delay feature between zero point one to thirty seconds. The compact design allows for easy integration into existing systems, making it an ideal choice for controlling motors and other devices.

• Voltage Rating: 690 VAC
• Time Delay Range: 0.1 to 30 seconds
• Certifications: UL, CSA, GOST, and more

Product Highlights

The LADT2 offers quick setup and reliable performance in time-sensitive applications. Its accessories make it adaptable for various use cases, ensuring compliance with many international standards.

Product Information

Standard Information

• Catalog Number: LADT2
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Time delay auxiliary contact block
• Dimensions: 2.4 in (length) x 1.9 in (width) x 1.88 in (height)
• Weight: 0.17 lbs
• Coil Voltage: 690 V AC 25...400 Hz
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -5 to 60 degrees C
• Storage Temperature: -60 to 80 degrees C
• Warranty: 18 months
