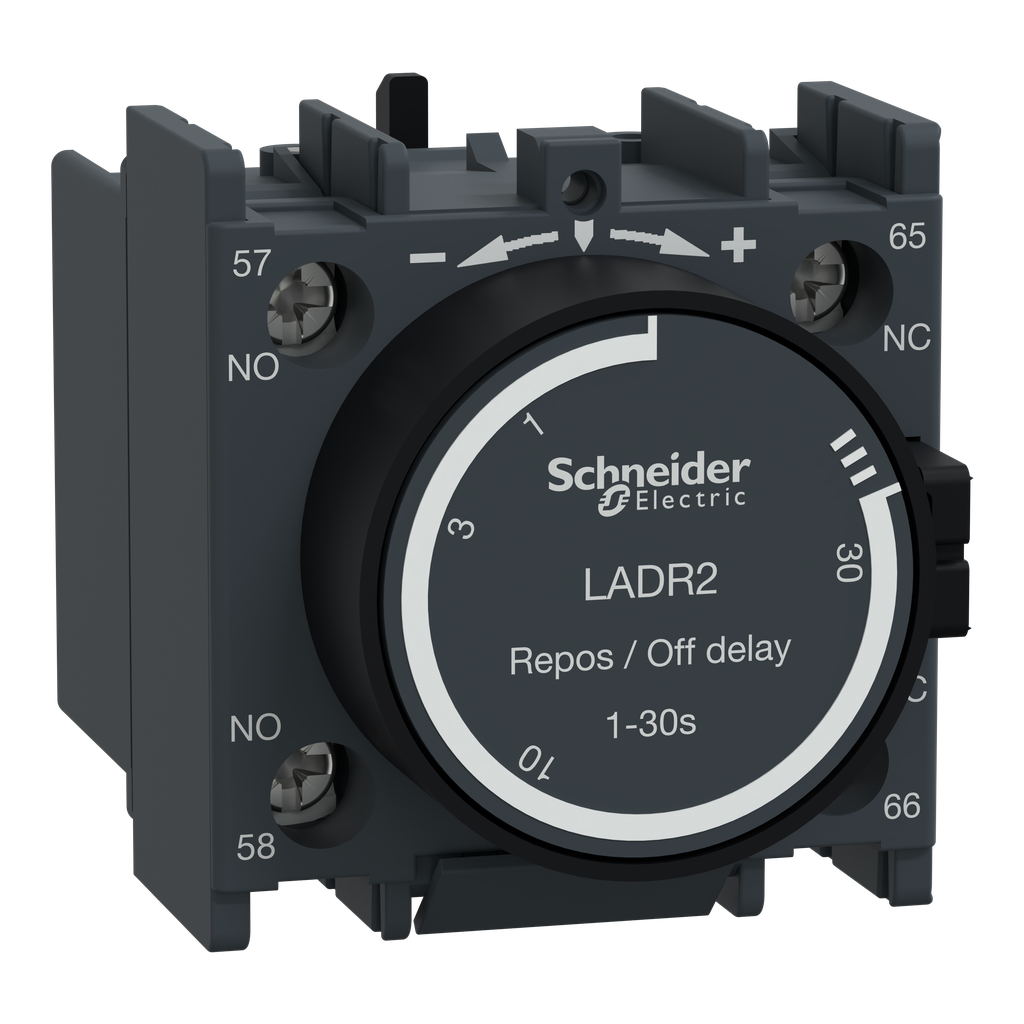

Schneider Electric LADR2 Time Delay Auxiliary Contact Block 690 VAC 1NO 1NC 1-30 Seconds

Product Description

The Schneider Electric LADR2 is a time delay auxiliary contact block designed for use with contactors LC1D, LC1F, and control relays CAD. It features one normally open and one normally closed contact rated for ten amps at six hundred ninety volts AC. This contact block has a delay setting range between one to thirty seconds and connects via screw clamp terminals. The clip-on mounting provides high reliability and durability, suitable for various applications.

• Rated for 10 Amps at 690V AC
• Off-delay setting range: 1 to 30 seconds
• Compatible with LC1D and LC1F contactors

Product Highlights

Designed for reliable performance in industrial automation, ensuring compliance with multiple standards including IEC, UL, CSA, and RoHS.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D/Schneider

Technical Specifications

• Voltage: 690 Volt
• Contact Configuration: 1 NO + 1 NC
• Dimensions: 61 mm (Depth), 44 mm (Width), 48 mm (Height)
• Operating Temperature: -5 to 60 degrees Celsius
• Storage Temperature: -60 to 80 degrees Celsius
• Weight: 74 grams
• Standards Compliant: IEC, UL, CSA, CCC, EAC
• Country of Origin: France
• Warranty Length: 18 months
