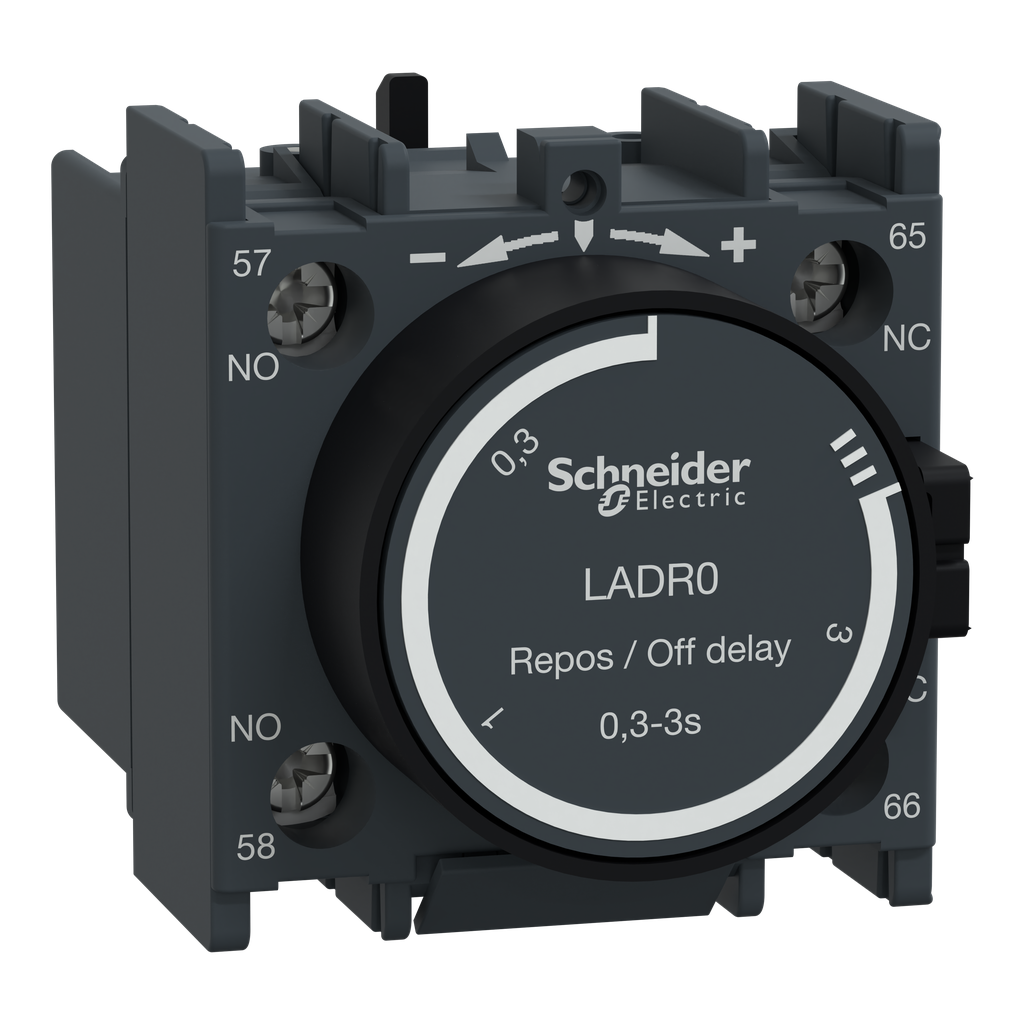

Schneider Electric LADR0 Time Delay Auxiliary Contact Block 690 VAC 1NO 1NC 0.1 to 3 Seconds

Product Description

LADR0 is a Schneider Electric time delay auxiliary contact block designed for TeSys D and TeSys F contactors. This front mounting device features one normally open (NO) contact and one normally closed (NC) contact, rated for ten amps at six hundred ninety volts AC. It has a versatile off-delay time setting that ranges from zero point one to three seconds. The LADR0 is easy to mount using a clip-on mechanism, enhancing reliability and durability for various applications.

• One normally open (NO) and one normally closed (NC) contact.
• Compatible with TeSys D and TeSys F contactors.
• Multi-standards certified (IEC, UL, CSA, CCC).

Product Highlights

The time delay function of the LADR0 makes it suitable for controlling various automated processes, particularly in industrial settings, by allowing precise timing of circuit operations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LADR0
• Voltage: 690 Volt
• Contact Rating: 10 A at 690 V AC
• Coil Voltage: 690 V AC 25...400 HZ
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -5 to 60 degrees C
• Depth: 61 mm
• Width: 44 mm
• Height: 48 mm
• Country of Origin: France
• Warranty Length: 18 months
