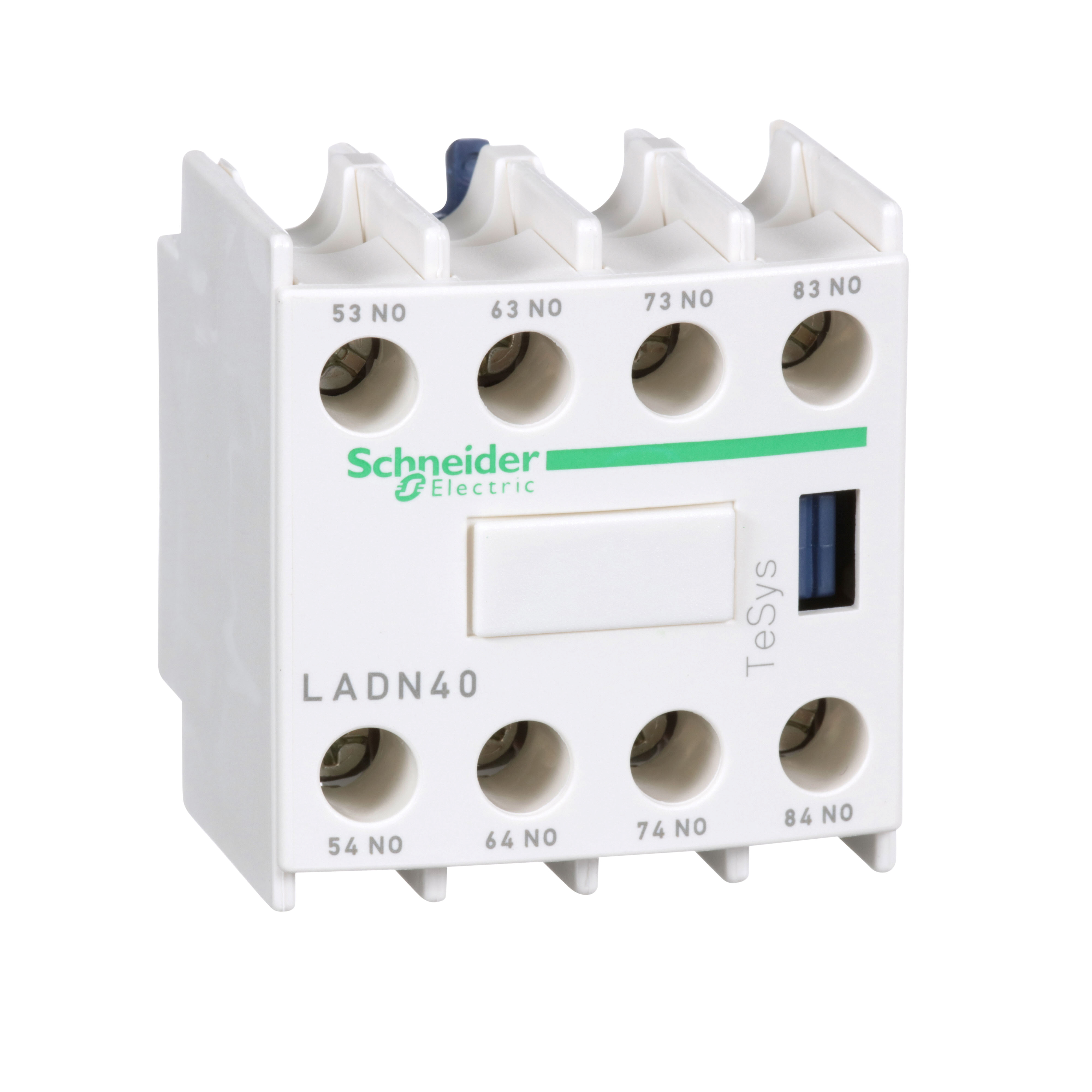

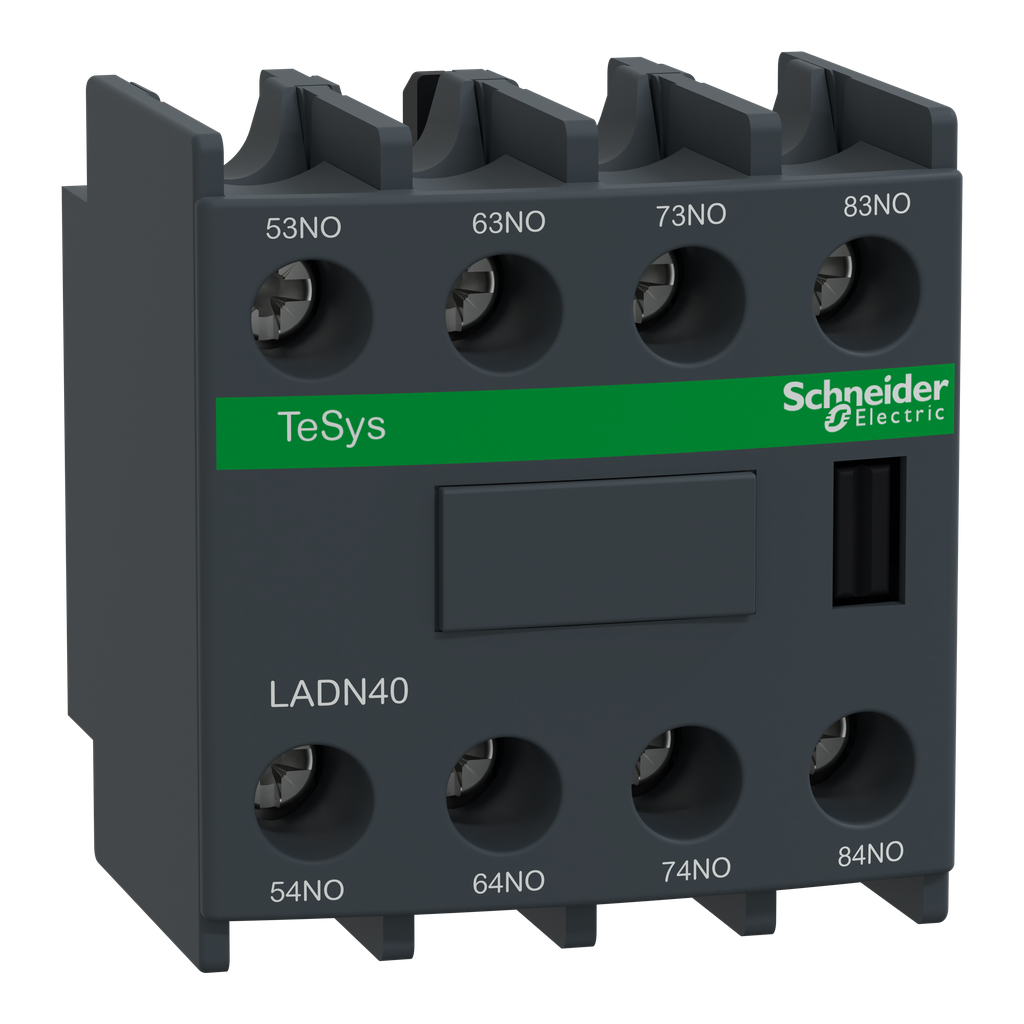

Schneider Electric LADN40 Square D 690 VAC 10 Amp 8-Pole 4NO Front Mount Screw Clamp Terminal Contactor Auxiliary Contact

Product Description

The Schneider Electric LADN40 is an auxiliary contact block designed for use in industrial applications. This product features four normally open contacts and operates at a voltage of six hundred ninety volts. It mounts easily on top of Schneider Electric contactors, ranging from nine amps to one hundred fifty amps. This contactor is part of the TeSys D series and is engineered for seamless integration into control systems, making it a reliable choice for creating motor starters.

• Four normally open contacts
• Designed for use with Schneider Electric contactors
• Compatible with a range of applications

Product Highlights

The LADN40 provides additional control and signaling capabilities, which makes it ideal for industrial electrical systems.

Product Information

Standard Information

• Catalog Number: LADN40
• Brand: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Contact Rating: 10 Amp
• Height: 48 mm
• Width: 44 mm
• Depth: 42 mm
• Weight: 0.11 lb
• Country of Origin: France
• Warranty Length: 18 months
