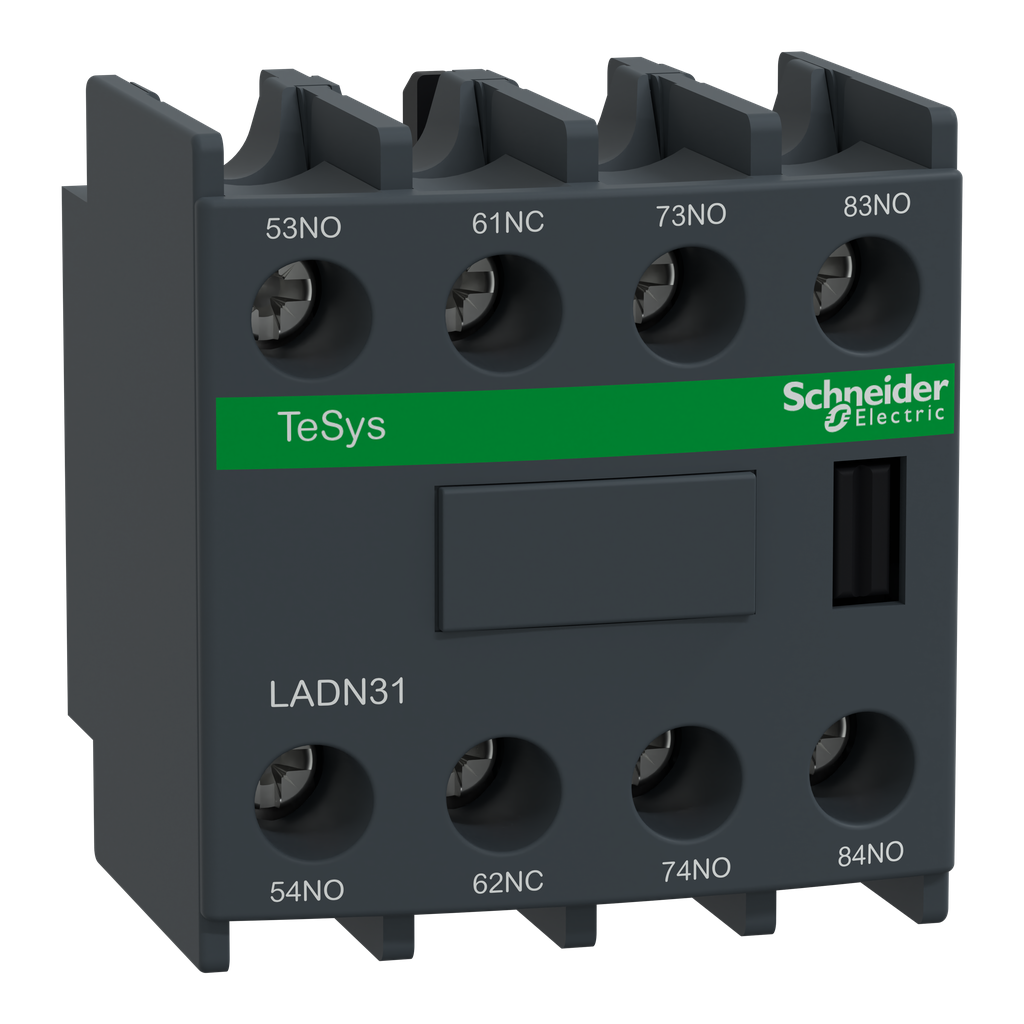

Schneider Electric LADN31 Auxiliary Contact Block 690VAC 10A

Product Description

The Schneider Electric LADN31 Auxiliary Contact Block is an essential component in electrical circuit control, compatible with TeSys D contactors for motors ranging from 9 amp to 150 amp. This product features a front-mounting design with screw clamp terminals for secure connections.

• Provides three normally open (NO) and one normally closed (NC) configurations for flexible circuit control
• Compact and robust design ensures durability and easy integration into existing systems
• Rated for up to 690 VAC and 10 Amps, suitable for a diverse range of industrial applications

Product Highlights

This auxiliary contact block is designed to extend the functionality of motor contactors by providing additional contacts for control circuits. It is widely recognized for its reliability and compliance with numerous international standards, including UL, CSA, and CCC.

Product Information

Standard Information

• Product Type: Auxiliary contact block
• Brand: Schneider Electric
• Model: TeSys D; TeSys Deca

Technical Specifications

• Voltage: 690 Volt
• Contact Rating: 10 Amps
• Number of Poles: 8
• Temperature Range: Operating at -5 to 60 degrees Celsius, Storage at -60 to 80 degrees Celsius
• Certifications: UL, CSA, CCC, EAC, UKCA, CB
• Product Dimensions: Length: 1.65 inches, Width: 44 mm, Height: 48 mm
• Color: Gray
