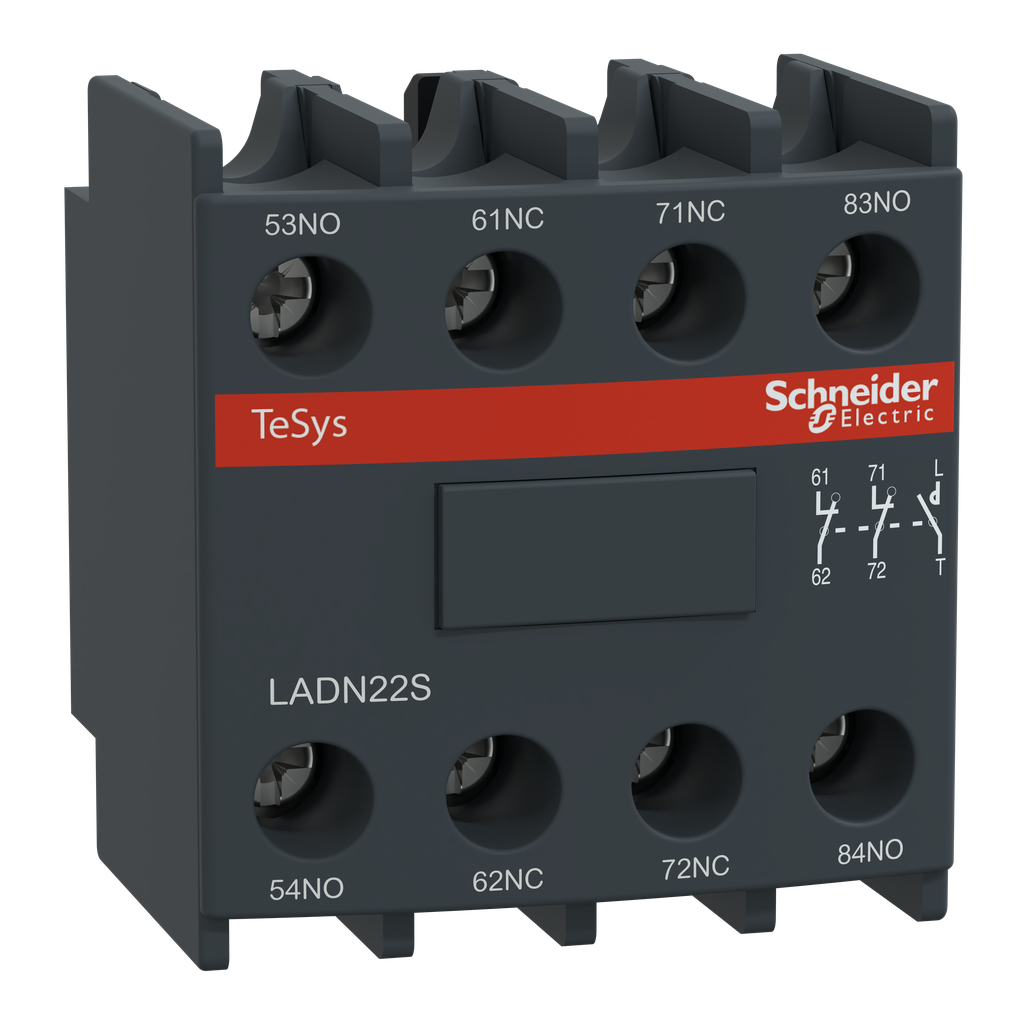

Schneider Electric LADN22S Auxiliary Contact Block 2NO 2NC Front Mounting

Product Description

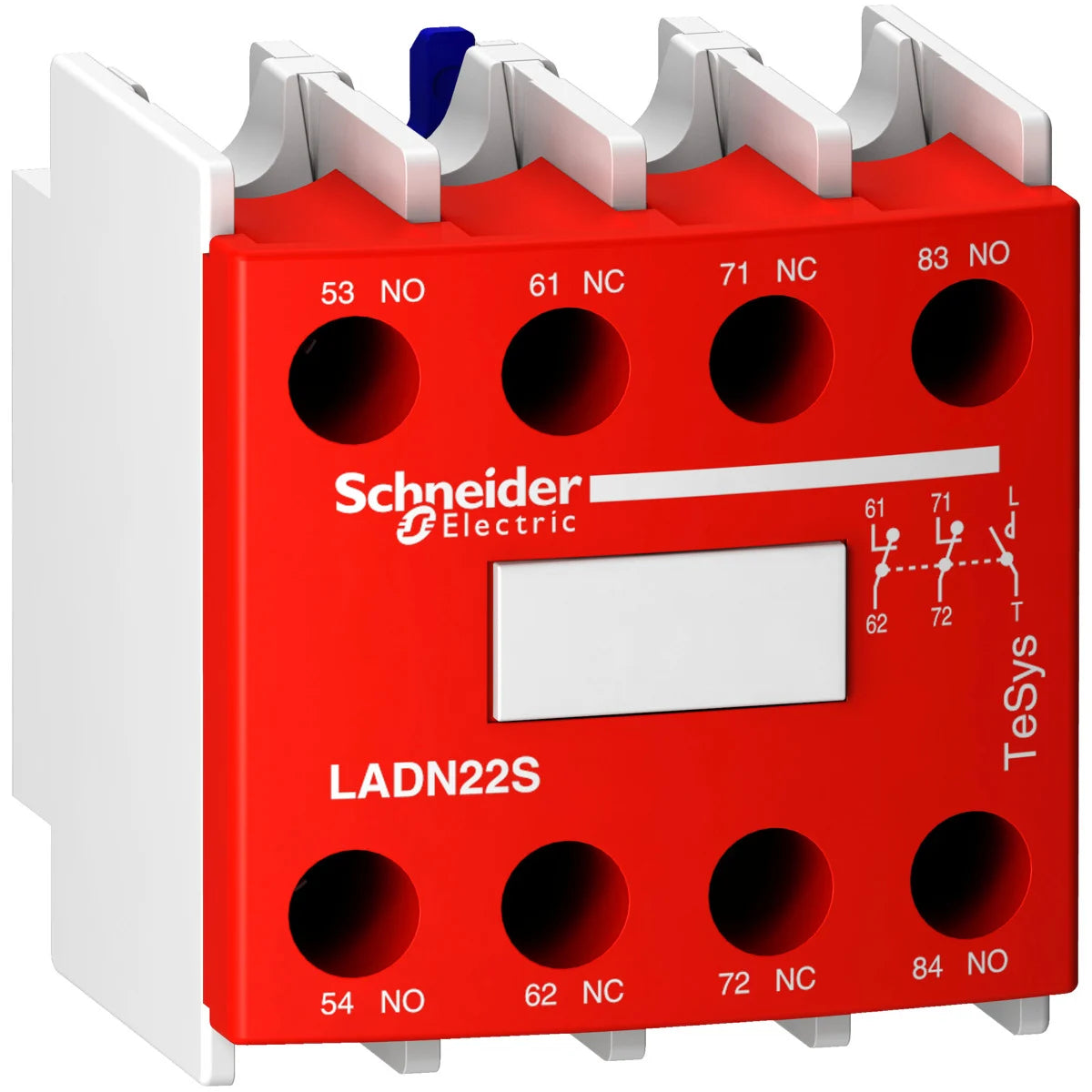

The Schneider Electric LADN22S is an auxiliary contact block designed for TeSys D and TeSys F contactors. This front mounting block features two normally open (NO) and two normally closed (NC) instantaneous contacts. It can handle up to ten amps and six hundred ninety volts AC. The prominent red face is utilized for safety chain indication. It is easy to install through a clip-on mechanism which ensures high reliability and durability.

• Two normally open and two normally closed contacts
• Rated at ten amps and six hundred ninety volts AC
• Compatible with TeSys D and TeSys F contactors

Product Highlights

This product is compliant with multiple international standards, including IEC, UL, and CSA, making it suitable for global use. Its design allows for several millions of operating cycles under specified conditions, ensuring long-life performance. The LADN22S is also Green Premium compliant, adhering to RoHS and Reach practices.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LADN22S
• Contact Configuration: 2 NO + 2 NC
• Voltage Rating: 690 Volt
• Depth: 1.65 inches
• Width: 1.73 inches
• Height: 1.89 inches
• Weight: 0.11 lb
• Country of Origin: France
• Certifications: CB, CCC, CSA, EAC, UKCA, UL
