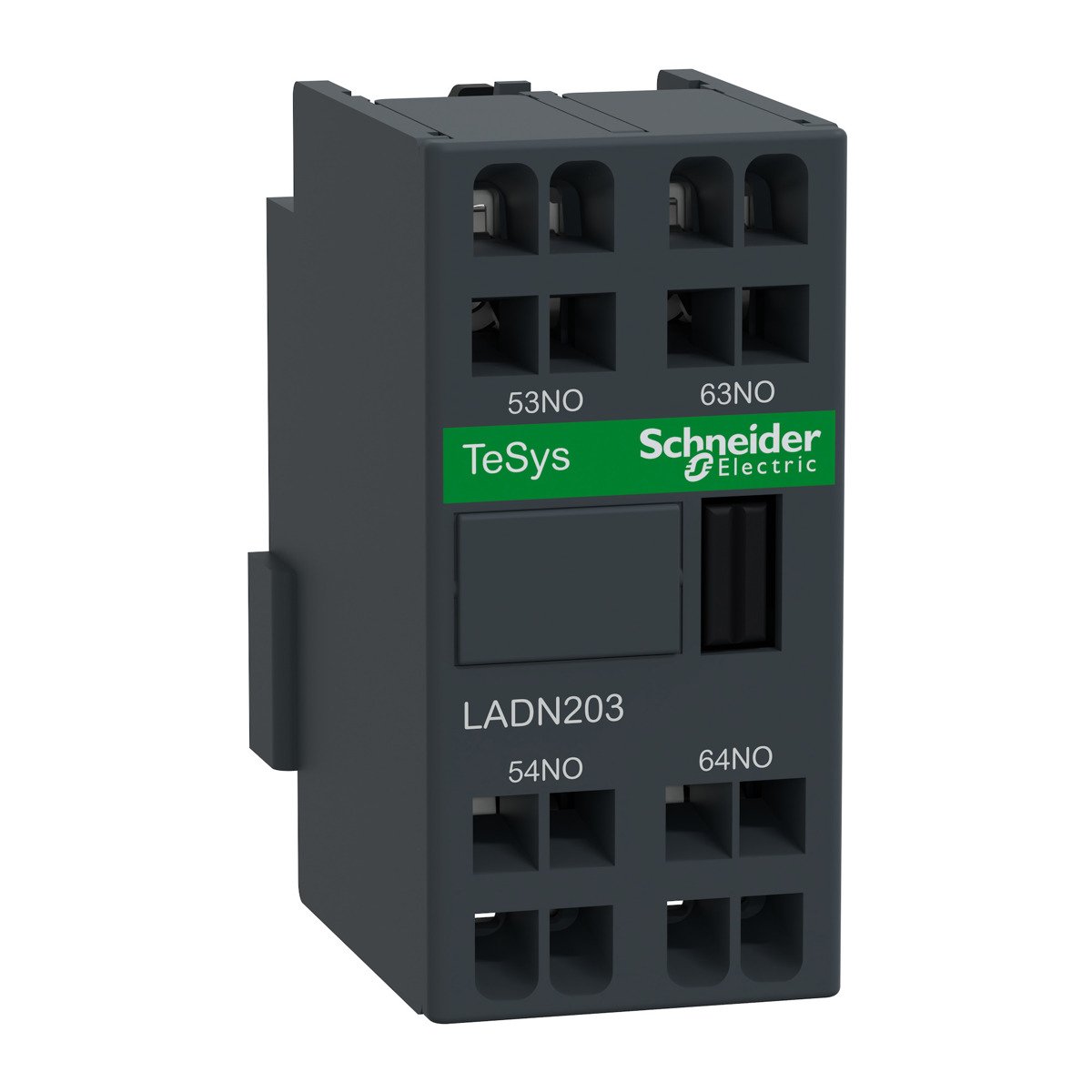

Schneider Electric LADN203 600 Volt 10 Amp 2NO Spring Terminal Auxiliary Contact Block

Product Description

The Schneider Electric LADN203 is a 600 Volt, 10 Amp 2NO Spring Terminal Auxiliary Contact Block. This component integrates easily into control systems. It is designed for use in motor starters across various applications. The LADN203 is compatible with TeSys D contactors and control relays. It features two normally open contacts for seamless operation.

• Secure spring terminal connections
• UL listed for safety compliance
• Space-efficient design with compact dimensions

Product Highlights

The LADN203 provides reliability and ease of installation. It is suitable for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LADN203
• Product Type: Auxiliary contact block
• Voltage Rating: 690 Volt
• Contact Configuration: 2 NO
• Height: 1.89 inches
• Width: 1.02 inches
• Depth: 1.65 inches
• Operating Temperature: -40 to 70 degrees Celsius
• Storage Temperature: -60 to 80 degrees Celsius
• Warranty Length: 18 months
• Country of Origin: France
