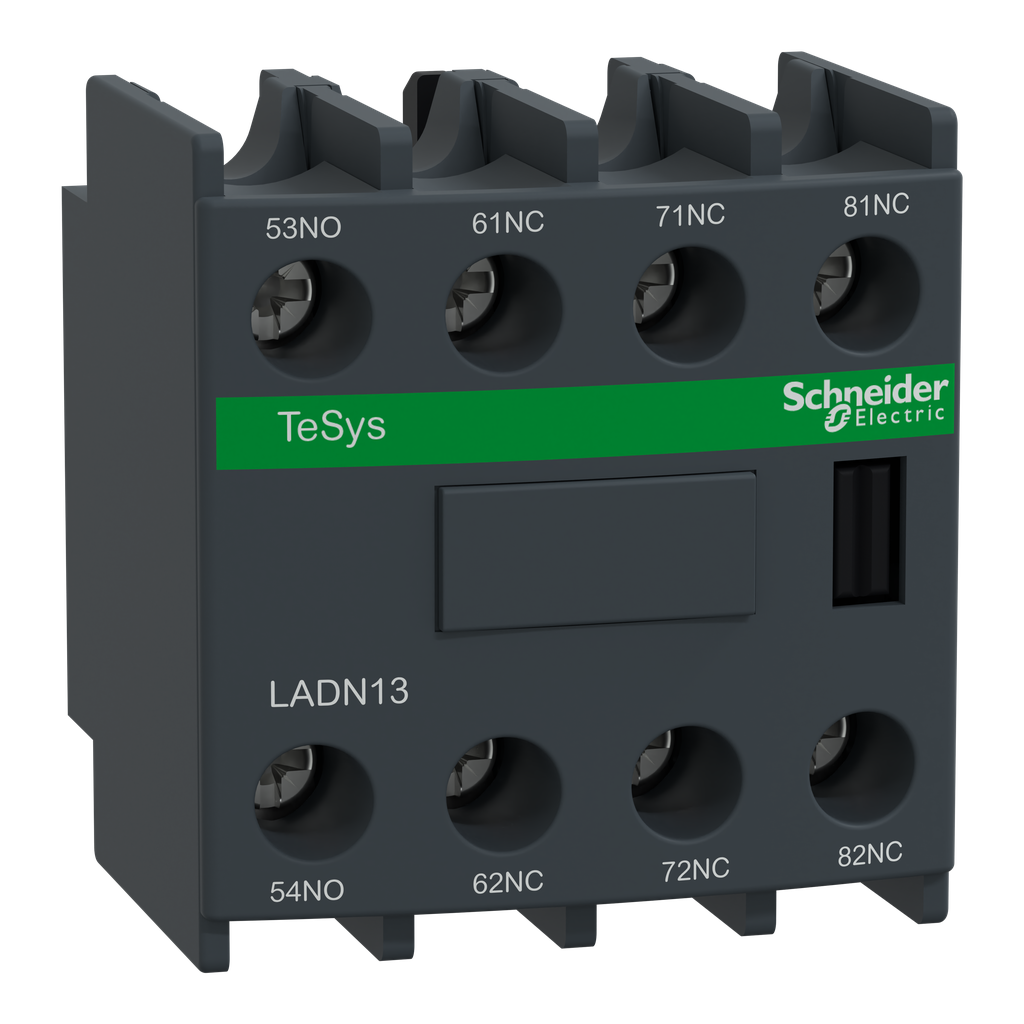

Schneider Electric LADN13 Auxiliary Contact Block 690 VAC 10 Amp 1NO 3NC

Product Description

The Schneider Electric LADN13 is an auxiliary contact block designed for use with TeSys D and TeSys F contactors. This component features a front mount design and offers one normally open (1NO) and three normally closed (3NC) instantaneous contacts, rated for 10 Amperes at 690 Volts AC. Ideal for safety applications, it is easy to install through a clip-on mechanism and ensures high reliability over time.

• Front mounting design for easy installation
• Includes 1NO + 3NC contacts for various applications
• Certified for multiple standards including IEC, UL, and CSA

Product Highlights

This product is well-suited for controlling safety systems, thanks to its NC certified mirror contacts. The LADN13 ensures robust performance with millions of operating cycles, depending on conditions. It complies with Green Premium standards, making it environmentally friendly.

Product Information

Standard Information

• Catalog Number: LADN13
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Width: 44 mm
• Height: 48 mm
• Depth: 42 mm
• Weight: 0.11 lb
• Operating Temperature: -5 to 60 degrees C
• Warranty Length: 18 months
• Country of Origin: France
