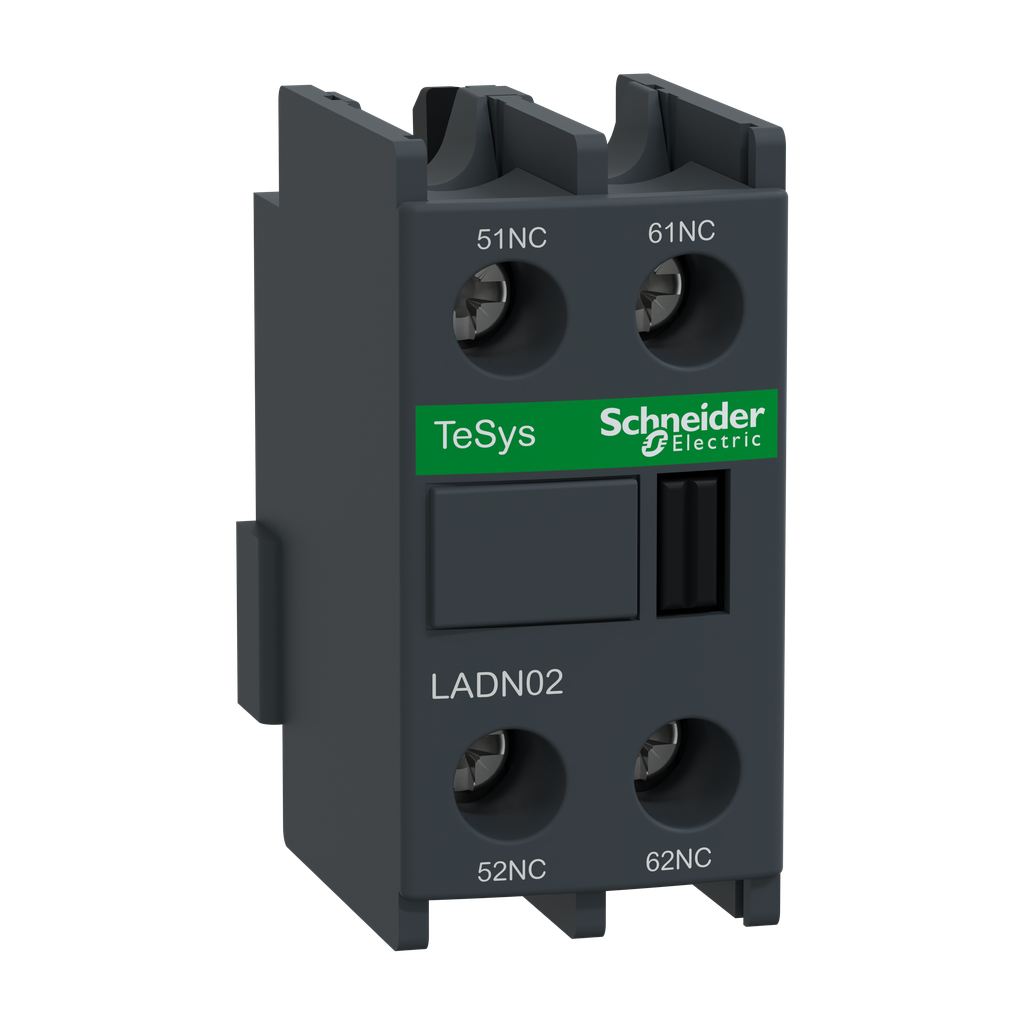

Schneider Electric LADN02 Auxiliary Contact Block 10 Amp 690V AC

Product Description

The Schneider Electric LADN02 Auxiliary Contact Block is a reliable and robust component designed for TeSys D and TeSys F contactors. It features 2 normally closed (NC) instantaneous contacts rated up to 10 amps and 690 volts AC. This contact block is front-mounted and suitable for safety applications, offering high reliability and durability with minimal maintenance. It's easy to install with a clip-on mechanism, making it ideal for various industrial applications.

• 2 normally closed contacts
• Rated up to 10 amps and 690 volts AC
• Clip-on front mounting

Product Highlights

Designed for use with TeSys D and TeSys F contactors, this auxiliary contact block provides high electrical durability and is certified for global standards, including IEC, UL, CSA, CCC, EAC, and Marine standards. It is also Green Premium compliant, meeting RoHS and REACH regulations for environmental safety.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LADN02
• Category: Auxiliary Contacts

Technical Specifications

• Contacts: 2 NC
• Voltage: 690V AC
• Amps: 10
• Mounting: Front
• Width: 26 mm
• Height: 48 mm
• Depth: 42 mm
• Certifications: IEC, UL, CSA, CCC, EAC, Marine
