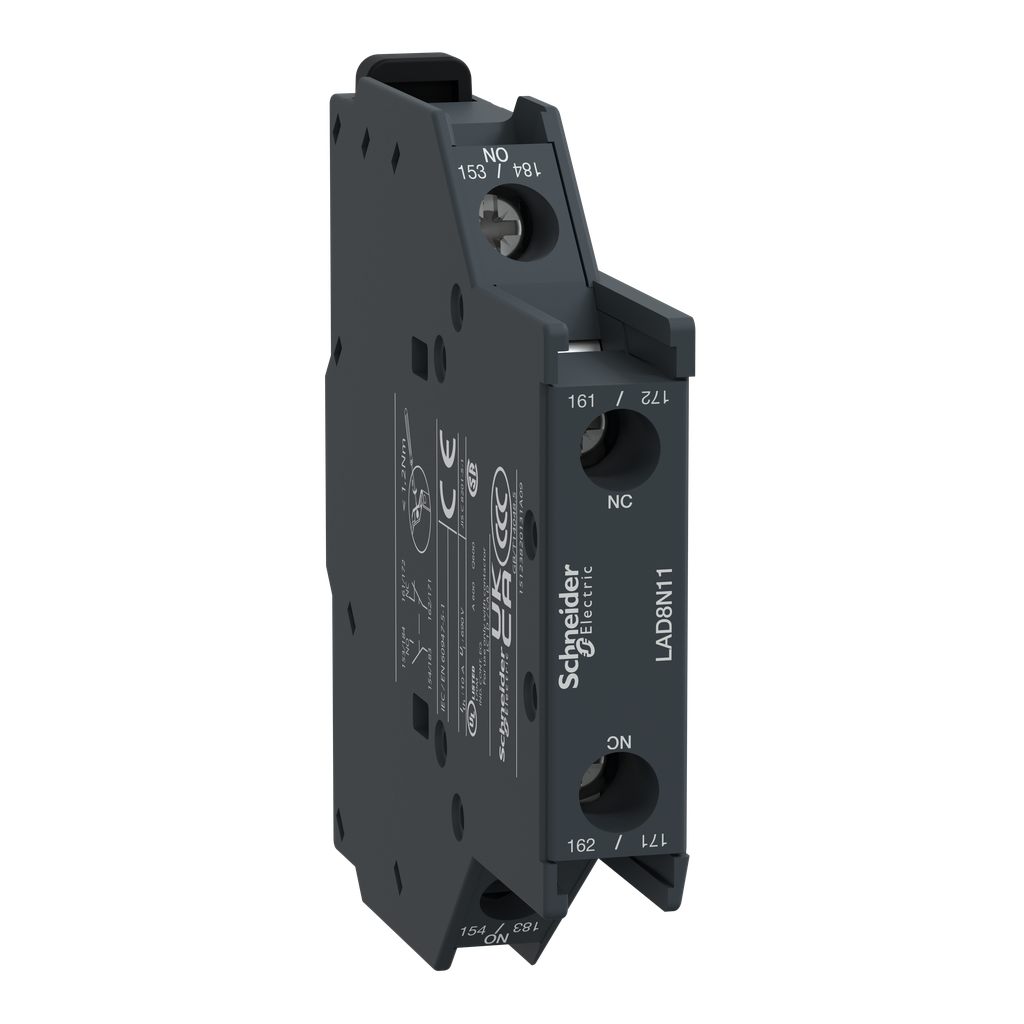

Schneider Electric LAD8N11 600 Volt 10 Amp 1NO 1NC Screw Clamp Terminal Auxiliary Contact Block

Product Description

The Schneider Electric LAD8N11 Auxiliary Contact Block is a key component for controlling electrical circuits. Featuring 1 normally open and 1 normally closed contact, this block supports control circuits in various motor starters. Designed by Schneider Electric, the LAD8N11 ensures reliable performance and integration into control systems.

• Side-mount design for easy installation
• Suitable for use with contactors rated from 9 to 150 amps
• Supports complex control schemes with 1 NO and 1 NC contacts

Product Highlights

Screw clamp terminals make connections secure and simple. The LAD8N11 is compact, aiding in space management within control panels. This contact block is suitable for both industrial and commercial applications.

Product Information

Standard Information

• Catalog Number: LAD8N11
• Manufacturer: Schneider Electric
• Brand: Schneider Electric
• Country of Origin: Indonesia

Technical Specifications

• Depth: 76 mm
• Width: 12.5 mm
• Height: 76 mm
• Voltage: 690 Volt AC
• Contact Rating: 600V MAX
• Amps: 10
• Contact Configuration: 1 NO + 1 NC
• Standard: UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN/IEC 60947-5-1, CB, CCC, EAC, UKCA
